Mafell KSS300 MaxiMAX Mitre Rail Saw in T-MAX 916702

Description

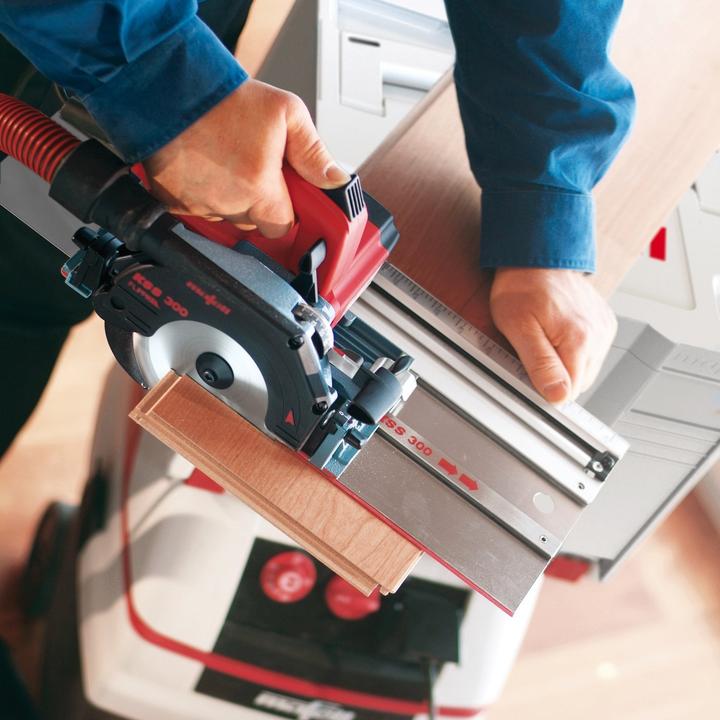

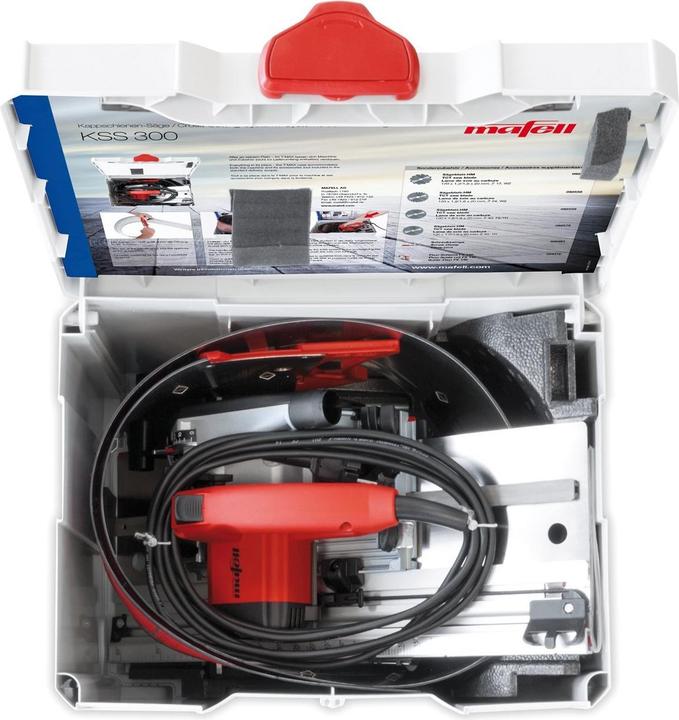

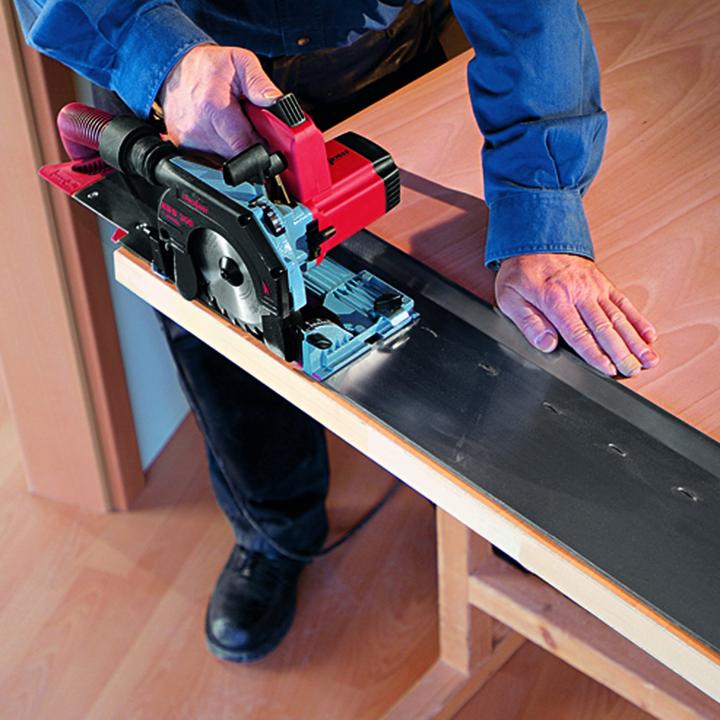

When it comes to interior construction, precision is key. That’s why the KSS 300 mitre rail saw focuses on perfect handling and all essential functions. The quick-release connection between the circular saw and the KSS rail results in a highly functional one-handed mitre rail saw for bevel and miter cuts. A retractable mechanism returns the KSS 300 to its starting position after each cut. The 42mm circular saw delivers power in all situations and remains particularly handy and lightweight at just 2.4 kg, thanks to its magnesium die-cast construction. Together with the T-MAX transport case, it forms a compact sawing system - ideal for shadow gaps, longitudinal, angled, plunge, and miter cuts, as well as freehand cuts.

Application Focus

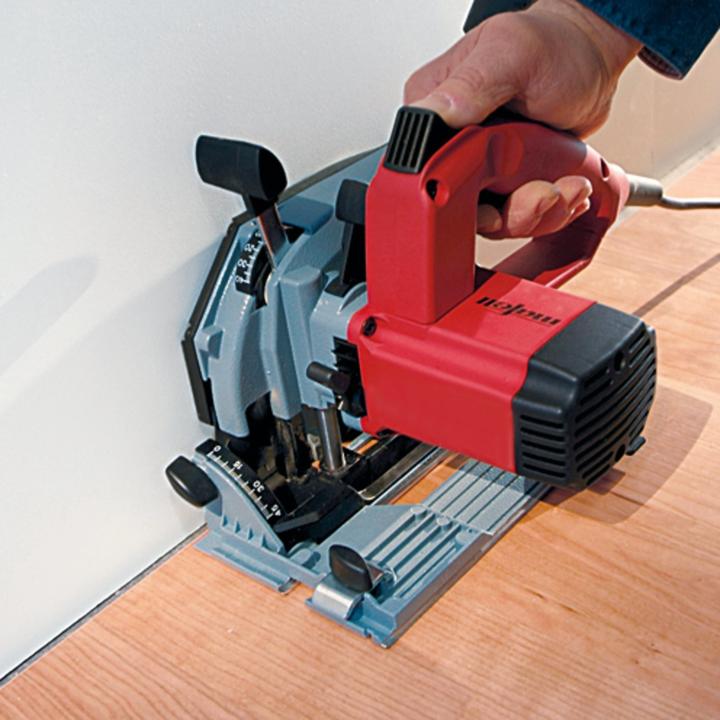

The pivot point of the KSS 300 system is located on the side at the lower edge of the rail - this means there is only one tear indicator, regardless of the angle setting, with or without the rail. The circular saw can be easily detached from the mitre rail at the push of a button - separately, it is equipped with all functions of the MAFELL KSP series. A fixed stop pin and an adjustable stop with a large scale allow for precise, angle-accurate miter cuts.

Technical Data
Nominal power: 900 W
Universal motor: 230 V / 50 Hz
Cutting depth with rail at 0°: 0 - 40 mm
Cutting depth with rail at 45°: 0 - 27 mm
Cutting depth without rail at 0°: 0 - 42 mm
Swivel range: 0 - 45 °
Cutting length: 300 mm
Miter cuts: -120 °
Nominal no-load speed: 8800 rpm

Scope of Delivery
Flexi rail FX 140, 1.4 m with splinter guard
Saw blade HM 120 x 1.2/1.8 x 20 mm, Z 40, FZ/TR, for universal use in wood
Parallel stop
Dust extraction adapter
Hex key 4 mm
Connection cable 4 m.
