Mersen Fuse base
63 APrice in EUR including VAT
Free shipping starting at 30,–

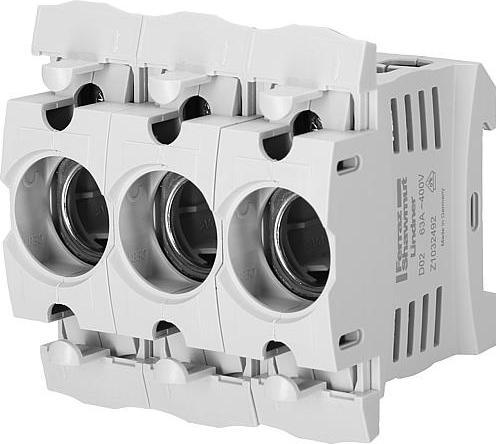

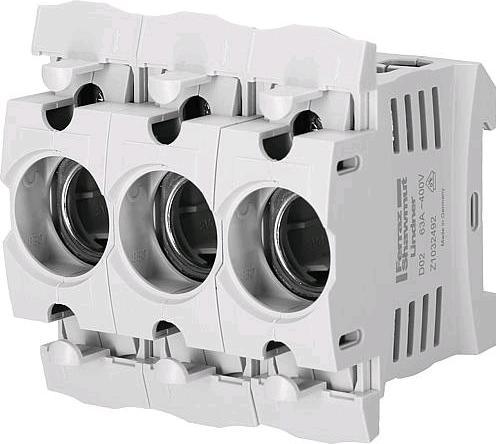

Mersen Fuse Base Neozed 04735.000000
Manufacturer: Mersen
Description: Fuse base Neozed D02 63A/230/440V 3p
Type: 04735.000000
Number of poles: 3
Size: D02
Material: Plastic
Version with cover: yes
Mounting type: Snap fastening
Rated voltage: 400 V
Rated current: 63 A
The INNOZED is a fuse base for D0 fuse inserts of sizes D01 and D02, designed for quick installation on DIN rails in fuse and distribution boxes in residential, industrial, and commercial settings. INNOZED is equipped with an integrated touch protection against lethal electric shock in the form of a base cover. The use of comb rails allows for visual inspection of wire positioning. A wiring rail in the lower part of the terminal facilitates wire insertion while also enabling visual inspection of the connection points. INNOZED allows for flexible connection configurations. The connection terminals feature two separate chambers, allowing for the simultaneous connection of different wires. Conductors with varying cross-sections between 4 mm² and 35 mm² or two identical conductors with a cross-section of up to 16 mm² can be used.
IEC/EN 60 269-3, VDE 0636-6.
Item number | 20219999 |
Material group | Plastic |
Material | Plastic |
Fuse type | Neozed fuse |
Nominal current | 63 A |
breaking capacity | 50000 A |
Nominal voltage | 400 V |
voltage type | AC/DC |
Country of origin | Austria, Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 3 pcs. |
Width | 90 mm |
Length | 250 mm |
Height | 80 mm |
