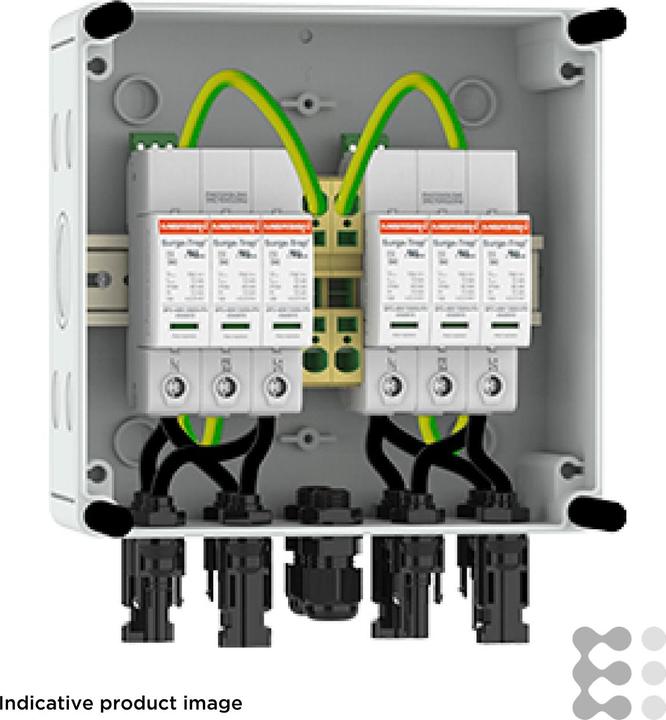

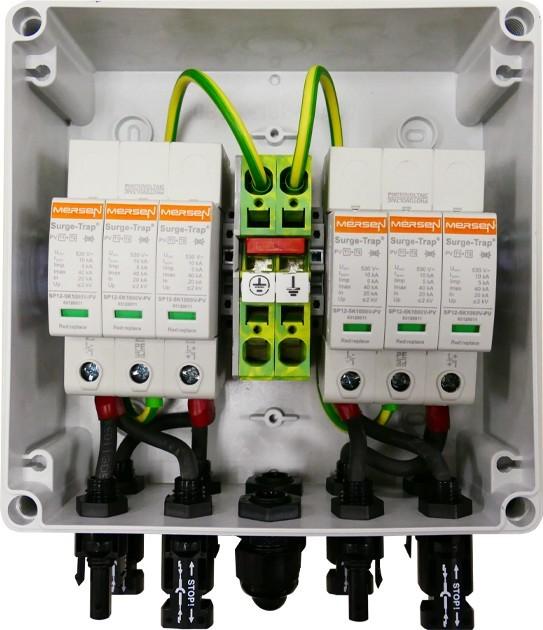

Mersen Photovoltaic String Box 2 PVBT12-1000V-BH-213

Manufacturer: Mersen
Designation: Photovoltaic String Box 2 MPP 1000V
Type: PVBT12-1000V-BH-213
Mounting beside cabinet: no
Mounting above cabinet: no
Mounting below cabinet: no
Number of poles: 6
Max. cross-section of connection cable: 16 mm²
Max. cross-section of feed cable: 16 mm²
Connection type: terminal
Protection class (IP): IP65
Height: 180 mm
Width: 182 mm
Depth: 111 mm

Mersen Photovoltaic String Box 2 PVBT12-1000V-BH-213: further details
DC PV Junction Boxes is a series of DC photovoltaic generator connection boxes designed to protect inverters according to IEC/EN from lightning and overvoltage. The boxes are pre-installed and used in parallel with the inverters, primarily for 1000Vdc rooftop installations. The boxes are available in different configurations, e.g., with Type 1+2 or Type 2 surge protectors, cable glands, or MC4 connectors, and for varying numbers of MPPTs and strings.
