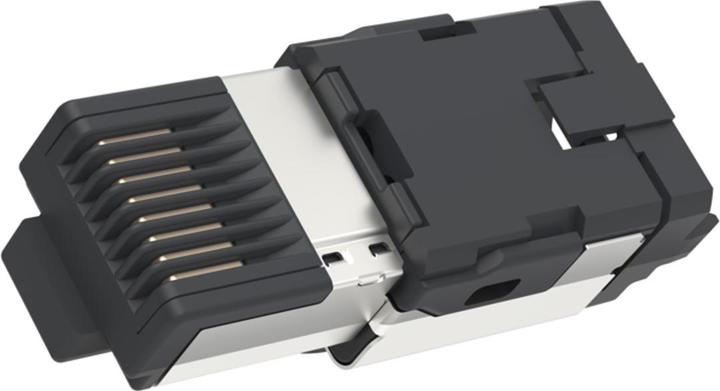

The field-terminable RJ45 connector "field plug ultra short" is one of the shortest RJ45 connectors with IDC connection technology available on the market. Its ultra-short design allows for reliable connections even in tight installation situations. Despite its minimal dimensions, it meets all relevant standards and delivers full performance.

Field-terminable RJ45 connector Cat.6A/Class EA
Data rates up to 10 GBit/s (IEEE 802.3an)
Remote powering up to 90 W / 4PPoE (IEEE 802.3bt)
Centrally aligned and multi-port capable
Straight cable entry (180°)
Easiest termination - can be connected without special tools
Wire connection for stranded conductors AWG 26/7 - 22/7
Wire connection for solid conductors AWG 26/1 - 22/1
Transmission characteristics Cat.6A according to ISO/IEC 11801
Compliance with Class EA according to ISO/IEC 11801, DIN EN 50173-1
Protection class IP20
With optional cable sleeve suitable for cable sheath diameters of 5.0 to 8.0 mm
Two-part, well-known MC connection concept
Protected locking hook
Re-connectable.
