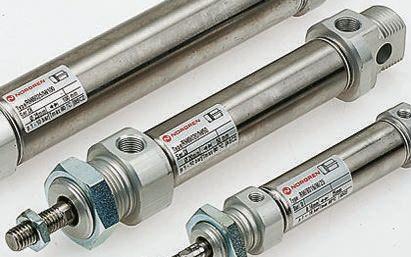

Norgren RM/8000 Double Acting Cyl, 20 x 50mm
Price in EUR including VAT
Delivered between Sat, 6/9 and Tue, 9/9
Only 2 pieces in stock at supplier
Only 2 pieces in stock at supplier
free shipping
Product details
Manufacturer series: RM 8000 M

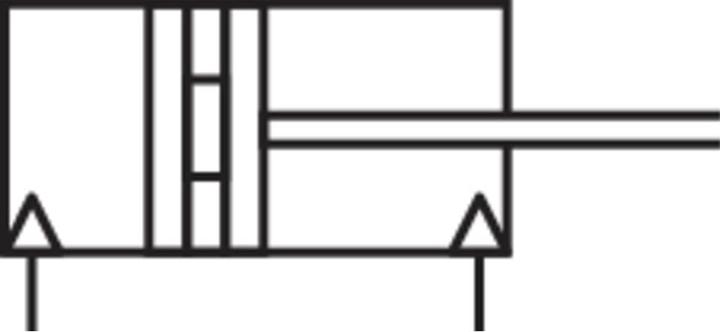

Version: Double
Rods: One
Bore: 20 mm
Stroke: 50 mm
Max. operating pressure: 10 bar
End position damping: Buffer
Connection: G1/8

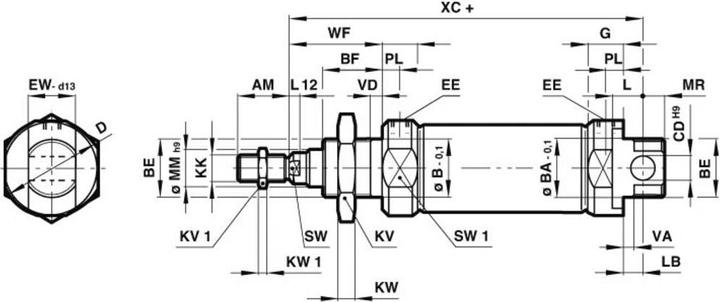

Dimensions: 30 (dia.) x 145 mm
Weight: 181 g
Operating temperature max.: +80°C
Operating temperature min.: -10°C
ISO 6432 series RM 8000 - ISO round cylinder, double acting. Double-acting round cylinder dimensions according to ISO 6432. Design with buffer. Standard magnetic piston design. Swivel mounting integrated in the base. For filtered, lubricated, or non-lubricated compressed air. Suitable accessories: Reed switch, mounting brackets.
Lifting height | 0.05 m |
Material | Stainless steel |
Item number | 10315425 |
Manufacturer | Norgren |
Category | Conveyor technique |
Manufacturer no. | RM/8020/M/50 |
Release date | 15/1/2019 |
External links |
Material group | Metal |
Material | Stainless steel |
Lifting height | 0.05 m |
Mounting hole | 20 mm |
Number of strands | 1 x |
CO₂-Emission | |
Climate contribution |
Length | 14.50 cm |
Width | 5 cm |
Height | 5 cm |
Product Safety |
Specifications may include unverified machine translations.
