The new PLS 3 and PLS 5 laser levels with red or green laser provide the ruggedness and precision you expect from PLS, a Fluke company. Our new platform of laser levels includes units with tilt mode and pendulum locks for safe transport. The fast stabilizing and self-leveling pendulum provides accurate points and reference lines.

• Accuracy: 3 mm at 10 m
• Rugged platform with pendulum locks

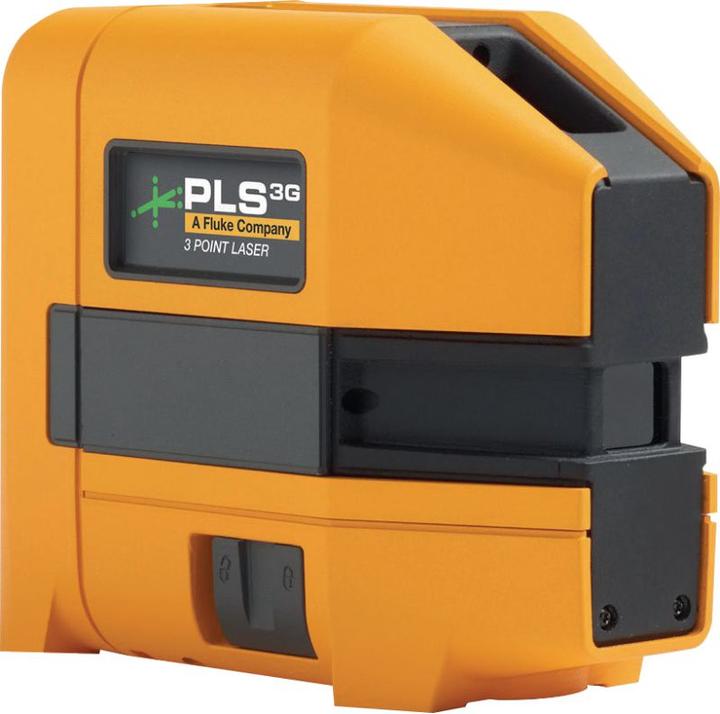

PLS 3R PLS 3G

This professional self-leveling three-point laser leveling device with red or green laser offers a fast and precise acquisition of reference points and is ideally suited for drywall installation of HVAC systems, as well as for electrical system and residential building construction. The PLS 3G's green laser is up to three times brighter than the PLS 3R's red laser, making it ideal for projects over longer distances in low-light conditions. The kit includes a stand and an L-bracket for quick and easy measurement of overhangs and centerlines.

Technical Specifications:

• Batteries: 3 alkaline batteries type AA IEC LR6
• Operating time: continuous red = 30 hours
• Direction of point laser: 90° up, down, front
• Working range: 30 m
• Accuracy: 3 mm at 10 m
• Laser leveling system: Automatic pendulum
• Range: 4°
• Diameter of point laser: 4 mm on 5 m
• Temperature operation: -10 °C to 50 °C
• Temperature storage:
• With batteries: -18 °C to 50 °C
• Without batteries: -20 °C to 70 °C
• Relative humidity:
• 0 % to 90 % (0 °C to 35 °C)
• 0 % to 75 % (35 °C to 40 °C)
• 0 % to 45 % (40 °C to 50 °C)
• Dimensions (H x W x D): 116 mm x 64 mm x 104 mm
• Weight: ~ 0.6 kg
• Safety: According to IEC 61010-1 Pollution degree 2
• Laser: According to IEC 60825-1 2014 Class 2
• Light source: Semiconductor laser diode
• Maximum output power: < 1 mW
• Wavelength: Red 635 nm ± 5 nm, Green 525 nm ± 5 nm

Scope of delivery:

• Laser level PLS 3R
• PLS line bag
• Alkaline battery set PLS BP5.
