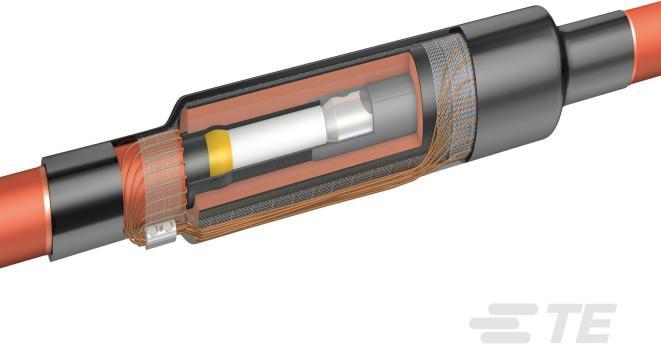

Raychem MXSU-5131 Connection sleeve, 20kV, with screw connection MXSU5131
Product details
Connection sleeve including screw connector for shielded single-core plastic cables. UoU Um 1220 24 kV. Length VDE: 600 mm. Diameter VDE: 60 mm. Suitable for AL and Cu conductors. Breakaway screws with defined torque for secure and reliable installation. Corrosion protection through tinned and greased contact surface. Reduced overall length even with large cross-sections. Tested according to IEC 61238. Improved tensile strength due to a special contact ring at the screw foot. Designed for use with plastic-insulated, shielded single-core cables with PVC or PE outer sheath according to VDE 0271, VDE 0273, and VDE 0276-620 such as NAYSY, NA2YSY, NA2XSY, NA2XSF2Y or TGL 200-175008. Applications for NA2YHCaY, NA2YHCuY, NA2YHCa2Y, NA2YHCu2Y available upon request. Raychem MXSU-5131.
Item number | 43790336 |
Manufacturer | Raychem |
Category | Cable joints |
Manufacturer no. | 743209-005 |
Release date | 11/3/2024 |
Cable connection type | Jointing clamp |
Clamps diameter | 24 mm |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Length | 600 mm |
Width | 14 mm |
Height | 18 mm |
