Siphon Type: Float and Thermostat
Connection: BSP 3/4, Internal Thread
Orientation: Horizontal, Vertical
Maximum Operating Pressure: 14 bar
Maximum Temperature: +198°C
Housing Material: Ductile Cast Iron
Gender: Female
Connection Size: 3/4 inch
Thread Connection Type: BSP

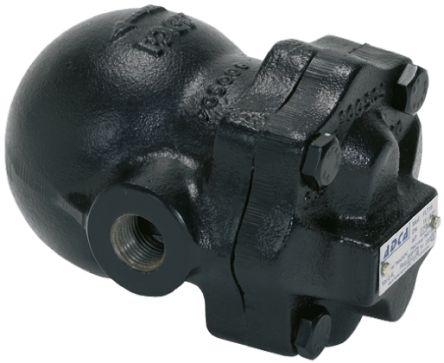

RS Pro Float and Thermostatic Steam Drain. These mechanical float and thermostatic steam drains feature a housing made of ductile cast iron and internal components made of stainless steel. They are equipped with an integrated air vent and are designed for all types of low, medium, and high-pressure steam heating and process systems. Typical applications for these steam drains include heaters, heat exchangers, dryers, jacketed vessels, and any applications where continuous drainage is essential.

Features and Benefits:

• Connections are female threaded
• Modulating discharge
• Discharges condensate at steam temperature
• Resistant to sudden or severe load and pressure changes
• Excellent air discharge through thermostatic air vent.
