Number of outlets = 5
Rated current = 32A
Wire size = 4 mm²
Material = Nylon
Operating voltage = 450 V
Operating temperature min. = -20°C
Operating temperature max. = +125°C
Enclosed = Yes
Contact material = Brass
Contact coating = Nickel

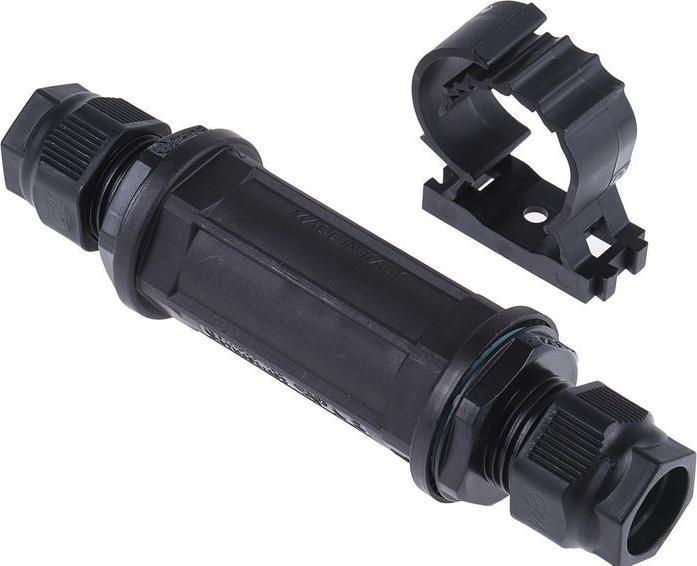

IP68, waterproof cable connectors. TEETUBE - a versatile cable connector for round cables - equally suitable for indoor and outdoor use. According to protection class IP68. This means that these cable connectors can be installed both under water and underground. The integrated terminal block is easily accessible and can be wired quickly. Available in 3 or 5 pole versions. A metal mounting bracket is available. A two-piece sealing ring in the socket housing allows cables with a wide range of diameters to be used. Refer to the following section "Cable Diameter Receptacle" for additional information. General features. Protection class IP68 at 5 bar Temperature range -20 °C to +125 °C Designed for 450 V/32 A Plug made of PA 66 with cable socket and terminal block made of nylon PA 6 Lengths 115 mm (3-pole), 130 mm (5-pole) Diameter 26.5 mm or 32.0 mm Size of cable socket M20 (3-pole), M25 (5-pole). Cable diameter receptacle. 5-pole - 5 to 8 mm with inner and outer seal, 8 to 13 mm with outer seal only 5-pole - 8 to 12 mm with inner and outer seal, 12 to 17 mm with outer seal only.
