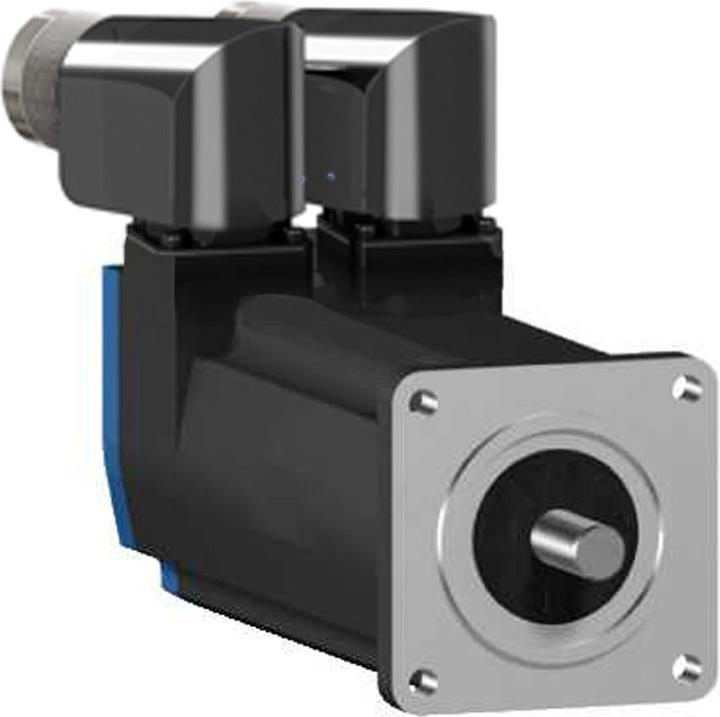

BSH servomotor from the Lexium 32 series of servo drives. This BSH series of three-phase AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 1.2 Nm and achieves a peak torque of 3.5 Nm. Its rated speed can reach up to 9000 RPM, depending on the supply voltage. The voltage-dependent rated power can go up to 970 W. The built-in encoder is a single-turn type with 128 periods/revolution (128x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange has a mounting dimension of 55 mm. The drive shaft has a diameter of 9 mm. The shaft end is equipped with a key and conforms to protection class IP65. The motor housing also meets the IP65 protection class. There is no holding brake. For the operation of the synchronous motor, the servo amplifiers from the Lexium LXM32 series are recommended. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
