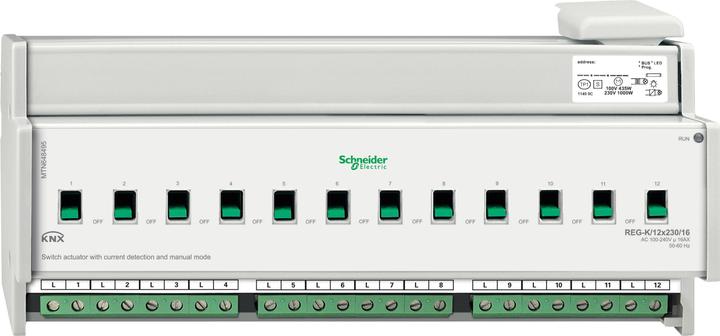

Schneider Electric Switching Actuator MTN648495

Manufacturer: Schneider Electric
Designation: Switching Actuator REG-K/12x230/16
Type: MTN648495
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 12
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 3600 W
Output Power: 3600 W
Suitable for C-Load: yes
Max. Number of Switching Outputs: 12
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Connectable to Different Phases: yes
With Bus Coupling: yes
Bus Module Removable: no
Modular Expansion Possibility: no
Protection Class (IP): IP20

Further Details:
The actuator allows for independent switching of 12 consumers via contact closures. It features integrated current detection that measures the load current per channel. All 230 V switching outputs can be manually operated with toggle switches. A green LED indicates operational readiness after the application is loaded. The load connection is made via screw terminals. Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal.

Rated Voltage: AC 230 V, 50-60 Hz. DC 12-24 V +/-10%, 0.1-16 A. Per Switching Contact: Switching Current: 16 A, cos Phi 0.6. Detection Accuracy: +/- 8% of the current value (sine) and +/- 100 mA. Frequency: 50/60 Hz for alternating current. Representation: 100 mA, Device Width: 12 TE corresponds to approximately 216 mm. Delivery Contents: Includes bus connection terminal and wiring cover.
EAN: 3606485100081.
