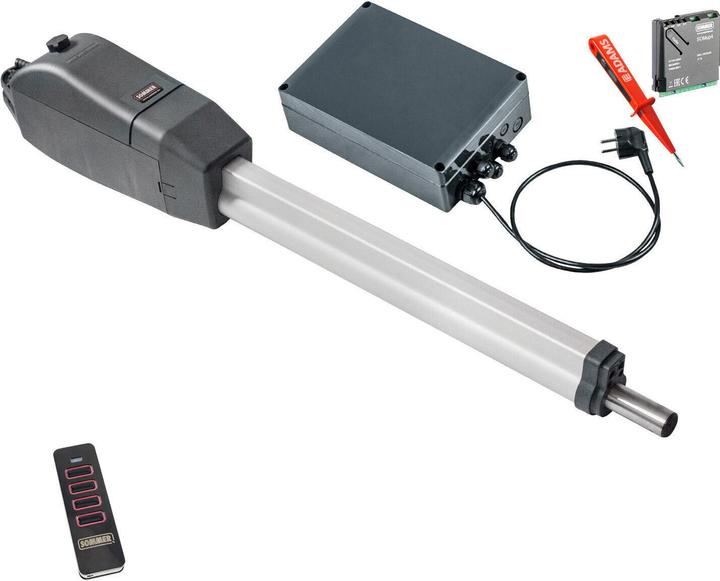

The powerful swing gate operator is suitable for gates with a leaf width of up to 4 m. With its compact design, the Twist 350 can be universally used for both right and left side hinges, as well as in single and double leaf operation. It features a controlled soft start, which reduces speed just before the end positions, thus protecting the gate and the mechanics.

Power supply: AC 220 - 240 V, motor voltage: DC 24 V. Temperature range: -30 °C to +70 °C, protection class: operator: IP44 (control unit: IP65).

The maximum door leaf weight is 700 kg with a maximum door leaf width of 1.5 m for single leaf systems and a maximum door leaf width of 4.0 m with a maximum door leaf weight of 250 kg for double leaf systems.

Additional technical features: Type: 350.
