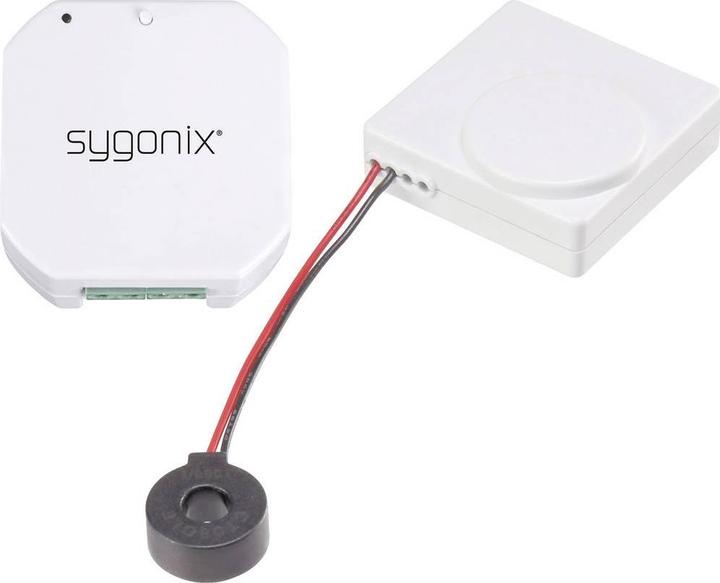

Sygonix RSL set: Radio switch + R2 radio installation switch

Shutter actuator
Price in EUR including VAT, plus shipping
Delivered between Wed, 28/5 and Sat, 31/5
More than 10 items in stock at supplier

Product details

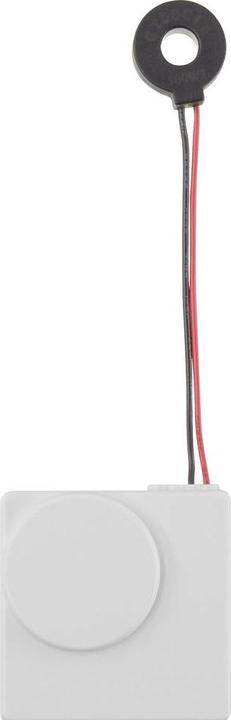

With the RSL radio switch featuring voltage detection, you can wirelessly turn compatible receivers, such as radio-controlled sockets, on and off. The built-in voltage detection allows the radio switch to be connected to an isolated, standard electrical line. Upon detecting or losing voltage, it sends a radio signal to a compatible receiver within an RSL system. The operation is powered by a 3 V lithium battery.

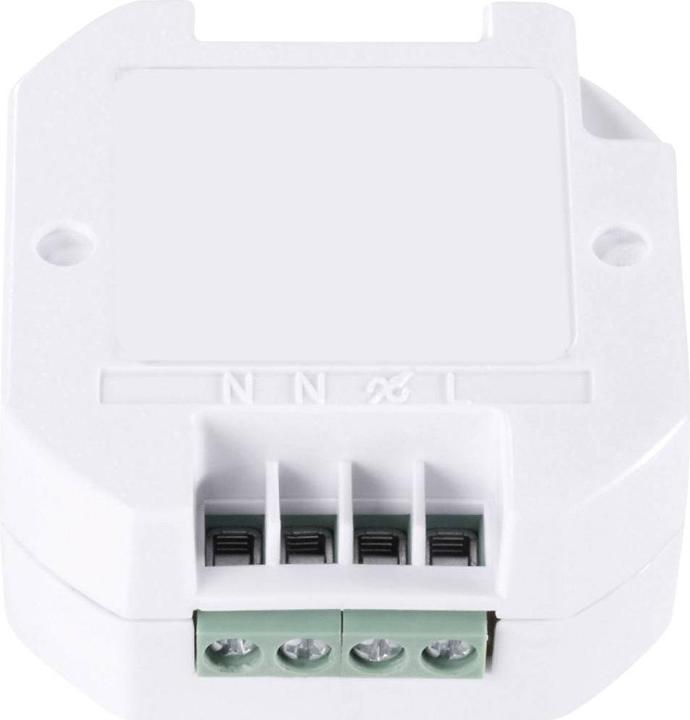

Install comfortably - switch comfortably. This is how easily you can implement your desired circuit with the practical RSLR3 radio in-wall receiver: Install it, pair the remote control - done! You can then turn on all the lights in your room simultaneously with just one button press. Loads of up to a maximum of 2000 W (resistive load) or 300 W (inductive load) can be connected. To protect your devices, the in-wall switch features an integrated overload protection.

Easy installation: Thanks to its compact dimensions, the receiver fits into any standard flush-mounted or surface-mounted box. It can be installed and ready for use in just a few minutes, as it is directly placed into the flush-mounted or surface-mounted box. Up to 10 different transmitters can be paired with an in-wall receiver. Since all components of the RSL radio switch system are compatible with each other, you can easily expand the system according to your needs at any time.

Key specifications

Actuator type
Shutter actuator
mounting style
Flush-mounted
Items per sales unit
1 x
Smart Home Systems
Amazon Alexa
Item number
36828802

General information

Manufacturer
Sygonix
Category
Actuator
Release date
28/6/2023
External links

Actuator properties

Actuator type
Shutter actuator
Max. Switching capacity
2000 W
rated current
60.03 A
Operating voltage
3 V
Number of switching outputs
1 x
mounting style
Flush-mounted

Smart home features

Smart Home
Compatible
Smart Home Systems
Amazon Alexa
Radio frequency
433000000 Hz
Requires Smart Home Hub
Yes

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
0.05 m
Width
0.05 m
Height
0.03 m
