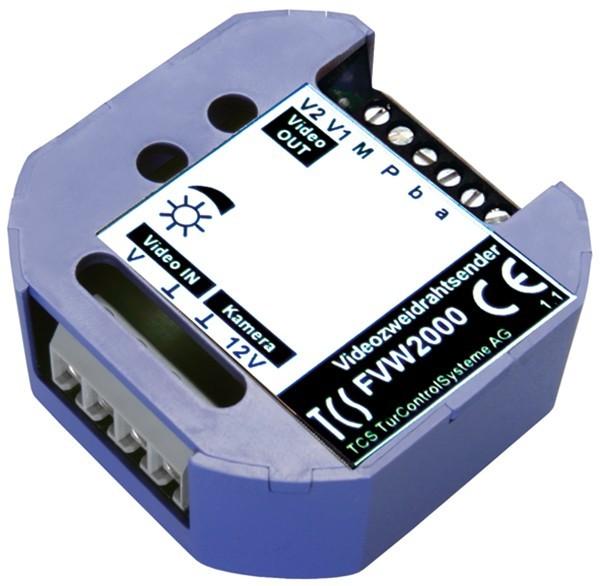

TCS Door Control Video Two-Wire Transmitter FVW2000-0600

Manufacturer: TCS Door Control
Designation: Video Two-Wire Transmitter VZS01-EB
Type: FVW2000-0600
Function: Conversion
Installation Technology: Bus System
Material: Plastic
Interface Type: LAN
Mounting Type: Flush-mounted
Width: 52 mm
Height: 52 mm
Depth: 23 mm

The TCS Door Control Video Two-Wire Transmitter FVW2000-0600 is a video two-wire transmitter designed for installation in standard switch boxes or distribution boxes. It is used to feed external video sources (cameras, CCTV, etc.) into the TCS video system and converts an (F)BAS signal (Composite Video) into a two-wire signal. A controller allows for adjustment of the video level if necessary, compensating for any attenuation on the connection line.

Connection is made via screw terminals. The operating voltage is 26 V DC (from P-wire) with a maximum current consumption of 300 mA. The input impedance is 75 Ohms unbalanced, while the output impedance is 100 Ohms balanced. The video level adjustment range is from -12 dB to +4 dB. The camera supply is 12 V DC with a maximum of 125 mA.

Color: Blue
Dimensions: H 51 mm x W 51 mm x D 22 mm
EAN: 4035138012195.
