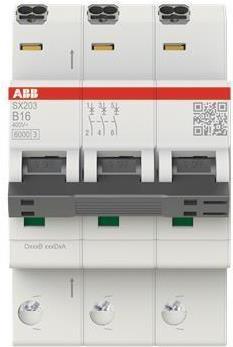

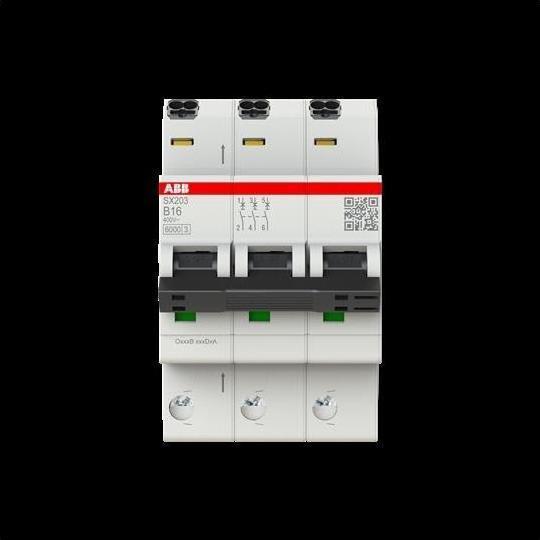

ABB Stotz S&J Circuit Breaker B-Characteristic SX203-B16

Manufacturer: ABB Stotz S&J
Designation: Circuit Breaker B-Characteristic 6kA, 16A, 3P
Type: SX203-B16
Installation Depth: 69 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 7.5 W
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: no
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..55 °C
Explosion Protected: no

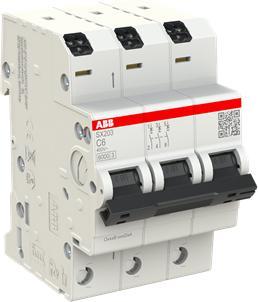

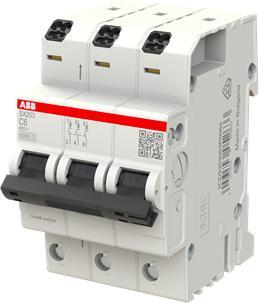

The circuit breakers of the SX 200 series protect cables and lines against overload and short circuits according to DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 and IEC/EN 60898-1. Their patented connection terminals with Push-In technology ensure easy and secure contact and handling. The upper outgoing Push-In terminal can accommodate conductors of up to 2 x 4 mm². On the input side, the PSX phase rails can be used for cross-wiring. For power supply, conductor cross-sections of up to 10 mm² can be directly connected to the device via the screw connection terminal in protection class IP20. For better visibility when connecting, the opening of the screw terminal is located above the flexible terminal for the phase rail. Numerous approvals make the SX200 suitable for use in household and commercial applications. Each device undergoes three intensive tests for quality and performance before delivery.
