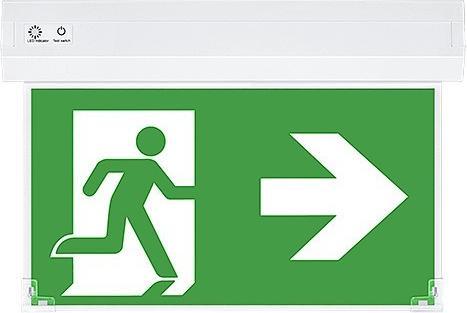

Thorn eco escape route luminaire NINA 30M SE#96635654

Manufacturer: Thorn eco
Designation: Escape route luminaire
Type: NINA 30M SE#96635654
Mounting type: Surface-mounted/recessed
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 1
Socket: Without
Housing material: Plastic
Housing colour: White
Cover material: Plastic opal
Voltage type: AC
Rated voltage: 220-240 V
Replaceable control gear: Yes
Rated service life L70/B50 at 25 °C: 74,000 h
Luminous flux reduction with average service life 50,000 h at 25 °C
Ambient temperature: 80 %
Degree of protection (IP): IP40
Impact resistance: IK04
Protection class: II
Luminaire with limited surface temperature "D mark": No
Rated ambient temperature according to IEC 62722-2-1: 0-40 °C
Max. system power: 5.1 W
System power: 5.1 W
Rated luminous flux according to IEC 62722-2-1: 70 lm
Colour temperature: 5700 K
Power factor: 0.5
Width: 45 mm
Height/depth: 231 mm
Length: 343 mm

Thorn eco escape route luminaire NINA 30M SE#96635654: more details
LED escape route luminaire with local battery supply for 3h emergency lighting operation, manual and self-test (AutoTest) function. Visibility up to 30m. Complies with DIN EN 1838 and DIN 4844-1. Easy installation thanks to universal mounting bracket for ceiling, wall, and 90° mounting. Includes 4 pictograms (up, down, arrow, green). Indication of luminaire status via status LED. Service life: 50,000 h at L80. Protection class: IP40. Impact resistance: IK03. Continuous or standby mode. Rechargeable battery: LiFePO4 3.2V 1.5Ah. Initial charge time: 24 hours. Dimensions: 343 x 45 x 231 mm, weight: 0.98 kg. For installation in Germany, observe DIN 0108 T100-1.
