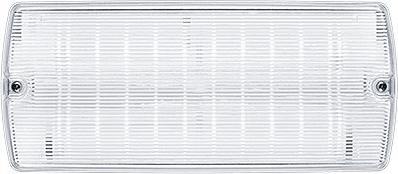

Thorneco emergency light SAM 20M SE #96635656

Manufacturer: Thorneco
Designation: Emergency light
Type: SAM 20M SE #96635656
Mounting type: Wall-mounted/ceiling-mounted
With pictogram: Yes
Monitoring device: Automatic self-test
Battery type: Lithium-ion

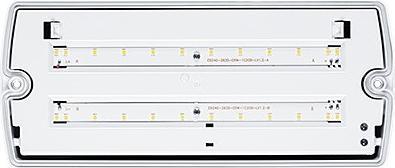

Illuminant: LED (not replaceable)
With illuminant: Yes
Rated voltage: 220-240 V
Control gear: LED control gear current-controlled
Protection class (IP): IP65
Impact resistance: IK08
Max. system power: 4.8 W
Rated luminous flux to IEC 62722-2-1: 269 lm
Colour temperature: 5700 K
Detection range: 20 m
Rated operating time: 3 h
Width: 110 mm
Height/depth: 70 mm
Length: 255 mm

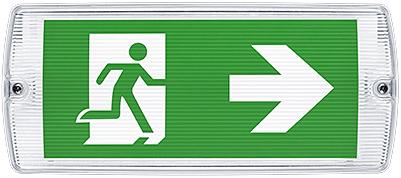

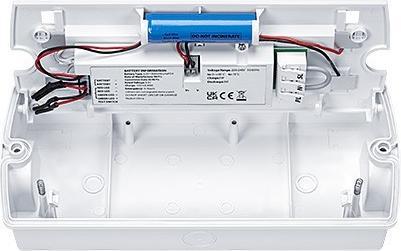

Thorneco emergency light SAM 20M SE #96635656 offers an LED emergency wall and ceiling light and escape route light with local battery supply for 3 hours of emergency light operation, featuring manual and self-test (AutoTest) function. Visibility is up to 20 m. It complies with DIN EN 1838 and DIN 4844-1, including 4 pictograms (left, right, arrow, green). The flexible installation allows for variable cable entry openings. The luminaire status is indicated via a status LED. Service life is 50,000 hours at L80. It has an IP65 rating and impact resistance of IK08. The light can operate in continuous or standby mode. The rechargeable battery is LiFePO4 3.2V 1.5Ah with an initial charge time of 24 hours. Dimensions are 255 x 110 x 70 mm, and the weight is 0.6 kg. For installation in Germany, observe DIN 0108 T100-1.
