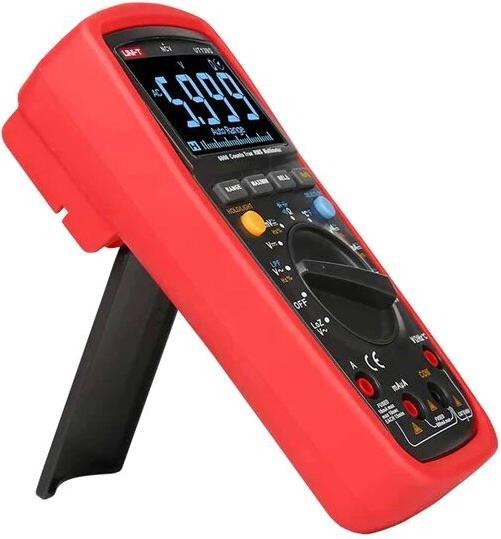

The UT139S True RMS Digital Multimeter from UNI-T is a versatile measuring instrument for electricians. It can measure voltage, current, resistance, capacitance, frequency, and temperature. It features a True RMS function for accurate measurements of non-linear signals. Additionally, it has a NCV function that can effectively check the electrical status by measuring the EM field intensity. A special feature of the UT139S is the LoZ function (ACV), which is used to measure "ghost voltages." The device also has a built-in 31-segment analog bar graph display that provides a better visual representation of the measurement results. The UT139S has a black EBTN display and is ideal for working in dark environments. The device is CAT III 600V rated and comes with batteries, test leads, and a temperature probe.

Features:

• MAX/MIN/REL modes
• Data Hold, LED backlight, auto power off
• Full range protection (600V)
• True RMS
• NCV
• Auto/manual range selectable

Technical Details:

• Manufacturer: UNI-T
• Manufacturer SKU: UT139S
• DC Voltage (V): 0~600V ± (0.5%+2)
• AC Voltage (V): 0~600V ± (0.8%+3)
• DC Current (A): 0~10A ± (0.7%+2)
• AC Current (A): 0~10A ± (1%+3)
• Resistance (Ω): 0~60MΩ ± (0.8%+2)
• Capacitance (F): 0~99.99mF ± (4%+5)
• Frequency (Hz): 10Hz~10MHz ± (0.1%+4)
• Temperature (°C): -40°C~1000°C ± (1%+4)
• Display count: 6000
• Auto range/Manual range/True RMS: Yes
• Bandwidth (Hz): 45Hz~400Hz
• NCV/Continuity buzzer: Yes
• Duty cycle: 0.1%~99.9%
• Diode: About 3V
• LPF/LoZ (ACV): Yes
• Analog bar: Yes
• Power supply: 1.5V battery (R6) x 2
• Display: 58mm x 36mm
• Dimensions: 170 x 80 x 48mm
• Weight: 560g

Delivery includes:

• 1x UNI-T UT139S True RMS Digital Multimeter
• 2x AA batteries
• 1x Test leads Black/Red
• 1x Temperature probe
• 1x English manual.
