Weidmüller PE terminal, Screw,WPE 1.5/ZZ
More than 10 pieces in stock at supplier
Product details

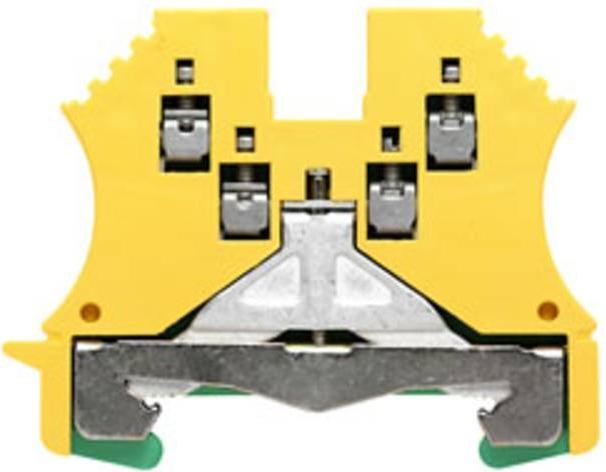

Weidmüller Protective Earth Terminal WPE 1.5/ZZ
Manufacturer: Weidmüller
Designation: Protective Earth Terminal
Type: WPE 1.5/ZZ
PEN function possible: no
Connectable conductor cross-section fine-stranded without ferrule: 0.5..1.5 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5..1.5 mm²
Connectable conductor cross-section solid: 0.5..2.5 mm²
Connectable conductor cross-section multi-stranded: 1.5..2.5 mm²
Electrical connection type 1: Screw connection
Number of levels: 1
Number of connection points per level: 4
Mounting type: TH35 DIN rail
Material of insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of insulating material according to UL 94: V0
Width: 5.1 mm
Height: 60 mm
Depth: 46.5 mm
End plate required: yes
Color: green/yellow
Weidmüller Protective Earth Terminal WPE 1.5/ZZ: additional details
Terminal block for connecting or linking protective conductors to the grounding base (earth). Hardened steel withstands mechanical forces, and tin-plated copper ensures optimal conductivity.
Item number | 9952796 |
Manufacturer | Weidmüller |
Category | Cable joints |
Manufacturer no. | 1016500000 |
Release date | 22/10/2018 |
Exact colour description | Green-yellow |
Colour | Green |
Material | Thermoplastic resin |
Material group | Plastic |
Cable connection type | Plug-in terminals |
Suitable for cable cross-section | 1.50 mm² |
Country of origin | Romania |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Protective conductor terminal |
Items per sales unit | 100 x |
Length | 60 mm |
Width | 5.10 mm |
Height | 60 mm |
Weight | 18.32 g |
