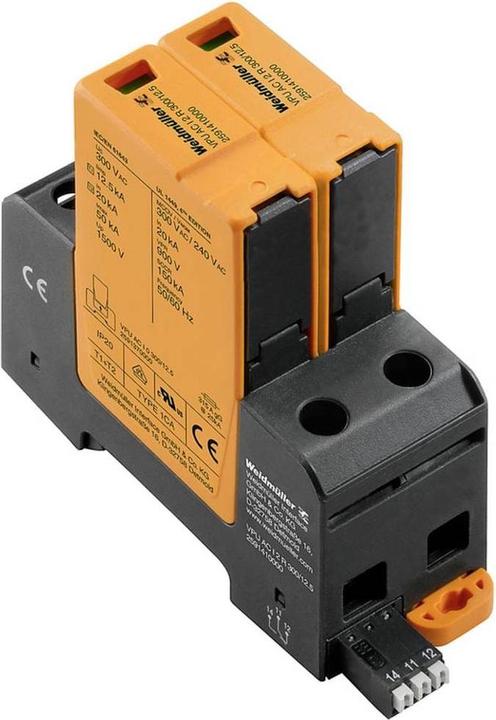

Weidmüller Overvoltage protection VPUACI2R300/12.5 Manufacturer :Weidmüller Designation :Overvoltage protection with remote signalling contact Type :VPUACI2R300/12.5 Mains type DC :no Mains type IT :no Mains type TN :yes Mains type TN-C :no Mains type TN-C-S :no Mains type TN-S :no Mains type TT :no Mains type other :yes Number of conductors (without earth) :2 Rated leakage current (8/20) :20 kA Max. leakage current (8/20) :20 kA Max. leakage current (8/20) :20 kA Max. leakage current (8/20) :20 kA Rated voltage AC :230 V Max. continuous voltage AC :300 V Short-circuit strength (Isccr) :50 kA Integrated short-circuit protection :yes Integrated back-up fuse :no Mounting type :Top-hat rail TH35 Size :2 TE Max. conductor cross-section rigid (one-piece) :no Max. conductor cross-section rigid (solid/multi-stranded) :35 mm² Max. conductor cross-section flexible (fine-stranded) :yes Max. conductor cross-section flexible (fine-stranded) :35 mm² With remote signalling contact :yes Signalling on device :optical Test class type 2 :yes Protection class (IP) :IP20 Weidmüller surge protection VPUACI2R300/12.5: more details Device for surge protection in power engineering and power supply. The device should be installed close to the supply of the system to be protected. , EAN: 4050118599534.
