Best selling Actuators from Hager
This page always stays fresh and updates automatically.

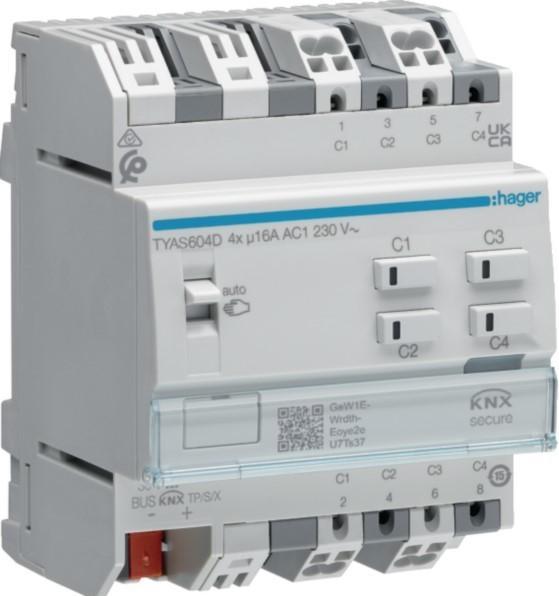

1. Hager Schalt-/Jal.akt.
The Hager switching/blind actuator TYAS604D is a versatile device designed for controlling electric blinds and switches in a KNX-based smart home system. With a maximum switching capacity of 5750 watts and a rated current of 16 amps, this actuator is ideal for use in residential and commercial properties. The actuator is intended for mounting on a DIN rail and offers easy integration into existing KNX systems. Bidirectional communication allows for precise control and feedback on the status of connected devices. Additionally, the actuator is equipped with an LED display that shows the current operating status. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments.
- 4 switching outputs for flexible control options
- Suitable for capacitive loads, ideal for blinds and motors
- Easy mounting on DIN rail
- Compatible with KNX smart home systems
- LED display for status monitoring.

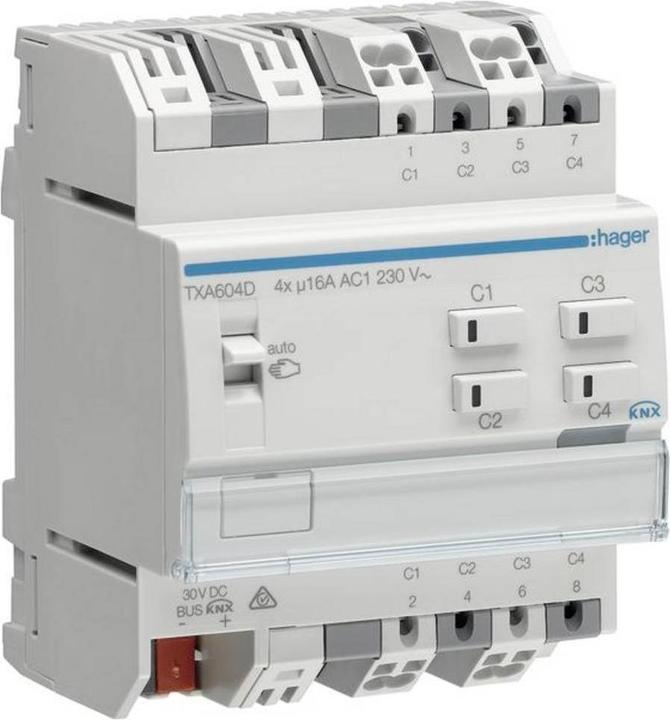

2. Hager Switch/shutter actuator TXA604D 4/2-way KNX easy 16A C-load
Switching/Shutter Actuator 4/2-fold KNX easy, 16A, C-load. The switching/shutter actuator allows for the control of an independent load per actuator channel or the operation of a shutter drive via two actuator channels. A mixed operation of drive and switching functions is possible. The device is a DIN rail-mounted unit with an integrated bus coupler, QuickConnect terminal blocks for KNX bus connection, load/switch connections, and a labeling field.
It features a manual operation button for each output with a status LED, a toggle switch for auto/manual mode, and a backlit programming button. Functions include control options for the switching channels for on/off, a timer function with a switch-off warning, and forced control with respective status indication. The automatic function can be enabled/disabled, and a load shedding through channel shutdown with the highest priority is possible.
There are 64 scene functions adjustable per channel. The roller shutter/shutter function offers an up/down operation with slat angle adjustment, positioning function, and slat adjustment for the shutter in percentage parameterization. Status objects display the position of the slats in percentage as well as the upper/lower end positions. Forced control with status indication and three alarm objects with different priority control are also available.
Additionally, there are 64 scene functions per channel and an adjustable sun protection function. Note: The device can be programmed using the easy commissioning tool, easy configuration server, or ETS (from version 4). Please observe the instructions from the roller shutter/shutter motor manufacturers.
3. Hager Blind output KNX 4gang, 230V
Hager KNX Shutter Output 4-fold TYA624C
Manufacturer: Hager
Designation: KNX Shutter Output 4-fold 230V
Type: TYA624C
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupling: yes
Bus Module Removable: no
Local/Manual Operation: yes
With LED Display: yes
Switching Current Resistive: 6 A
Max. Switching Power: 1380 W
Max. Number of Shutter Outputs: 4
Switching Function: no
Type of Current: AC
Protection Class (IP): IP20
Hager KNX Shutter Output 4-fold TYA624C: additional details
4-fold KNX roller shutter/shutter actuator, 230V. Switching output for controlling 4 shutter outputs. The shutter function allows for commands to open, close, stop, and adjust the slat angle. Percentage control of the shutter to drive to a predefined position. Alarm function for controlling the shutter to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block for controlling the output based on the result of a logical connection. Preset, lock function, forced control. The device converts bus information into corresponding commands. The outputs are switched via the system line from their assigned inputs. All outputs have a manual operation on the device, which can also be locked, as well as a switching state display via LED and an operating hour counter per output. The device can be read out with a diagnostic tool. Labeling options directly on the device.
4. Hager TYAS664D DALI actuator 4-fold KNX
The Hager TYAS664D DALI actuator is a versatile 4-channel analog actuator specifically designed for integration into KNX systems. With its ability to control RGB(T)W lighting, this actuator offers a flexible solution for modern smart home applications. It enables easy and efficient control of lighting systems and contributes to the creation of individual lighting moods. The actuator is designed for indoor use and meets the IP20 protection rating, making it ideal for use in dry environments. With an operating voltage of 240 volts, the Hager TYAS664D is both powerful and reliable. Installation is straightforward, as no additional smart home hub is required, facilitating integration into existing systems. The actuator is an excellent choice for anyone seeking an intelligent and customizable lighting solution.
- Control of RGB(T)W lighting
- Easy integration into KNX systems
- No smart home hub required
- IP20 protection rating for indoor use.
5. Hager TXA661B
Universal Dimmer Actuator 1-channel KNX easy, 1x600W, ESL/LED. The Universal Dimmer Actuator REG is designed for switching and dimming and automatically detects the type of load (autodetect method). With the Easydetect method, the dimming range is optimized, either via the push-button mode on the external sensor, on the device, or through an object. It is a rail-mounted device with an integrated bus coupler, QuickConnect terminal blocks for auxiliary voltage, KNX bus connection, load connection, and labeling field. It features control buttons for manual operation with a status LED (single-surface operation) and a backlit dimming mode button. Control LEDs indicate short circuit, overload protection, and overheating protection. The slide switch allows settings for auto/min/max/manual as well as a backlit programming button.
Functions: Switching and dimming of loads (observe manufacturer's load specifications). Dimming channel selection for dimming, on/off, timer function with switch-off pre-warning, forced control with respective status indication, and an activatable automatic function. Up to 64 scene functions can be set per channel. Manual control for switching and dimming is possible without a bus. The status object of the output is defined by the current flow through the light source. Note: The device can be programmed with the easy commissioning tool, the easy configuration server, or ETS (from version 4). Conventional transformers must not be connected together with electronic transformers.
6. Hager Modulinis Contactorius 25A 2NO 2R 230V AC (ESC427)
The Hager ESC427 is a heating actuator designed for the reliable control of heating systems. With a nominal voltage of 230 volts and a maximum switching current of 25 amperes, this device is ideal for use in various heating applications. The actuator features two normally closed contacts and two normally open contacts, allowing for flexible control. Its compact design, with dimensions of 60 mm in length, 83 mm in height, and 35.75 mm in width, facilitates installation in different environments. The Hager ESC427 is wired and offers an IPX2 protection rating, which protects it from splashes and thus increases the device's longevity. Made in France, this heating actuator stands for quality and reliability.
- Maximum switching power of 1900 watts
- Wired communication for stable connections
- IPX2 protection rating for additional moisture protection
- Compact design for easy installation.
7. Hager Radio
Funk UP shutter actuator, 1-channel, binary input 2-channel, 3A. This KNX wireless electronic shutter actuator is designed for installation behind flush-mounted devices and features screw lift terminals. It includes a Quicklink push-button mode for tool-free configuration and function buttons with LED indicators. Integration is achieved via a KNX wireless media coupler into the KNX-TP system.
Functions include mechanically and electronically interlocked relay contacts, manual operation up/down, scene storage with a lockable option, scene recall via KNX wireless devices, a repeater function, and a factory reset function. Quicklink functions consist of shutter control, scenes, forced control, and up/down button. Additional functions include the ability to set 6 scenes, on/off operating mode, button control for up/down, alarm, and status indication. Please observe the motor manufacturers' instructions. TRM692G.
8. Hager KNX switching/shutter output. 10gang 10A TYA610B
Switch/Jalousie actuator 10/5-fold, 10A, KNX. Switching output for controlling 10 socket or lighting outputs or 5 blind outputs. For controlling lighting outputs, options include On/Off, time control, safety off, forced control, lock, logic, preset, delay function, or 64 scene functions per channel. With toggle function for time or duration. The blind function allows for commands to raise/lower/stop and adjust the slat angle. Percentage control of the blind to move to a predefined position. The sun protection function can control brightness per room in conjunction with an external sensor. Alarm function to control the blind to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block to control the output based on the result of a logical connection. Preset, lock function, forced control. The device converts bus information into corresponding commands. The outputs are switched via the system line from their assigned inputs. All outputs have a manual control on the device, which can also be locked, as well as a switching status indicator via LED and operating hour counter per output. The device can be read out with a diagnostic tool. Labeling option directly on the device.
9. Hager Remote dimmer EVN011 300W Universal
Universal 300W LED Remote Dimmer
The remote dimmer allows for the control of dimmable energy-saving and LED lamps, incandescent bulbs, 230V halogen lamps, and low-voltage halogen lamps with either a wound or electronic transformer. It features automatic load detection through a detection method and a learning function via the external button. The memory function ensures that the last set value is activated when switched on. The control input can be made via the phase or neutral conductor. It has a compact design and a low standby consumption of 0.2W. The dimmer's remote control is also available with a backlit button. Additionally, it includes electronic short-circuit and over-temperature protection.
10. Hager HAGE shutter/blind actuator
Hager Roller Shutter/Jalousie Actuator TYAS628C
Manufacturer: Hager
Designation: 8-fold KNX Roller Shutter/Jalousie Actuator, 230V
Type: TYAS628C
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 6
With Bus Coupling: yes
Bus Module Removable: no
Local/Manual Operation: yes
With LED Display: yes
Ohmic Switching Current: 6 A
Max. Switching Power: 1380 W
Max. Number of Jalousie Outputs: 8
Switching Function: no
Current Type: AC
Protection Class (IP): IP20
Hager Roller Shutter/Jalousie Actuator TYAS628C: additional details
8-fold KNX Roller Shutter/Jalousie Actuator, 230V. KNX Secure switching output for controlling 8 Jalousie outputs. The Jalousie function allows for commands to open, close, stop, and adjust the slat angle. Percentage control of the Jalousie to drive to a predefined position. Alarm function for controlling the Jalousie to a defined position. Safety descent as long as the button is pressed. Functions: 64 scene functions per channel, logic block for controlling the output based on the result of a logical connection, preset/blocking function, forced control, manual operation per output (lockable), LED switching status display, operating hour counter per output, diagnostic function. Labeling option directly on the device and capability for remote firmware updates via ETS app. EAN: 3250610050095.
