Cable joints
Quantity discount
EUR8,06 per piece for 2 units
Kleinhuis GmbH Co. KG Main line branch terminal 2x25qmm finger safe HLAC25
Best selling Cable joints from Kleinhuis
On this page you’ll find a ranking of the best Cable joints from Kleinhuis. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Kleinhuis GmbH Co. KG Main line branch terminal 2x25qmm finger safe HLAC25
The HLAC25 main line branch terminal from Kleinhuis is a high-quality cable connector designed for the safe and reliable connection of electrical wires. With a rated current of 101 A and a clamping range of 1.5 to 25 mm², this terminal is versatile and suitable for both solid and stranded conductors. The finger-safe design ensures a high safety standard, while the snap-on mounting allows for easy installation on DIN rails. The terminal is halogen-free and meets the requirements of DIN VDE 0603-2, making it an ideal choice for various electrical installations. The use of high-quality materials, such as galvanized steel and gold-plated contacts, ensures a long lifespan and reliable performance. This terminal is an excellent solution for those who value safety and quality in their electrical connections.
- Finger-safe design for increased safety
- Suitable for solid and stranded conductors
- Easy installation with snap-on mounting on DIN rail
- Halogen-free and complies with DIN VDE 0603-2
- Made from high-quality materials for durability.
2. Kleinhuis IPON cable gland
The IPON cable gland from Kleinhuis is a high-quality solution for the safe and reliable connection of cables. It is specifically designed for cable diameters ranging from 7 to 14 mm and features a metric thread size of M20. This cable gland is characterized by its robust construction made from polyamide (PA), making it suitable for use in demanding environments. With an IP68 protection rating, it ensures high impermeability against dust and water, making it ideal for industrial applications. The IPON cable gland is designed for temperatures ranging from -25 °C to 100 °C, providing a wide operating temperature range. It is a reliable choice for anyone needing a durable and high-performance cable connection.
- Protection class IP68 for high impermeability against dust and water
- Operating temperature range from -25 °C to 100 °C
- Made from halogen-free polyamide (PA)
- Metric thread M20 with a thread length of 15 mm
- Suitable for cable diameters from 7 to 14 mm.
3. Kleinhuis GmbH Co KG Cable gland 1250M4029
The Kleinhuis cable gland 1250M4029 is a high-quality solution for the safe and reliable connection of cables. It is made from glass fiber reinforced polyamide (PA), making it particularly robust and durable. With an IP54 protection rating, it offers effective protection against dust and splashing water, making it ideal for use in demanding environments. The cable gland is suitable for cable diameters ranging from 24 to 26 mm and features a metric connection thread according to DIN EN 60423. It is halogen-free and meets high safety standards, including a glow wire test at 650 °C. The operating temperature ranges from -40 °C to 100 °C, making it versatile for various applications. This cable gland is a reliable choice for anyone who values quality and safety.
- Made from glass fiber reinforced polyamide (PA) for increased robustness
- IP54 protection rating for protection against dust and splashing water
- Suitable for cable diameters of 24 to 26 mm
- Operating temperature range from -40 °C to 100 °C
- Halogen-free and meets high safety standards.
Cable joints
Quantity discount
EUR11,63 per piece for 2 units
Kleinhuis GmbH Co KG Cable gland 1250M4029
4. Kleinhuis IPON cable gland M20 2234M20 Ms 2234M20
The IPON cable gland M20 2234M20 from Kleinhuis is a high-quality solution for the safe and reliable connection of cables. This cable gland is specifically designed for cable diameters ranging from 8 to 13 mm and offers an IP68 protection rating, making it ideal for use in demanding environments. The body of the gland is made of nickel-plated brass, which not only ensures high corrosion resistance but also guarantees a long service life. The design includes an internal strain relief mechanism that provides additional support and protects the cables from mechanical stress. With an operating temperature range of -30 to 120 °C, this cable gland is versatile and suitable for various applications in industry and commerce.
- IP68 protection rating for maximum sealing and protection against dust and water
- Operating temperature range of -30 to 120 °C for versatile applications
- Internal strain relief according to EN 50262 for added safety
- Made from nickel-plated brass for high corrosion resistance
- Metric threaded connection according to DIN EN 60423 for easy installation.

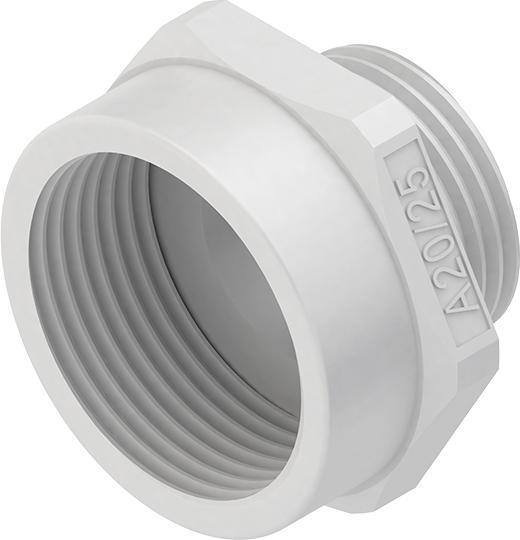

5. Kleinhuis Centric - Intermediate piece extension M20/M25 grey
The Centric M20/M25 Extension Coupling from Kleinhuis is a high-quality cable connection designed for use in demanding environments. This extension fitting provides a reliable connection with metric internal and external threads manufactured according to DIN EN 60423. Made from glass fiber reinforced polyamide, the product is characterized by its high temperature resistance and can be used in a temperature range of -30°C to 120°C. The halogen-free and flame-retardant construction ensures additional safety, while the IP68 protection class offers effective protection against the ingress of water and dust. The light gray color corresponds to RAL 7035 and integrates harmoniously into various installations. The Centric M20/M25 Extension Coupling is therefore an ideal solution for professional applications where reliability and safety are paramount.
- Metric internal thread M25 and external thread M20
- Made from glass fiber reinforced polyamide for increased stability
- Flame-retardant and halogen-free for added safety
- Protection class IP68 for optimal protection against water and dust
- Temperature resistant from -30°C to 120°C.
Cable joints
Quantity discount
EUR4,86 per piece for 2 units
Kleinhuis Centric - Intermediate piece extension M20/M25 grey

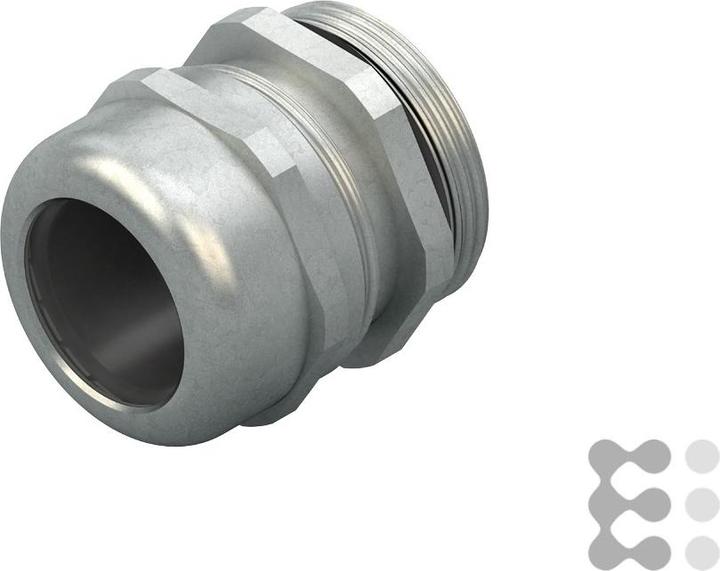

6. Kleinhuis IPON cable gland M16 2234M16 Ms 2234M16
The IPON cable gland M16 2234M16 from Kleinhuis is a high-quality solution for the secure and reliable connection of cables. This cable gland is specifically designed for cable diameters ranging from 5.5 to 10 mm and offers an IP68 protection rating, making it ideal for use in demanding environments. The body of the gland is made of nickel-plated brass, which not only ensures high corrosion resistance but also guarantees a long service life. The design includes an internal strain relief mechanism that provides additional protection for the cable connection. With an operating temperature range of -30 to 120 °C, this cable gland is versatile and suitable for various applications in industry and commerce.
- IP68 protection rating for maximum sealing and protection against dust and water
- Operating temperature range of -30 °C to 120 °C for versatile applications
- Internal strain relief according to EN 50262 for added safety
- Made of nickel-plated brass for high corrosion resistance
- Metric threaded connection according to DIN EN 60423 for easy installation.
Cable joints
Quantity discount
EUR11,04 per piece for 2 units
Kleinhuis IPON cable gland M16 2234M16 Ms 2234M16

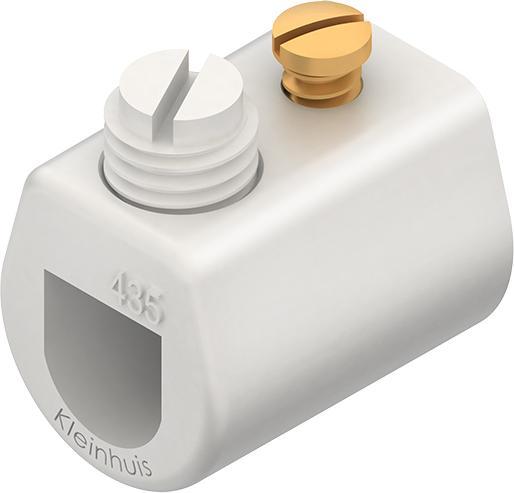

7. Kleinhuis Clamping sleeve ws 435W
The Kleinhuis ws 435W clamping sleeve is a high-quality cable connector designed for a reliable and secure connection of cables. It features an internal thread of M10x1 and is equipped with a locking screw that ensures a stable attachment. This clamping sleeve is halogen-free and made from robust polystyrene (PS), making it a durable solution for various applications. With a length of 19 mm, it is suitable for cable diameters ranging from 3 to 6.5 mm. The use of polyamide (PA) for the set screw and copper-plated steel for the locking screw provides additional strength and corrosion resistance. The clamping sleeve is available in a neutral white tone, making it versatile for different uses.
- Internal thread M10x1 for easy installation
- Halogen-free and made from durable polystyrene (PS)
- Locking screw for added stability
- Suitable for cable diameters of 3 to 6.5 mm.

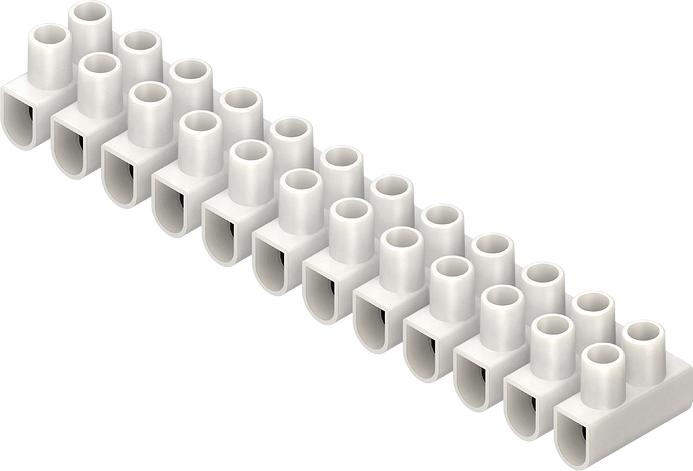

8. Kleinhuis 149.3 Terminal block 10-25qmm 12pole white 149.3
The Kleinhuis 149.3 connection terminal is a high-quality plug terminal designed for a reliable electrical connection. It is suitable for conductor cross-sections from 10 to 25 mm² and offers a pole count of 12, making it ideal for various applications in electrical installations. The terminal is halogen-free and complies with the requirements of DIN EN 60998, emphasizing its safety and reliability. With a robust insulating body made of PP and brass clamping bolts, it ensures long-lasting use. Installation is done via screw connections, allowing for a simple and secure connection. The connection terminal is suitable for use in environments with a maximum temperature of T80 and offers a rated voltage of 450 V. Its compact dimensions and the ability to connect multiple wires make it a practical choice for professionals and DIY enthusiasts.
- Halogen-free design for increased safety
- Suitable for solid, fine-stranded, and multi-stranded conductors
- Maximum ambient temperature of T80
- Robust materials: insulating body made of PP, clamping bolts made of brass
- Complies with the requirements of DIN EN 60998.

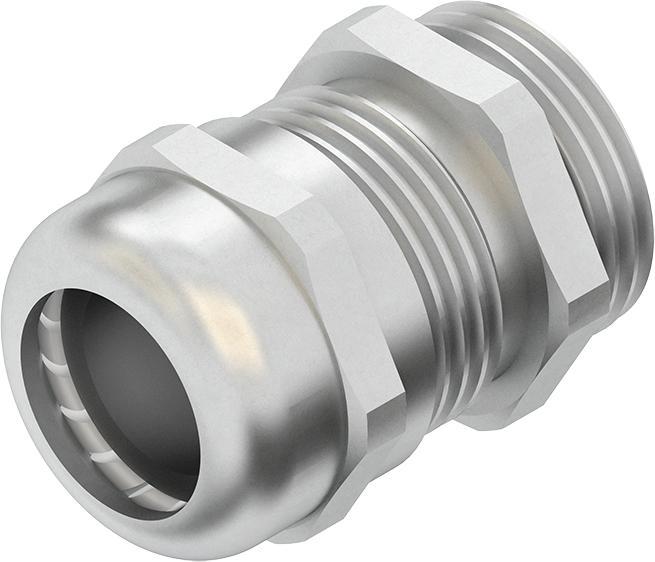

9. Kleinhuis 2640M16
HKL EMC cable gland 2640M16
Manufacturer: HKL
Designation: EMC cable gland M16, MS. vern.
Type: 2640M16
Thread type: Metric
Nominal thread size metric/PG: 16
Thread pitch: 1.5 mm
Thread length: 13 mm
Width across flats: 17 mm
Hexagon corner dimension: 19 mm
Suitable for cable diameter: 5.5 - 10 mm
Material: Metal
Material quality: Brass
Surface protection: Nickel-plated
Halogen-free: No
Glass fibre reinforced: No
Protection class (IP): IP68
Impact-resistant: Yes
Bending protection: No
With locknut: No
Locking in opening: No
Version: Straight
Multiple sealing insert: No
Flat cable gland: No
With strain relief: No
Type of seal: Sealing ring
Split gland: No
Operating temperature: -30 to 120 °C
Explosion-tested design: No
For Ex zone gas: None
For Ex zone dust: None
For armoured cables: No
EMC design: Yes
Shielded: No
Further details: EMC cable gland with metric connection thread to DIN EN 60423, internal strain relief to EN 50262 version A, with lamellar insert and continuous insulated sealing ring as well as O-ring on the connection thread, watertight. Suitable for cables with braided shield. Nominal size: M 16 for cable Ø: 5.5 - 10 mm. Connection thread length: 5.5 mm. Width across flats: 17 mm. Protection class: IP68, 5 bar. Operating temperature range: -30° to 120°C. Material gland body: Nickel-plated brass. Blade insert: PA. Material sealing ring: Chloroprene (CR). Material O-ring: NBR. EAN: 4011126381221.
10. Kleinhuis Cable gland metric-M40 EN 50 262
The metric-M40 cable gland from Kleinhuis is a reliable solution for securely connecting cables in various applications. It is made of high-quality polystyrene (PS) and offers high impact resistance, as well as an IP54 protection rating that shields it from dust and splashes. This cable gland is suitable for cable diameters ranging from 19 to 27 mm and features a metric connection thread according to DIN EN 60423. The design allows for easy handling, as tightening the gland is only recommended to be done by hand. With a temperature range of -30 to 60 °C, it is versatile and meets the requirements for different environments. The cable gland is halogen-free and complies with safety standards, including VDE certification.
- IP54 protection rating for reliable protection against dust and splashes
- Temperature range of -30 to 60 °C for versatile applications
- Made from halogen-free polystyrene (PS) for enhanced safety
- Metric connection thread according to DIN EN 60423 for easy installation
- VDE certified for additional safety assurances.
Cable joints
Quantity discount
EUR10,35 per piece for 2 units
Kleinhuis Cable gland metric-M40 EN 50 262
