Best selling Cable joints from TE Connectivity
On this page you’ll find a ranking of the best Cable joints from TE Connectivity. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

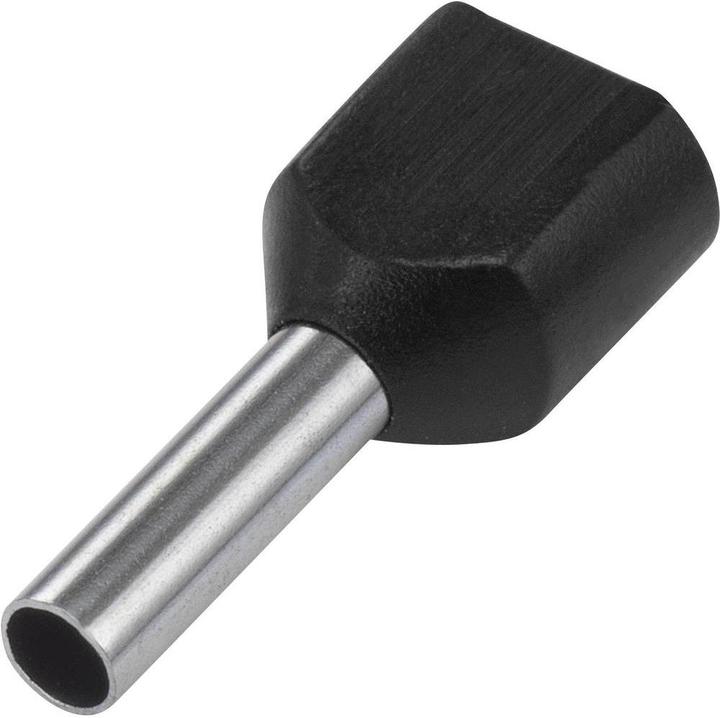

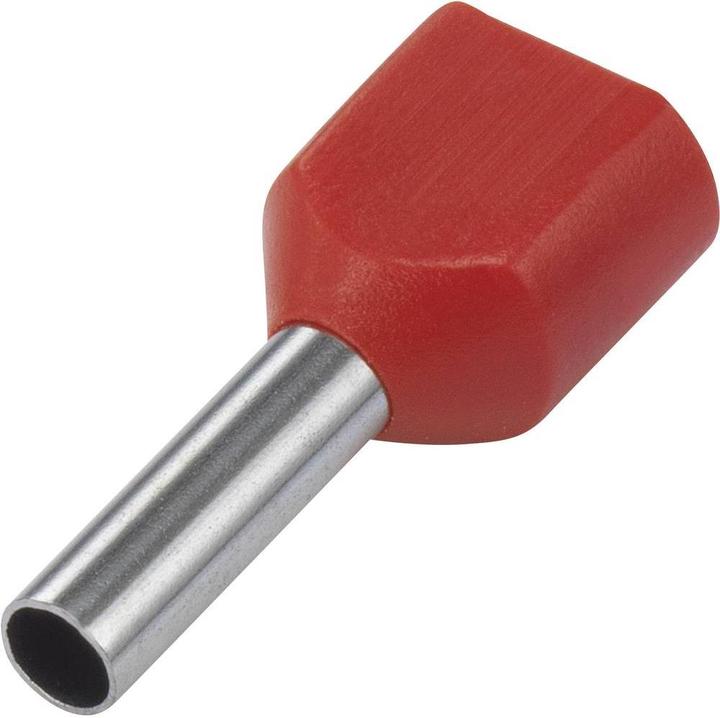

1. TE Connectivity Twin ferrule
The twin ferrule is a high-quality connection solution specifically designed for use with cables with a cross-section of 1 mm². This partially insulated ferrule allows for a secure and reliable connection of wires and cables, making it ideal for various electrical applications. Made from tinned electrolytic copper, it offers excellent conductivity and corrosion resistance. With a length of 15 mm and a crimping diameter of 1 mm, this ferrule is easy to handle and install. The package includes 500 pieces, providing a cost-effective solution for projects with high demand. The red coloring ensures easy identification and is a common standard in electrical installations.
- Partially insulated design for enhanced safety
- Made from tinned electrolytic copper for optimal conductivity
- Package of 500 pieces for extensive applications.
2. TE Connectivity TE LJSM-4X016-050
Krüger-Werke GmbH connecting sleeve LJSM-4X016-050
Manufacturer: Krüger-Werke GmbH
Designation: Connecting sleeve 4x16-4x50 mm²
Type: LJSM-4X016-050
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat-shrinkable
Insulation material: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
Nominal conductor cross-section: 16..50 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connecting accessories supplied: Screw connector with tear-off head
Halogen-free: Yes
Further details: Standard connecting sleeve for four-core plastic cables. Version with tear-off head screw connectors. Universally applicable for connecting unshielded plastic cables (e.g. N(A)YY, N(A)2XY, N2XH). For cables without reinforcement with PVC, PE, XLPE, and EPR insulation. Heat-shrinkable, cross-linked polyolefin tubing, coated on the inside with hot-melt adhesive. Suitable for Al and Cu conductors. Raychem.
Applications: Indoor, outdoor, ground, water, installation ducts, and pipes. Complies with Raychem specification PPS 3013 and therefore meets the requirements of all major national and international regulations. System tested according to CENELEC EN 50393.
3. TE Connectivity TE LJSM-4X035-095
Krüger-Werke GmbH connecting sleeve LJSM-4X035-095
Manufacturer: Krüger-Werke GmbH
Designation: Connecting sleeve 4x35-4x95 mm²
Type: LJSM-4X035-095
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat shrinkable
Insulation material: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
Nominal conductor cross-section: 35..95 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connecting accessories supplied: Screw connector with tear-off head
Halogen-free: Yes
Further details: Standard connecting sleeve for four-core plastic cables. Version with tear-off head screw connectors. Universally applicable for connecting unshielded plastic cables (e.g. N(A)YY, N(A)2XY, N2XH). For cables without reinforcement with PVC, PE, XLPE, and EPR insulation. Heat-shrinkable, cross-linked polyolefin tubing, coated on the inside with hot-melt adhesive. Suitable for Al and Cu conductors. Applications include indoor, outdoor, ground, water, installation ducts, and pipes. Complies with Raychem specification PPS 3013 and meets the requirements of all major national and international regulations. System tested according to CENELEC EN 50393.
4. TE Connectivity Cable sleeve CH6879-000 RayGel P
The TE Connectivity CH6879-000 RayGel Plus 0 cable joint is a high-quality connection solution specifically designed for the safe and reliable connection of plastic cables. This cable joint is filled with PowerGel, which provides effective protection against moisture and water, making it ideal for use in demanding environments. It is suitable for cable cross-sections of 2-3 x 1.5-2.5 mm² and allows for easy and clean installation. The joint is designed for various applications, including street, garden, and pool lighting, as well as connecting devices outdoors. With an IP68 protection rating, it is suitable for use underground and meets international standards for joint connections.
- Suitable for cable cross-sections of 2-3 x 1.5-2.5 mm² and 1 x 10-50 mm²
- Quick and easy installation thanks to thoughtful design
- IP68 protection rating for use in damp environments and underground
- Environmentally friendly and free from labeling
- System tested according to international joint standard CENELEC EN 50393.
5. TE Connectivity RAY BV 2-KS 2-4300 Pouring connection sleeve up to 4x25 m clamp
The RAY BV 2-KS 2-4300 casting connection sleeve from TE Connectivity is a high-quality solution for securely connecting cables. This sleeve is specifically designed for cable cross-sections of up to 25 mm² and offers a reliable and durable connection. Made from robust plastic, it ensures high resistance to environmental influences and mechanical stresses. The casting resin technology provides excellent insulation and protects the connection from moisture and other harmful effects. This connection sleeve is ideal for applications where a secure and long-lasting cable connection is required.
- Suitable for cable cross-sections up to 25 mm²
- Made from halogen-free plastic
- Includes a screw connector.
Cable joints
EUR61,90
TE Connectivity RAY BV 2-KS 2-4300 Pouring connection sleeve up to 4x25 m clamp
6. TE Connectivity TE LJSU-4X095-240
Krüger-Werke GmbH connecting sleeve LJSU-4X095-240
Manufacturer: Krüger-Werke GmbH
Designation: Connecting sleeve 4x95-4x240 mm²
Type: LJSU-4X095-240
Rated voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat shrinkable
Insulation material: Plastic
For connecting paper-insulated cables with plastic-insulated cables: No
Number of conductors: 4
Nominal conductor cross-section: 95-240 mm²
Mining approval: No
With concentric shielding: No
Suitable for: N(A)YY
Connection accessories supplied: Without
Halogen-free: Yes
Further details: Standard connecting sleeve without connector, suitable for four-core plastic cables. Compatible with press or screw connectors (not included). Universally applicable for connecting unshielded plastic cables (e.g., N(A)YY, N(A)2XY, N2XH). Designed for cables without reinforcement with PVC, PE, XLPE, and EPR insulation. Features heat-shrinkable, cross-linked polyolefin tubing, coated on the inside with hot-melt adhesive. Suitable for aluminum and copper conductors. Applications include indoor, outdoor, ground, water, installation ducts, and pipes. Complies with Raychem specification PPS 3013 and meets the requirements of all major national and international regulations. System tested according to CENELEC EN 50393.
