Best Schneider Electric products in the Frequency converters category
On this page you'll find a ranking of the best Schneider Electric products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

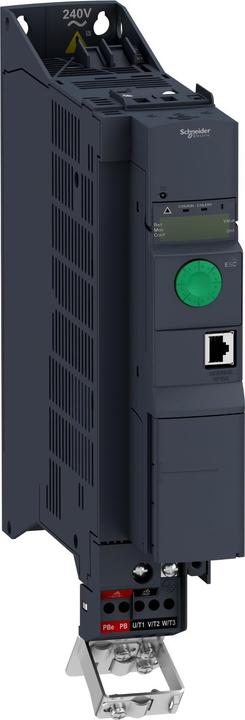

1. Schneider Electric ATV320 1.5KW 400V 3PH BOOK VSD
Frequency inverter ATV320, book. Dimensions 45 x 325 x 245 mm, power 1.5 kW. Supply voltage 3-phase, 380-500 V 50/60 Hz with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation. Description of integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe limited speed (SLS), safe door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability, U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Extremely easy commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications. Options for loading, editing, and saving the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated radio interference filter class A, deactivatable. Suitable for operation in IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched to digital inputs. Integrated braking module enables 4-quadrant operation without retrofitting.
2. Schneider Electric Frequency converter 0,55KW 240V 1-phase
ATV12 frequency inverter with heat sink. Power 0.55 kW. Supply voltage single-phase 200-240 V 50/60 Hz. Easy installation following the Plug & Drive principle, with its compact design, integrated functions, and a version on a base plate. Ideal for use in simple industrial machines as well as in certain consumer goods machinery. Numerous options for loading, editing, and saving the inverter configurations with various tools. For example, the commissioning software SoMove, the SoMove Mobile software for mobile phones, decentralized terminals, and the configuration tools Simple-Loader and Multi-Loader. Factory preset inverter for immediate commissioning. Loading and saving a configuration even in a de-energized state using the Multi-Loader configuration tool into the inverter, without needing to remove the device from the packaging. Excellent durability under harsh environmental conditions (50 °C in continuous operation).
3. Schneider Electric VSDRIVE IP21 7.5KW 400V/480
The VSDRIVE IP21 frequency inverter from Schneider Electric is a powerful device designed for the operation of both asynchronous and synchronous motors. With a rated power of 7.5 kW and an operating voltage of 380 to 480 V, this frequency inverter is ideal for various industrial applications, particularly for controlling pumps and other motor-driven equipment. The inverter offers a maximum output frequency of 500 Hz and a minimum output frequency of 0.1 Hz, allowing for precise motor control. The integrated protection class IP21 ensures that the device is protected against dust and splashes, enhancing its reliability and longevity. Furthermore, the VSDRIVE supports various communication protocols, including Ethernet and MODBUS, facilitating integration into existing systems. With a compact design and a wall-mounting option, the frequency inverter is both space-saving and easy to install.
- Maximum output frequency of 500 Hz for precise motor control
- Supports various control types for asynchronous and synchronous motors
- Integrated communication interfaces such as Ethernet and MODBUS
- Overload capability of up to 150% for short periods
- Protection class IP21 for additional protection against environmental influences.
4. Schneider Electric ATV320 0.37KW 400V 3PH COMPACT VSD
Frequency inverter ATV320, compact. Dimensions 105 x 188 x 158 mm (with EMC plate), power 0.37 kW. Supply voltage 3-phase 380-500 V, 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation.
Description: Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe speed reduction (SLS), safe door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Simplest commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications.
Options for loading, editing, and saving the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated Class A radio interference filter, which can be deactivated. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched to digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.
5. Schneider Electric ATV320 4KW 400V 3PH BOOK VSD
Frequency inverter ATV320, book. Dimensions 60 x 325 x 245 mm, power 4 kW. Supply voltage 3-phase, 380-500 V 50/60 Hz with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation. Description: Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe reduced speed (SLS), safe door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Simplest commissioning, intuitive operation, and plug & drive, preset for the most common applications. Options for loading, editing, and saving the configurations of the inverter with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated Class A radio interference filter, deactivatable. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched to digital inputs. Integrated braking module enables 4-quadrant operation without retrofitting.

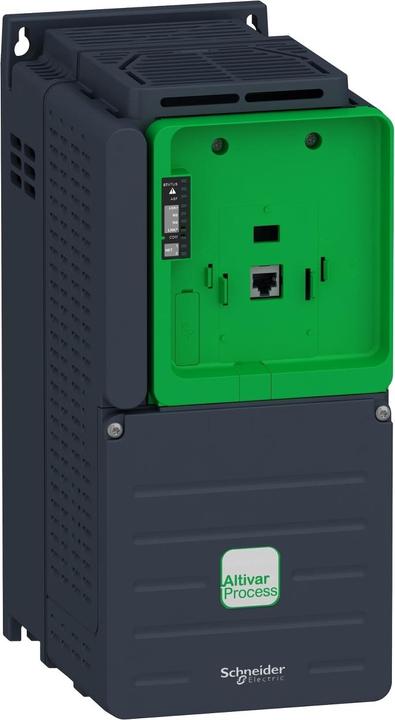

6. Schneider Electric ATV930D11N4Z ATV930 11 kW 380-480V 23.5A Frequency converter
Schneider ATV930D11N4Z frequency inverter.
Frequency converters
EUR1950,–
Schneider Electric ATV930D11N4Z ATV930 11 kW 380-480V 23.5A Frequency converter
7. Schneider Electric ATV320 1.5KW 400V 3PH COMPACT VSD
Frequency inverter ATV320, compact. Dimensions 105 x 188 x 158 mm (with EMC plate), power 1.5 kW. Supply voltage 3-phase 380-500 V, 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation.
Description: Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe reduced speed (SLS), safe door interlock (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Simplest commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications. Options for loading, editing, and backing up the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated Class A radio interference filter, deactivatable. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched as digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.
8. Schneider Electric ATV320 1.1KW 400V 3PH COMPACT VSD
Frequency inverter ATV320, compact. Dimensions 105 x 188 x 158 mm (with EMC plate), power 1.1 kW. Supply voltage 3-phase 380-500 V, 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation.
Description: Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe limited speed (SLS), safe door interlock (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Very easy commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications. Options for loading, editing, and saving the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools Simple-Loader and Multi-Loader. Integrated Class A radio interference filter, can be disabled. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched to digital inputs. Integrated braking module enables 4-quadrant operation without retrofitting.
9. Schneider Electric ATV930D18N4Z ATV930 18.5 kW 380-480V 39.2A Frequency converter
The Altivar ATV930D18N4Z frequency converter from Schneider Electric is a highly advanced solution for controlling motors with a power rating of 18.5 kW. It is designed for operation with a supply voltage of 380-480 V and offers a rated output current of 39.2 A. This frequency converter is equipped with a variety of features that enable precise control and monitoring of motors. Notable features include three analog inputs and two analog outputs, allowing for flexible adaptation to various applications. The ability to utilize up to 16 preset speeds, along with separate settings for acceleration and deceleration times ranging from 0.01 to 9999 seconds, makes it a versatile choice for different industrial requirements. Additionally, the ATV930 supports various communication protocols, facilitating integration into existing systems.
- Integrated services such as power measurement and energy dashboard
- Suitable for synchronous, asynchronous, and special motors
- Supports multiple communication protocols, including Modbus TCP and Ethernet/IP
- Certifications: UL, TÜV, CSA, REACH
- Protection class IP21 for additional protection against environmental influences.
Frequency converters
EUR2709,–
Schneider Electric ATV930D18N4Z ATV930 18.5 kW 380-480V 39.2A Frequency converter
10. Schneider Electric Frequency converter 1,5KW 240V 1-phase
ATV12 frequency inverter with heat sink. Power 1.5 kW. Supply voltage single-phase 200-240 V 50/60 Hz. Easy installation following the Plug & Drive principle, with its compact design, integrated functions, and its version on a base plate. Ideally suited for use in simple industrial machines as well as in certain consumer goods machinery. Numerous options for loading, editing, and saving the inverter configurations with various tools. For example, the commissioning software SoMove, the SoMove Mobile software for mobile phones, decentralized terminals, and the configuration tools Simple-Loader and Multi-Loader. Factory pre-set inverter for immediate commissioning. Loading and saving a configuration even in a de-energized state with the Multi-Loader configuration tool into the inverter, without needing to remove the device from the packaging. Excellent durability under challenging environmental conditions (50 °C in continuous operation).
