Best selling Fuses from Lindner
This page always stays fresh and updates automatically.

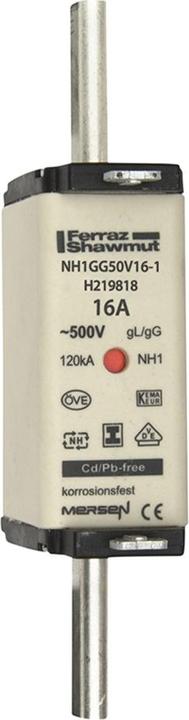

1. Lindner NH fuse link
The NH system is classified under plug-in fuse systems and consists of the following components: fuse base (possibly with connection covers and phase cover), fuse inserts with contact blades, and a device for replacing the fuse inserts (low-voltage plug-in handle). Maintenance and servicing must be carried out by qualified personnel. NH fuse inserts of the gG operating class are used to protect lines, devices, and systems. They reliably disconnect unacceptable overload currents and short-circuit currents up to the rated cutoff current. gG fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. VDE 0636 Part 201, IEC 60269-1 and -2.
2. Lindner LIN 8004.80056 NH fuse link Gr 4 800A 690VAC 62W aM
The NH system is classified as a plug-in fuse system and consists of the following components: fuse base (possibly with connection covers and phase cover), fuse inserts with contact blades, and a device for replacing the fuse inserts (low-voltage plug-in handle). Maintenance and servicing must be carried out by qualified personnel. NH fuse inserts of operational class aM are partial area fuses and protect electrical devices from destruction due to excessively high short circuits through their strong current limitation and low thermal withstand values. They disconnect currents greater than 6.3 x IN up to the maximum breaking capacity. NH fuse inserts aM are preferably used to protect systems and switching devices in motor circuits. When assigning NH inserts, the rated fuse current can be chosen to be equal to the motor rated current. VDE 0636 Part 201, IEC 60269-1 and -2.
3. Lindner LIN 2B389. NH fuse link Gr 3 630A 500VAC 40W
The NH system is classified under plug-in fuse systems and consists of the following components: fuse base (possibly with connection covers and phase covers), fuse inserts with contact blades, and a device for replacing the fuse inserts (low-voltage plug-in handle). Maintenance and servicing must be carried out by qualified personnel. NH fuse inserts of operating class aM are partial area fuses and protect electrical devices from destruction due to excessively high short circuits through their strong current limitation and low thermal withstand values. They disconnect currents greater than 6.3 x IN up to the maximum breaking capacity. NH fuse inserts aM are preferably used to protect systems and switching devices in motor circuits. When assigning NH inserts, the rated fuse current can be chosen to be equal to the rated motor current. VDE 0636 Part 201, IEC 60269-1 and -2.

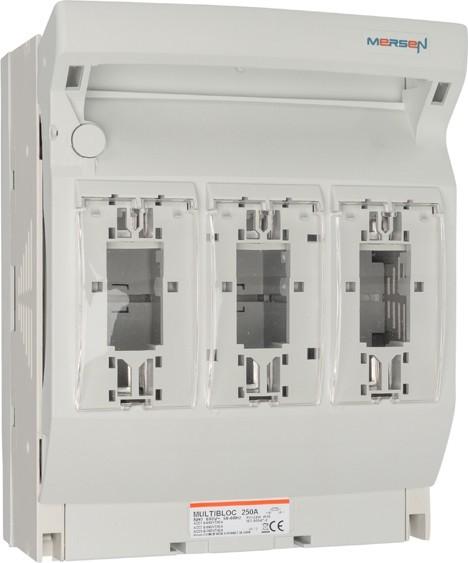

4. Lindner LIN S229878A MULTIBLOC 1.ST8 Gr. 1 / 250A, 3-pole Connection
Mersen NH-SI Load Break Switch 1.000.299
Manufacturer: Mersen
Designation: NH-SI Load Break Switch Size 1 250A/690V 3-pole
Type: 1.000.299
Configured as main switch: no
Configured as safety switch: no
Max. rated operational voltage Ue for AC: 690 V
Rated continuous current Iu: 250 A
Conditional rated short-circuit current Iq: 80 kA
Suitable for fuse inserts: NH1
Number of poles: 3
With fuse monitoring: no
Connection type for main circuit: screw connection
Cable entry: other
Equipped with connectors: no
Suitable for floor mounting: yes
Suitable for front mounting: no
Suitable for busbar installation: no
Design of the operating element: cover handle
Position of the operating element: front
Motor drive optional: no
Motor drive integrated: no
Configured as emergency stop device: no
Protection class (IP), front side: IP20
Mersen NH-SI Load Break Switch 1.000.299: additional details
The MULTIBLOC 1.ST8 product range includes NH fuse load break switches for 250 A. The products are available in different configurations and in 1-, 2-, 3-, and 4-pole versions. MULTIBLOC NH fuse load break switches of various sizes can be aligned with suitable covers, allowing for a common flat central cover. MULTIBLOC Size 1 is designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, Size 1, 250A. The system is a modular system, allowing for optimal combinations of different products. MULTIBLOC provides users with a quick and easy installation option as well as high safety during installation and maintenance. It is suitable for use in service connection boxes, meter distribution boards, measuring transformer cabinets, and telecom transmission stations.

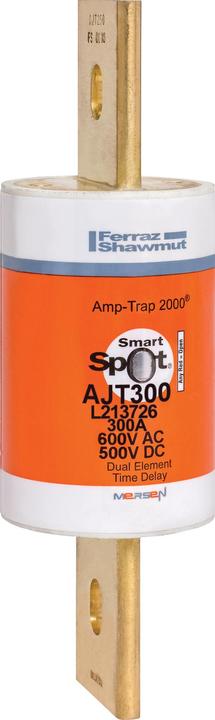

5. Lindner LIN L213726 AMP-TRAP 2000 Class J carrier AJT 54 x 181 AC600V 300A
Mersen Fuse Insert Class J AJT300
Manufacturer: Mersen
Designation: Fuse Insert Class J AJT 54x181 300A
Type: AJT300
Design: Other
Size: Other
Voltage Type: AC
Rated Current: 300 A
Rated Voltage: 600 V
Operating Class: Other
Operating Frequency: 50-60 Hz
Tripping Characteristic: J
Mersen Fuse Insert Class J AJT300: Additional Details
The Amp-Trap 2000 AJT fuse does not provide a display but features a visual open SmartSpot fuse indicator. With advanced material technology, this fuse is suitable for all types of loads and offers IEC Type 2 No-Damage protection for main, branch, and distribution circuits. It requires very little mounting space. AJTs have time-delay characteristics and are ideal for handling typical motor and transformer inrush currents while providing excellent current-limiting capability.
6. Lindner Fuse link
The NH system is classified under plug-in fuse systems and consists of the following components: fuse base (possibly with connection covers and phase cover), fuse inserts with contact blades, and a device for replacing the fuse inserts (low-voltage plug-in handle). Maintenance and servicing must be carried out by qualified personnel. NH fuse inserts of the gG operating class are used to protect lines, devices, and systems. They safely disconnect inadmissible overload currents and short-circuit currents up to the rated cut-off current. gG fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. VDE 0636 Part 201, IEC 60269-1 and -2.
7. Lindner 1700.013
Mersen Fuse Insert Neozed D01GG40V13
Manufacturer: Mersen
Designation: Fuse Insert Neozed D01 gG 13A/400V
Type: D01GG40V13
Size: D01
Rated Current: 13 A
Rated Voltage: 400 V
Color Code: black
Operating Class: gL/gG
Mersen Fuse Insert Neozed D01GG40V13: further details
The D0 fuse system is used in low-voltage installations where the fuse inserts are accessible to non-professionals and can be replaced by them. It is the most modern screw fuse system designed for 400VAC/250VDC. The sizes D01, D02, and D03 form the D0 system. D0 fuse inserts are used to protect cables and installations. They safely disconnect unacceptable overloads and short-circuit currents up to the rated tripping current. D0 fuse inserts of the operating class gG also protect electrical devices and installations from the electrodynamic effects of high short-circuit currents.
8. Lindner LIN W223740A NH fuse link spg. leading grip fl. KK
The NH system is classified under plug-in fuse systems and consists of the following components: fuse base (possibly with connection covers and phase covers), fuse inserts with contact blades, and a device for replacing the fuse inserts (low-voltage plug-in handle). Maintenance and servicing must be carried out by qualified personnel. NH fuse inserts of the gG operating class are used to protect lines, devices, and systems. They safely disconnect unacceptable overloads and short-circuit currents up to the rated disconnection current. gG fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. The rated power output values of the Mersen NH fuse inserts AC 400V are lower than the maximum values according to the standards IEC 60269-1 and -2, VDE 0636 Part 201.
9. Lindner LIN X1023129A MULTIVERT 160A/100mm, 3-pole switchable
Mersen Fuse Load Switch Bar 1.000.901
Manufacturer: Mersen
Designation: Fuse Load Switch Bar NH Size 00 160A 100mm
Type: 1.000.901
Designed as a main switch: no
Designed as a safety switch: no
Max. rated operational voltage Ue for AC: 690 V
Rated continuous current Iu: 160 A
Conditional rated short-circuit current Iq: 50 kA
Suitable for fuse inserts: NH00
Number of poles: 3
With fuse monitoring: no
Connection type main circuit: Rail connection
Cable entry: other
Equipped with connectors: no
Suitable for floor mounting: no
Suitable for front mounting: no
Suitable for busbar assembly: yes
Design of the operating element: Cover handle
Position of the operating element: front
Motor drive optional: no
Motor drive integrated: no
Designed as an emergency stop device: no
Protection class (IP), front side: IP20
Mersen Fuse Load Switch Bar 1.000.901: additional details
MULTIVERT NH fuse load switch bars fulfill all functions of an NH fuse load disconnect switch. The design is intended for direct mounting on busbars in a three-pole arrangement. The three-pole MULTIVERT 160A switch bars can be directly mounted on 100 and 185mm busbar systems. MULTIVERT 160A switch bars are designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, size 00, 160A. The system is a modular system, allowing for optimal combination of various products. MULTIVERT provides users with a quick and easy installation option as well as high safety during installation and maintenance. All MULTIVERT can be locked or sealed in a closed state with a padlock. This version is supplied with connection clamps for copper 4 to 70mm² and together with cable cover MZ00KH.

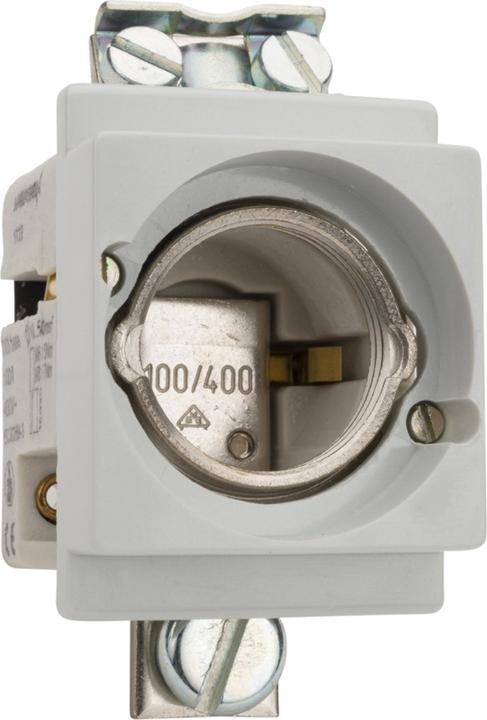

10. Lindner LIN 1722.47 NEOZED fuse base D03 100A 1p 230/400VAC
Mersen Fuse Base Neozed 01722.470000
Manufacturer: Mersen
Description: Fuse base Neozed D03 100A/AC230V/400V
Type: 01722.470000
Number of poles: 1
Size: D03
Material: Porcelain
Version with cover: yes
Mounting type: Snap fastening
Rated voltage: 230 V
Rated current: 100 A
The D0 fuse system is used in low-voltage installations where the fuse inserts are accessible to laypersons and can be replaced by them. It is the most modern screw fuse system designed for 400VAC/250VDC. The sizes D01, D02, and D03 form the D0 system. D0 fuse bases are used together with D0 fuse inserts to protect lines and installations. D0 fuse inserts safely disconnect excessive currents and short-circuit currents up to the rated disconnection current. They also protect electrical devices and installations from the electrodynamic effects of high short-circuit currents.
DIN VDE 0636-3, DIN EN 60722, EAN: 4086500012398.
