Best selling Junction boxes from Merten
On this page you’ll find a ranking of the best Junction boxes from Merten. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Merten Plug-in terminals
Merten Connection Box MEG1010-9019
Manufacturer: Merten
Description: Flush-mounted connection box for ovens with terminal blocks
Type: MEG1010-9019
Mounting type: Surface-mounted
Terminals: 5 x 2.5 mm²
Connection technology: Screwless
Material: Metal/plastic
Halogen-free: Yes
Color: Polar white
Suitable for protection class (IP): IP20
Device width: 112.25 mm
Device height: 22.6 mm
Device depth: 132.85 mm
The Merten Connection Box MEG1010-9019 is a connection box for ovens and appliances designed for flush mounting. It features a break-resistant cover and a snap closure. The connections include 5 terminal blocks (3-way) with release levers for solid and flexible conductors (without ferrules). The spacious connection area allows cable entry from any side. There are 2 cable entries from below with integrated strain relief. Mounting is done through screw and claw fastening for 60mm flush-mounted boxes, as well as through dowel fastening using additional holes in the corners.
Rated voltage: 450 V
Rated current: 32 A
Terminal rated cross-section: 2.5 mm²
Scope of delivery: Connection box with 5 x 3-way terminal blocks with release lever and claw.
Color: Polar white.
EAN: 4042811212148.
2. Merten Stove junction box AP white
The Merten appliance connection box in white is a reliable solution for connecting stoves and other devices. It is designed for surface mounting and features a robust construction with a break-resistant cover and a convenient snap closure. The box is equipped with screw and claw mounting, allowing for easy installation in 60mm and 70mm flush-mounted boxes. The spacious connection area ensures organized wiring, while the option for dowel mounting and top cable entry provides additional flexibility. The strain relief guarantees a secure connection, making the appliance connection box an ideal choice for indoor use.
- Break-resistant cover with snap closure
- Screw and claw mounting for easy installation
- Large, organized connection area for better handling
- Strain relief for secure connections.
3. Merten Appliance connection box 521044 w.triple division UP+AP white
Merten Device Connection Box PWS 521044
Manufacturer: Merten
Description: Device Connection Box PWS Surface-Mounted/Flush-Mounted
Type: 521044
Mounting Type: Surface-Mounted/Flush-Mounted
Terminals: 12 x 2.5 mm²
Connection Technology: Screw Terminal
Material: Metal/Plastic
Material Quality: Other
Halogen-Free: Yes
Color: White
RAL Number (similar): 1013
Suitable for Protection Class (IP): IP20
Device Width: 90 mm
Device Height: 167 mm
Device Depth: 59 mm
Merten Device Connection Box PWS 521044: Additional Details
2 break-resistant covers with snap closure, 3 removable terminal blocks with 12 double terminals. Large, clear connection spaces. Screw and claw fastening for 60mm and 70mm flush-mounted boxes (masonry, hollow wall, and concrete construction), with removable expansion claws. Doweling fastening is also possible. Color White.
EAN: 4011281292752.

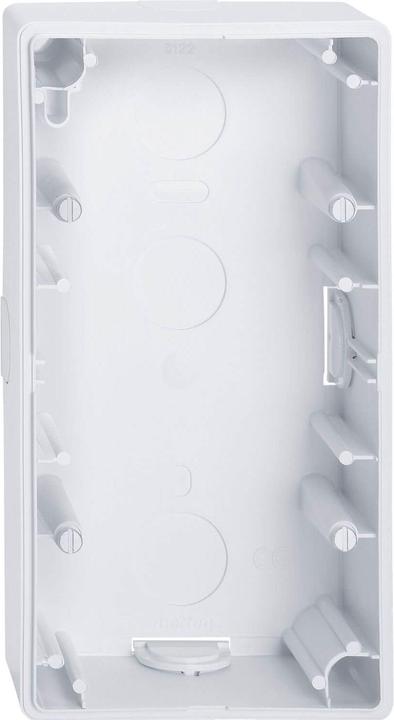

4. Merten EL ME 40241425
Merten AP Enclosure aws/gl 2-fold
Manufacturer: Merten
Type: MEG4024-1425
Assembly: Surface-mounted enclosure
Suitable for mounting over existing flush-mounted boxes: no
Suitable for modular installation switch programs: no
Number of units: 2
Mounting direction: horizontal and vertical
Shape: rectangular
Tabletop device: no
Material: Polyamide
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: antibacterial
Surface finish: glossy
Color: pure white
RAL number (similar): 9010
Transparent: no
With cover frame: no
With channel entry: yes
With cable entry: yes
With screw entry: no
With installation pipe entry: no
Impact-resistant: no
Protection class (IP): IP20
Rear entry: no
Device width: 80 mm
Device height: 151 mm
Device depth: 37 mm
Merten AP Enclosure aws/gl MEG4024-1425: additional details
With a closed bottom and guide grooves for partition walls. 4 pre-formed cable entries, sealed with blind plugs. Can be mounted on any building material.
Scope of delivery: Includes device mounting screws and cable entry. Color pure white glossy.
5. Merten Receptacle
Merten mounting box MEG3970-7504
Manufacturer: Merten
Designation: Mounting box screw fixing
Type: MEG3970-7504
Mounting type: Flush-mounted
Shape: Round
Design: Device junction box
Design: Single
With rotating ring: No
Couplable: Yes
Equipment: Other
Diameter: 70 mm
Length: 71 mm
Width: 71 mm
Depth: 55 mm
Internal depth: 70 mm
For number of service outlets: 1
Mounting of devices: Screw or spread
With screws: Yes
Housing feed-through through knock-out opening: Yes
Housing feed-through through sealing diaphragm: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
For pipe diameter: 25 mm
Suitable for cable diameter: 20-50 mm
Pipe locking: No
Pipe locking optional: No
Entry from rear: No
Number of entries: 2
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Green
Protection class (IP): IP3X
Protection class (NEMA): 1
Cover design: Without
Transparent cover: No
Cover fixing: Snap-on
Sealable: No
Function maintenance: Without
With shielding: No
Airtight: No
Terminal position-fixed: No
Luminaire hook fastening: No
Spigot: Without
With nail lugs: No
Special application: Without
Merten flush-mounting box MEG3970-7504: More details
With screw fastening for inserts and frames of the switch ranges PANZER or AQUADESIGN. The mounting box can be nailed to all formwork and offers the ideal solution for concrete construction with its large connection space and two M25 cable entries. Note: For pipe diameter M25, depth of the box 70 mm. Scope of delivery: With 2 fixing screws. EAN: 4042811167455.
6. Merten Accessories for electrical switches
Merten Surface-Mounted Enclosure 3f.pws 512319
Manufacturer: Merten
Description: Surface-Mounted Enclosure 3f.pws
Type: 512319
Configuration: Surface-mounted enclosure
Suitable for modular installation switch programs: no
Number of units: 3
Mounting direction: horizontal and vertical
Shape: rectangular
Material: Polyamide
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: polar white
RAL number (similar): 9010
Transparent: no
With cover frame: no
With channel entry: yes
With cable entry: yes
With screw entry: no
Impact-resistant: no
Protection class (IP): IP20
Device width: 80 mm
Device height: 224 mm
Device depth: 37 mm
Additional details: With closed bottom and guide grooves for partition walls. 4 pre-formed cable entries, sealed with blind plugs. Can be mounted on any building material.
Scope of delivery: Includes device mounting screws and cable entry. Color polar white. EAN: 4011281416103.
7. Merten AP housing
Merten surface-mounted housing 1f.ws/gl 519144
Manufacturer: Merten
Designation: Surface-mounted housing 1f.ws/gl
Type: 519144
Assembly: Surface-mounted housing
Suitable for modular installation switch ranges: No
Number of units: 1
Mounting direction: Horizontal and vertical
Shape: Other
Material: Polycarbonate
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Glossy
Colour: White
RAL number (similar): 1013
Transparent: No
With cover frame: No
With duct entry: Yes
With cable entry: Yes
Impact-resistant: No
Protection class (IP): IP20
Device width: 80 mm
Device height: 80 mm
Device depth: 42 mm
Further details:
Accessories: Strain relief SURFACE 510501, trunking entry (15 mm) SURFACE 5350xx
Scope of delivery: With device fixing screws and cable entry.
Colour: White glossy.
EAN: 4042811093525.

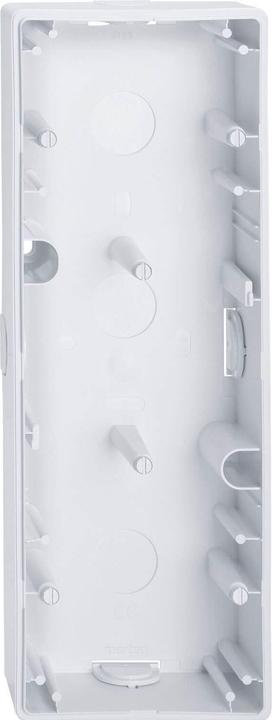

8. Merten Surface-mounted housing, 3-gang, active white MEG4034-1425
The surface-mounted housing MEG4034-1425 from Merten is a practical solution for the installation of electrical devices in various environments. With a closed bottom and guide grooves for partition walls, it offers secure and tidy mounting. The housing is equipped with four pre-formed cable entries that can be closed with blanking plugs, enhancing flexibility during installation. It is suitable for mounting on all types of building materials and comes with the necessary device mounting screws as well as a cable entry. The glossy active white surface provides an appealing look and harmoniously integrates into various room designs.
- Pre-formed cable entries with blanking plugs for flexible installation
- Suitable for mounting on all types of building materials
- Halogen-free material for increased safety
- Protection class IP20 for indoor use.

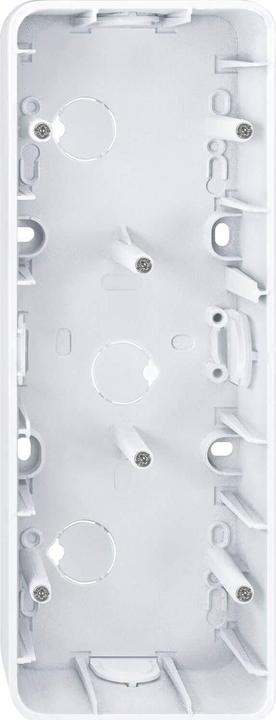

9. Merten Surface-mounted housing, 3-gang, active white 519325
The surface-mounted housing from Merten, model 519325, is a practical solution for the installation of electrical devices in residential and commercial spaces. With its active white, glossy finish, it harmoniously integrates into various interior designs. The housing is designed for horizontal mounting and offers space for up to three inlets, allowing for flexible use. Made from high-quality thermoplastic, the housing is characterized by its robustness and durability. Additionally, it is antibacterial and halogen-free, ensuring extra safety and hygiene standards. Easy installation is supported by the included device mounting screws and the convenient cable entry. This product is ideal for anyone seeking a reliable and aesthetic solution for their electrical installations.
- Antibacterial properties for enhanced hygiene
- Made from halogen-free thermoplastic
- Suitable for horizontal mounting with three inlets
- Protection class IP20 for indoor use.
