Best selling Motion sensors from Esylux
This page always stays fresh and updates automatically.
1. Esylux Motion detector MDC360i/8 white
Motion detector with a 360° detection range for ceiling mounting. Range of up to 8 meters in diameter at a recommended mounting height of 3 meters (maximum mounting height 5 meters) for use in small rooms and passageways with little or no daylight. 16 A high-performance relay, specially designed for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. Factory-set program for immediate operational readiness. Automatic light control for applications with little or no daylight. Easy programming via remote control with "blue mode" technology or via adjustment elements. Integrated switch for setting via remote control or adjustment knob - prevents misuse and acts as sabotage protection. Suppression of interference sources by reducing sensitivity via DIP switch. Additional button.
2. Esylux MD-C 360i/6 mini
Mini motion detector with a 360° detection range for ceiling installation and wall mounting, designed for demand-based lighting control, leading to a noticeable reduction in energy costs. The range extends up to 6 meters in diameter, making it suitable for use in small rooms, passageways, restrooms, small offices, or hallways with little to no natural light. A pre-set factory program ensures immediate operational readiness. Programming is easily done via remote control. The detection range can be expanded by connecting up to 5 detectors in parallel. The compact size requires only a 20 mm diameter installation hole. The IP 65 rating allows for installation in damp areas. A fixed connection cable of 20 cm length is included. The new universal ESYLUX clamping technology enables quick installation in ceilings, branded switch frames, luminaires, flush-mounted boxes, cabinets, etc. Ceiling installation in suspended ceilings is done using the included spring clips or a clamping ring. The motion detector is compatible with branded switches for wall installation.
3. Esylux ESY PDC360i/8 mini recessed ceiling presence detector
Mini presence detector with a 360° detection range for flush mounting, designed for demand-based control of lighting, which significantly reduces energy costs. It has a detection range of up to 8 meters in diameter and features a 16 A high-performance relay, particularly suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, and energy-saving lamps. The device comes with a permanently stored factory setting program for immediate readiness and offers automatic light control based on presence and daylight. Simple programming is possible via remote control. Its compact design requires only a drill hole size of 25 mm in diameter and includes a fixed connection cable of 60 cm in length. The new universal ESYLUX clamping technology allows for quick installation in suspended ceilings, luminaires, flush-mounted boxes, cabinets, etc. It is designed for flush mounting in suspended, closed ceilings with closed spring clips or a clamping ring and features an additional push-button input.
4. Esylux Motion detector 230 degrees RC 230i br
Motion detector with a detection range of 230° and a wide range. It features a 360° anti-creep protection for seamless detection, which can be disabled via remote control. The device is programmable via the remote control and allows functions such as permanent light on/off and automatic reading of the current light level. A permanently stored factory settings program ensures immediate readiness for operation. An integrated selection switch prevents user errors by enabling test function, remote control, and potentiometer adjustment. It has a one-hand plug base mount and a double membrane conduit connection. The concealed connection base offers ample space for wiring, and the adjustment of the sensor area is supported by an additional focus LED. Retractable adjustment elements prevent unintentional changes to the parameters. Wall or ceiling mounting is possible without accessories, thanks to a swiveling joint. Individual areas can be covered with the included cover cap, which can be cut to size. A special base for mounting in indoor and outdoor corners is available as an accessory.
5. Esylux Presence detector PDFLAT 360i/8 SW KNX
KNX design recessed ceiling presence detector with a 360° field of detection. Range of approximately 8 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m). Can be used in the KNX (EIB) bus system, TP (2-wire bus) in connection with other KNX components. Parameter and function setting via ETS (Engineering Tool Software). Manual, temporary switching/dimming via user remote control. Communication objects include constant light control or switching, heating, ventilation and air conditioning (HVAC), blocking object for HVAC, output light value (2 byte), status message, presence output for HVAC, usable as "master" or "slave," KNX push button control for light channels, fully or semi-automatic, orientation light with 2 selectable light values (10% - 50%), test mode, correction factor for room light, and sensitivity sensor adjustable from 1 to 4. Standard version as flush-mounted.
6. Esylux PD BasicCeilingPresenceDetector
Presence detector with a 360° detection range for ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m. 10 A high-performance relay. Zero point switching extends the lifespan of relays and lamps in electronic ballasts, such as fluorescent lamps and LEDs, by gently switching at the zero point. Factory setting for immediate readiness for operation. Automatic light control depending on presence and daylight. Additional push-button input. Standard version as a surface-mounted device, also available as a recessed ceiling mount with accessories. Extension of the detection range through parallel connection. Targeted dimming of areas using an included lens mask.
7. Esylux Motion detector MD 120
Motion detector with a 120° detection range for convenient lighting control. Single-hand plug socket mounting for quick and easy installation. Double membrane cable entry. Connection socket with a large wiring space and cable entry options from above, below, or from the back. Included terminal block for wiring the protective conductor. Adjustment of detection and range through swivel and tilt ball head technology. Zero-cross switching: Extends the lifespan of relays and light sources with electronic ballasts (e.g., fluorescent lights, LEDs) by gentle switching at the zero crossing. Suitable for wall mounting. Special socket for indoor and outdoor corner mounting available as an accessory.
8. Esylux RC 230i
Motion detector with a detection range of 230° and a large range. It features a 360° anti-creep protection for uninterrupted detection, which can be disabled via remote control. The device is remote controllable and allows functions such as continuous on and off switching of the light, as well as automatic reading of the current light value. A permanently stored factory setting program ensures immediate readiness for operation. User errors are prevented by an integrated selector switch for test function, remote control, and potentiometer adjustment. It has a one-hand plug base mount and a double-sprung cable entry. The concealed connection box provides ample space for wiring. Adjusting the sensor area is facilitated by an additional focus LED as a setting aid. Retractable adjustment elements prevent unintentional changes to the parameters. Wall or ceiling mounting is possible without accessories due to the swivel joint. Individual areas can be masked with the included cover cap, which can be cut to size. A special base for mounting in indoor and outdoor corners is available as an accessory.
9. Esylux Contact PUSH BUTTON x4 DALI-2 WH
The Contact Push Button x4 DALI-2 WH from Esylux is a versatile 4-button switch that functions as a certified DALI-2 input device. It allows for individual function assignment via an Application Controller, enabling flexible adaptation to various requirements. The buttons can be labeled as desired to enhance user-friendliness. Power is supplied through the DALI bus, facilitating easy integration into existing systems. The switch is designed for flush mounting and fits into standard 55 mm frames, making it a practical solution for modern buildings.
- Certified DALI-2 input device for flexible control
- Individual function assignment and labeling of buttons
- Easy integration into existing systems via DALI bus.

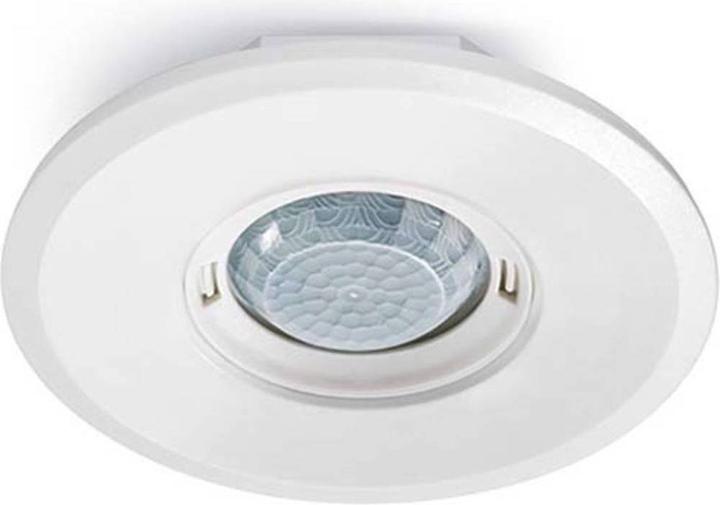

10. Esylux Presence detector UP white
The Esylux presence detector UP in white is an innovative device designed for reliable motion detection in indoor spaces. With a detection angle of 360 degrees and a range of up to 8 meters, this presence detector provides comprehensive monitoring of the room. Its flat optics and appealing design allow for harmonious integration into various room styles. The detector is suitable for flush-mounted and ceiling-mounted installation and can be used in both residential and commercial spaces. Thanks to the zero-cross switching, the presence detector is optimally suited for use with LED lights, making it an energy-efficient choice. The master/slave parallel connection option expands its application possibilities and ensures flexible installation. Additionally, the presence detector is smart home compatible and can be conveniently controlled via a remote control.
- Detection angle of 360 degrees for comprehensive motion detection
- Range of up to 8 meters
- Optimized for use with LED lights through zero-cross switching
- Master/slave function for flexible installation
- Compatible with smart home systems.
