Best selling Motor controllers from ABB
This page always stays fresh and updates automatically.
1. ABB 18A Softstarter with Overload
Phase: 3
Rated current: 18 A
Operating voltage: 600 V
Control voltage: 100 – 250 V
Power: 5.5 kW
Protection class: IP00, IP20
Overall length: 245 mm
Overall width: 90 mm
Overall depth: 185.5 mm
Minimum operating temperature: -25 °C
Maximum operating temperature: +60 °C
Series: PSE
PSE Soft Starter. The starters of the PSE series are the world's first compact soft starters with torque control. This makes the PSE series an excellent choice for pump applications, where water hammer is typically a major issue. With its compact design and advanced features, the PSE is also an extremely efficient solution for other common applications such as compressors and fans. Wide rated operating voltage range: 208–600 V AC. Wide rated control voltage range: 100–250 V, 50/60 Hz. Rated operating current: 18 to 370 A. Wide ambient temperature range: -25 to +60 °C. Coated circuit boards for reliable operation in harsh environments. Integrated bypass in all sizes to save energy and reduce installation time. User-friendly MMS with illuminated, language-neutral display and four-button keypad. Torque control for excellent pump control. Current limiting, adjustable in the range of 1.5–7 x Ie. Motor overload protection with classes 10A, 10, 20, and 30. Motor underload protection to detect pump dry running. Start rotor protection to detect jammed pumps. Kick-start to get jammed pumps or conveyor belts running. Advanced algorithm to eliminate the DC component for excellent starting behavior.

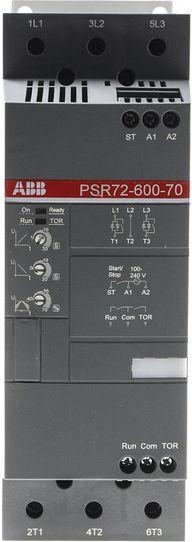

2. ABB PSR Softstart 37kW 72A
Phase: 3
Supply Voltage: 208 → 600 V
Rated Current: 72 A
Operating Voltage: 600 V
Control Voltage: 100 → 240 Vac
Power: 37 kW
Protection Class: IP10, IP20
Overall Length: 180 mm
Overall Width: 70 mm
Overall Depth: 220 mm
Minimum Operating Temperature: -25 °C
Maximum Operating Temperature: +60 °C
Series: PSR
Connection kit for PSR soft starters. This series covers motor currents from 3 to 105 A for connecting PSR soft starters to MS motor starters. With their compact design, the PSR soft starters are ideal for installations in spaces with limited availability and for systems where easy installation is required. All sizes include an operating signal relay, while sizes from 25 A also feature an output signal for TOR (Top of Ramp), meaning full voltage. Under standard performance conditions, the PSR soft starters can perform 10 starts per hour. When using an additional fan, the starting capacity increases to 20 starts per hour.
3. ABB PSR60-600-11 - 60A Softstarter 30kW
Phase = 3
Supply Voltage = 600 V
Rated Current = 60 A
Operating Voltage = 208 → 600 V ac
Control Voltage = 24 V ac/dc
Power = 37 kW
Protection Class = IP10
Overall Length = 70 mm
Overall Width = 180 mm
Overall Depth = 220 mm
Operating Temperature min. = -20 °C
Operating Temperature max. = +60 °C
Series = PSR
PSR – Compact Soft Starter. The PSR series is ABB's most compact series of soft starters. The compact PSR series allows for the installation of multiple devices in the same housing. Setting up the PSR series is straightforward and is done via the three clearly labeled potentiometers on the front. The integrated bypass in all sizes not only saves energy but also ensures the most compact design of ABB soft starters and reduces installation time. Due to the reduced heat generation, the soft starter can be installed in enclosures with a high IP protection class. Wide rated operating voltage range: 208–600 V. Rated control supply voltage: 24 V ac/dc or 100–240 V ac. Rated operating current: 3–105 A. Settings via potentiometer. Operating signal relay on all devices. Integrated bypass to save energy and reduce installation time. Advanced algorithm to eliminate the DC component for excellent starting behavior. DIN rail mounting for PSR3 to PSR45. Screw mounting for all sizes.
4. ABB PSR85-600-11 - 85A Softstarter 45kW
Phase: 3
Supply Voltage: 600 V
Rated Current: 85 A
Operating Voltage: 208 – 600 V ac
Control Voltage: 24 V ac/dc
Power: 55 kW
Protection Class: IP10
Overall Length: 70 mm
Overall Width: 180 mm
Overall Depth: 220 mm
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: +60 °C
Series: PSR
PSR – Compact Soft Starter. The PSR series is the most compact series of soft starters from ABB. The compact PSR series allows for the installation of multiple devices in the same housing. Setting up the PSR series is straightforward and is done via the three clearly labeled potentiometers on the front. The integrated bypass in all sizes not only saves energy but also ensures the most compact design of ABB soft starters, reducing installation time. Due to the reduced heat generation, the soft starter can be installed in housings with a high IP protection class. Wide rated operating voltage range: 208–600 V. Rated control supply voltage: 24 V ac/dc or 100–240 V ac. Rated operating current: 3–105 A. Settings via potentiometer. Operating signal relay on all devices. Integrated bypass to save energy and reduce installation time. Advanced algorithm to eliminate the DC component for excellent starting behavior. DIN rail mounting for PSR3 to PSR45. Screw mounting for all sizes.
5. ABB PSR soft starter 3-phase 30 KW, 600 V ac / 60 A
ABB Stotz S&J Soft Starter PSR60-600-70
Manufacturer: ABB Stotz S&J
Designation: Soft Starter 100-240VAC
Type: PSR60-600-70
Rated operational current Ie at 40 °C ambient temperature: 60 A
Rated operational voltage Ue: 208..600 V
Rated power for three-phase motor, standard circuit, at 230 V: 15 kW
Rated power for three-phase motor, standard circuit, at 400 V: 30 kW
Function: one direction of rotation
Internal bypass: yes
With display: no
Torque control: no
Rated ambient temperature without derating: 40 °C
Rated control supply voltage Us at AC 50 Hz: 100..240 V
Rated control supply voltage Us at AC 60 Hz: 100..240 V
Type of voltage for operation: AC
Integrated overload protection for the motor: no
Tripping class: adjustable
Protection class (IP): IP10
Protection class (NEMA): 1
The PSR series of soft starters includes the most compact soft starters, allowing for the design of compact starting devices. The system concept with motor protection switches and the products of the PSR series provides a significantly more compact starting solution than, for example, a star-delta starter. Integrated bypass relays reduce energy losses and simplify connections, while setup is incredibly easy thanks to the limitation to just three potentiometers. The optimized ramp characteristics ensure very smooth starting and stopping under all operating conditions. PSR with Us = 100-240V AC, EAN: 7320500362594.
6. ABB PSTX720-600-70
The PSTX soft starters provide complete motor protection in a single device and operate effectively even in the presence of load or network irregularities. Motor protection is ensured through PT-100, residual current protection, overvoltage and undervoltage protection, as well as additional features. Various start, stop, and torque adjustment options allow for precise customization to the specific application. For example, the pump cleaning function can alternately reverse the pump flow, thereby freeing the pump impeller from contamination. The slow forward and reverse jog operation increases flexibility, for instance, when operating conveyors and cranes. A built-in bypass ensures energy efficiency by reducing heat generation during operation. The display and menu navigation are user-friendly.
7. ABB Soft starter
The softstarter PSE30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208 to 600 V AC. The rated control voltage is between 100 and 250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or torque ramp. It has a built-in bypass for easy installation and energy saving. A RUN, TOR, and event signal is available from a relay output in normally open state. The PSE has functions such as current limit, kickstart, analog output, end of line, underload, and locked rotor protection. To interact with PSE, it has an illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs for start/stop or by resetting a fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a fieldbus plug. PSE is a true general-purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. It is very suitable for small to medium-sized three-phase motors with nominal currents from 18 to 370 A. Typical applications include pumps, fans, compressors, and conveyors.
8. ABB Motor drive
The ABB motor drive, model 1SDA104905R1, is a high-quality accessory for electrical installations designed for reliable performance in various applications. With an operating voltage of 220 to 250 V AC/DC, this motor drive offers a flexible solution for different requirements. Made in Italy, the product is characterized by its robust construction and durability. The motor drive is lightweight and compact, making installation and handling easier. The careful design ensures high efficiency and reliability, which are essential for modern electrical installations. This product is ideal for professionals looking for a powerful and dependable motor drive that can be used in various environments.
- Operating voltage of 220 to 250 V AC/DC
- Made in Italy for high quality and reliability
- Robust construction for a long lifespan.
9. ABB OX6X130 shaft length 130mm shaft-ř 6mm 1SCA111460R1001
10. ABB PSR6-600-11 - 6A Softstarter 3kW
Phase: 3
Supply Voltage: 600 V
Rated Current: 6.8 A
Operating Voltage: 208 – 600 V AC
Control Voltage: 24 V AC/DC
Power: 4 kW
Protection Class: IP20
Overall Length: 45 mm
Overall Width: 114 mm
Overall Depth: 140 mm
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: +60 °C
Series: PSR
PSR – Compact Soft Starter. The PSR series is ABB's most compact series of soft starters. The compact PSR series allows for the installation of multiple devices in the same housing. Setting up the PSR series is simple and done via the three clearly labeled potentiometers on the front. The integrated bypass in all sizes not only saves energy but also ensures the most compact design of ABB soft starters, reducing installation time. Due to the reduced heat generation, the soft starter can be installed in enclosures with high IP protection ratings. Wide rated operating voltage range: 208–600 V. Rated control supply voltage: 24 V AC/DC or 100–240 V AC. Rated operating current: 3–105 A. Settings via potentiometer. Operating signal relay on all devices. Integrated bypass to save energy and reduce installation time. Advanced algorithm to eliminate the DC component for excellent starting performance. DIN rail mounting for PSR3 to PSR45, screw mounting for all sizes.
