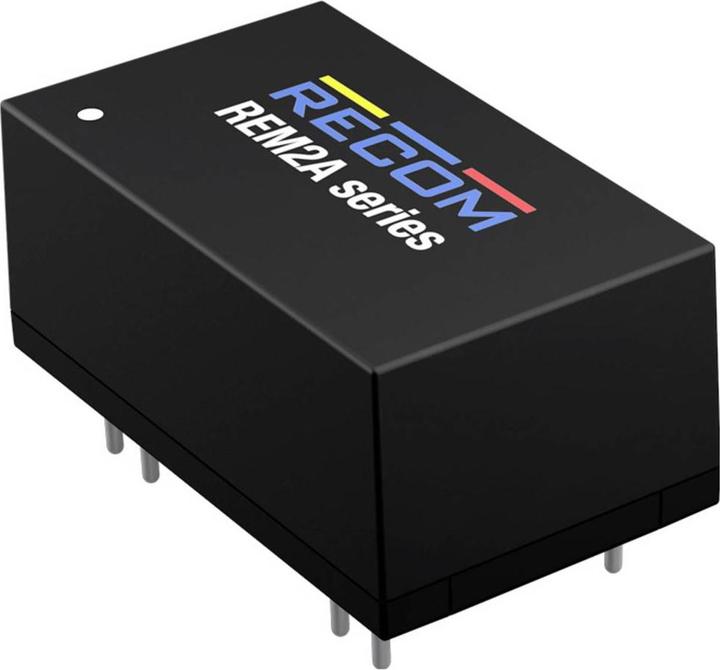

1. Recom REM2A-1205S DC/DC-Wandler 0.4 A 2 W Inhalt 1 St.
The regulated DC/DC converters of the REM2A series for the medical sector feature reinforced 250VAC continuous isolation with a creepage/clearance distance of ≥8mm. The compact DIP16/SMD package offers pinouts according to industry standards with strictly regulated single/dual outputs, as well as UVLO, SCP, and OVP. The operating temperature range extends from -40°C to +90°C without derating. The converters are UL marked and certified according to IEC, EN, and ANSI/AAMI 60601 3rd Ed. safety and 4th Ed. EMC medical standards, as well as IEC, EN, UL 62368-1 industrial standards. The low leakage current of 2 μA complies with the limits for medical applications in categories B, BF, and CF according to IEC 60601-1.

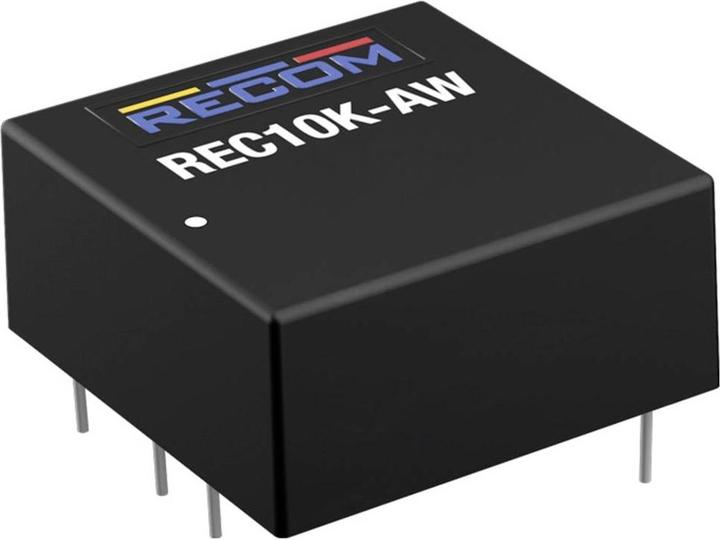

2. Recom REC10K-2412SAW/H2 DC/DC-Wandler Print 24 V 12 0.833 A 10 W Anzahl Ausgänge 1 x
The REC10K-2412SAW/H2 DC/DC converter is a compact and powerful device that provides an output voltage of 13.2 volts with a maximum output power of 10 watts. With an input voltage range of up to 36 volts, this unit is ideal for various applications where reliable voltage conversion is required. The converter has an output current of 0.833 amperes and weighs only 15 grams, making it a practical choice for space-saving installations. Its compact dimensions of 10.2 mm in height, 25.4 mm in width, and 21.8 mm in length allow for easy integration into different systems. This DC/DC converter is suitable for a wide range of applications that require a stable and efficient power supply, providing a reliable solution for voltage adjustment in electronic devices.
Power inverters
EUR24,90
Recom REC10K-2412SAW/H2 DC/DC-Wandler Print 24 V 12 0.833 A 10 W Anzahl Ausgänge 1 x
3. Recom AC/DC-Wandler 0.33 A
The AC/DC converter from Recom, model RAC04NE-K, is a highly robust module designed for a maximum power range of 4 to 6 watts. This device has been specifically developed for continuous operation under extreme conditions, providing reliable performance at temperatures ranging from -40°C to 80°C. It is suitable for all common single-phase AC networks worldwide, including 100/115/200/230/277 VAC. The high surge voltage withstand capability of 2 kV (L-N) and 4 kV (L-PE) exceeds the standards for modules of this size. Additionally, an integrated emission filter allows for system integration according to EN55032 "B", which is particularly beneficial for sensitive electronics. The converter is available in a potted version as well as in a wired mechanical design with IP65 water resistance, which is approved according to IEC61347.
- Robust for extreme temperatures from -40°C to 80°C
- High surge voltage withstand capability of 2 kV (L-N)
- Integrated emission filter for sensitive electronics
- Available in potted and wired versions with IP65.
4. Recom R-78T5.0-1.0/AC-TRAY DC/DC-Wandler SMD 5 V 1 A 5 W Inhalt 1 St.
The R-78T5.0-1.0/AC-TRAY DC/DC converter from Recom is a compact and powerful voltage converter suitable for various applications in electronics. With an output power of 5 watts and an output current of 1 ampere, this device delivers a stable output voltage of 5 volts. The converter is designed in an SMD (Surface-Mount Device) format, allowing for easy integration into modern circuit board designs. The input voltage can be up to 42 volts, providing high flexibility for use in different circuits. With dimensions of 27.2 mm in width, 10 mm in height, and 23 mm in length, the converter is compact and lightweight, weighing only 4.5 grams. These features make the R-78T5.0-1.0/AC-TRAY an ideal choice for applications that require a reliable power supply without taking up much space on the board.

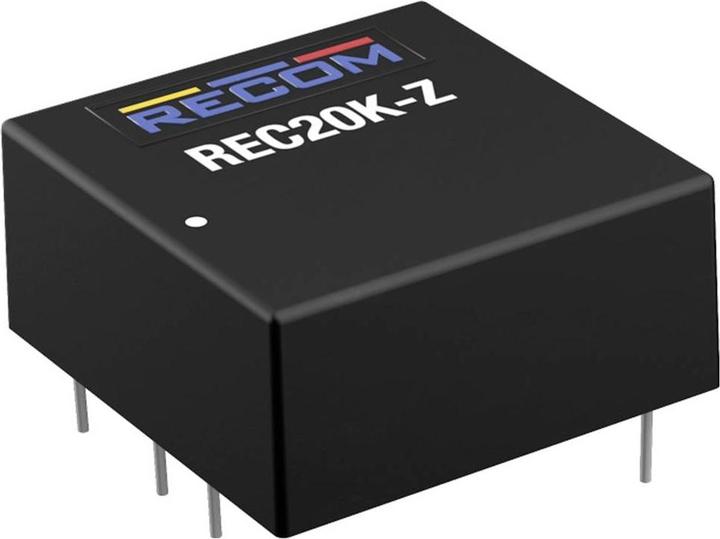

5. Recom REC20K-4805SZ DC/DC-Wandler Print 48 V 5 4 A 20 W Anzahl Ausgänge 1 x Inhalt 1
The RECOM REC20K-4805SZ DC/DC converter is a compact and powerful solution for voltage conversion. With an input voltage of 48 V and a stable output voltage of 5 V, this converter offers a maximum output power of 20 W and an output current of up to 4 A. The design is intended for easy integration into various applications, with dimensions of 2.54 cm in width, 2.18 cm in length, and 1.02 cm in height allowing for space-saving installation. A standout feature of this converter is the ability to adjust the output voltage as needed, making it particularly flexible for different use cases. Weighing only 18 grams, it is also lightweight and easy to handle.
- Adjustable output voltage for flexible applications
- Compact design for easy integration
- High efficiency with an output power of 20 W.
Power inverters
EUR31,90
Recom REC20K-4805SZ DC/DC-Wandler Print 48 V 5 4 A 20 W Anzahl Ausgänge 1 x Inhalt 1
6. Recom REC20K-2412DZ DC/DC-Wandler Print 24 V 12 0.833 A 20 W Anzahl Ausgänge 2 x
The RECOM REC20K-2412DZ is a powerful DC/DC converter that transforms an input voltage of 24 V into a stable output voltage of 12 V. With a maximum output power of 20 W and an output current of 0.833 A, this device is ideal for applications that require a reliable power supply. The converter is compact and lightweight, making it a practical choice for various electronic projects. With two outputs, it offers additional flexibility for powering multiple components. The robust construction and high efficiency make the REC20K-2412DZ an excellent choice for industrial and commercial applications.
- High efficiency in voltage conversion
- Compact design for easy integration
- Two outputs for flexible application possibilities.
Power inverters
EUR31,90
Recom REC20K-2412DZ DC/DC-Wandler Print 24 V 12 0.833 A 20 W Anzahl Ausgänge 2 x
7. Recom REM4A-0505S DC/DC-Wandler 0.7 A 4 W Inhalt 1 St.
The regulated DC/DC converters of the REM2A series for the medical sector feature reinforced 250VAC continuous isolation with a creepage/clearance distance of ≥8mm. The compact DIP16/SMD housing offers pinouts according to industry standards with strictly regulated single/dual outputs, as well as UVLO, SCP, and OVP. The operating temperature range extends from -40°C to +90°C without derating. The converters are UL marked and certified according to IEC, EN, and ANSI/AAMI 60601 3rd Ed. safety and 4th Ed. EMC medical standards, as well as IEC, EN, UL 62368-1 industrial standards. The low leakage current of 2 μA complies with the limits for medical applications in the B, BF, and CF areas according to IEC 60601-1.

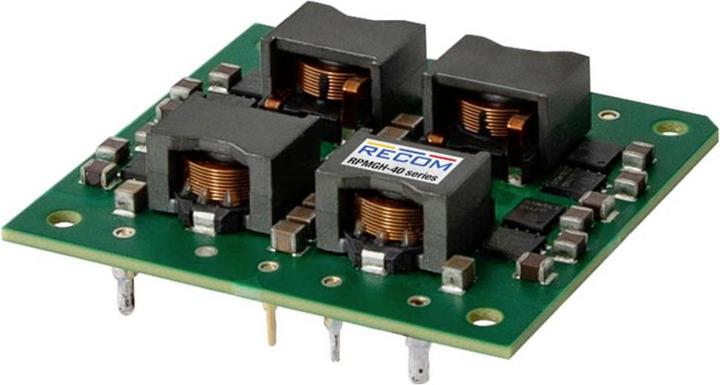

8. Recom RPMGH5.0-40 DC/DC-Wandler Print 5 V 40 A 200 W Inhalt 11 St.
The RECOM RPMGH5.0-40 DC/DC converter is a reliable solution for voltage conversion in various applications. With an input voltage of up to 18 volts and a stable output voltage of 5 volts, this converter provides an output power of 200 watts and a maximum output current of 40 amperes. Its compact design allows for easy integration into existing systems, while its lightweight of 49 grams facilitates handling and installation. The converter is suitable for a wide range of electrical applications, ensuring efficient and stable performance. With a quantity of 11 pieces, this product is ideal for projects requiring multiple units.
- Input voltage of up to 18 volts for flexible applications
- Maximum output power of 200 watts for high demands
- Compact design with a weight of only 49 grams
- Suitable for a variety of electrical applications.

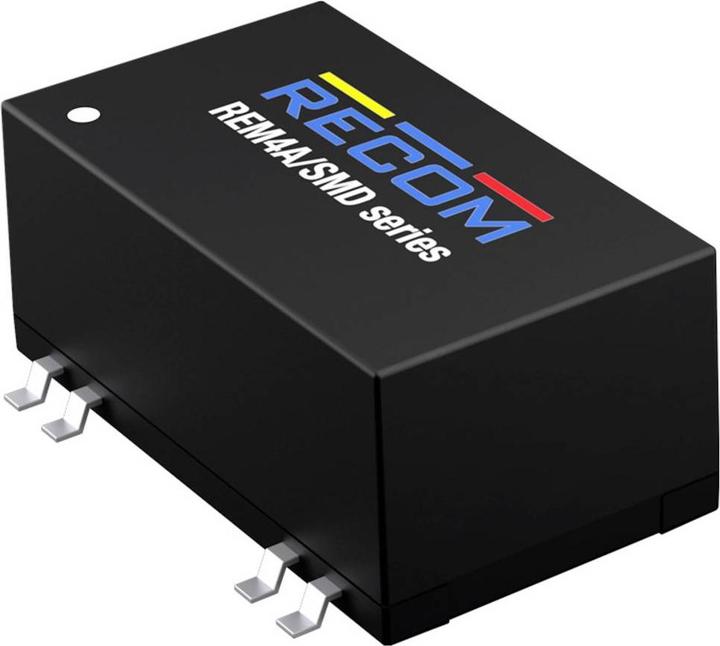

9. Recom REM4A-1212S/SMD DC/DC-Wandler 0.292 A 4 W Inhalt 1 St.
The regulated DC/DC converters of the REM2A series for medical applications feature reinforced 250VAC continuous isolation with a creepage/clearance distance of ≥8mm. The compact DIP16/SMD package offers pinouts according to industry standards with tightly regulated single/double outputs, as well as UVLO, SCP, and OVP. The operating temperature range extends from -40°C to +90°C without derating. The converters are UL marked and certified according to IEC, EN, and ANSI/AAMI 60601 3rd Ed. safety and 4th Ed. EMC medical standards, as well as IEC, EN, UL 62368-1 industrial standards. The low leakage current of 2 μA complies with the limits for medical applications in the B, BF, and CF categories according to IEC 60601-1.

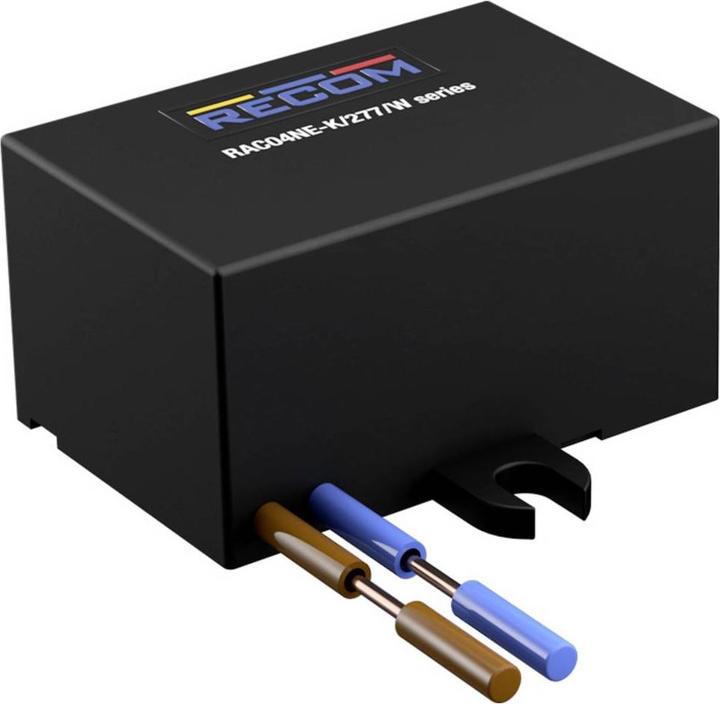

10. Recom AC/DC-Wandler 0.8 A AC/DC-Wandler 0.8 A
The AC/DC converter with a maximum output power of 4 W is a reliable device suitable for various applications in electronics. With a maximum output current of 0.8 A and an output voltage of 5 V, this converter provides a stable and efficient power supply. It is designed to operate in a wide temperature range of -40 °C to +85 °C, making it ideal for use in demanding environments. The converter meets the IP65 protection rating, which means it is dust-tight and protected against water jets. This enhances its durability and reliability in various applications. The long operational lifespan of up to 110,000 hours and the high MTBF of 2,260,000 hours emphasize the quality and robustness of this product.
- IP65 protection rating for dust and water resistance
- Operating temperature range of -40 °C to +85 °C
- Long operational lifespan of 110,000 hours
- High MTBF of 2,260,000 hours
- Suitable for mains frequencies of 50/60 Hz.
