Best selling Residual-current devices from Schneider
On this page you’ll find a ranking of the best Residual-current devices from Schneider. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Schneider M9U21170
The M9U21170 circuit breaker from Schneider is a reliable and safe device designed for use in electrical installations. With a type C tripping characteristic and a rated voltage of 277 volts, this miniature circuit breaker provides protection against overload and short circuits. It is suitable for alternating current applications and meets the requirements of the UL489 and IEC 60947-2 standards. The thermal-magnetic technology of the tripping unit ensures precise and rapid response to electrical disturbances. With a breaking capacity of 10 kA, the M9U21170 can operate safely even under high fault currents. This circuit breaker is an ideal choice for applications where safety and reliability are of utmost importance.
- Thermal-magnetic tripping unit for precise response to disturbances
- Breaking capacity of 10 kA for high safety
- Suitable for alternating current applications up to 277V
- Two poles for flexible installation options.
2. Schneider C12F3TM125L
Schneider Electric compact circuit-breaker C12F3TM125L
Manufacturer: Schneider Electric
Designation: Compact circuit-breaker ComPacT NSXm 125 A
Type: C12F3TM125L
Rated uninterrupted current Iu: 125 A
Rated voltage: 690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz: 36 kA
Overload release current setting: 87.5...125 A
Setting range of the instantaneous short-circuit release: 1250 A
Integrated earth-fault protection: No
Type of connection main circuit: Screw connection
Type of device: Built-in device fixed installation technology
Suitable for top-hat rail mounting: Yes
Top-hat rail mounting optional: No
With trip indicator: Yes
Number of poles: 3
Position of connection for main circuit: Front
Design of operating element: Toggle
Complete device with protection unit: Yes
Motor operator integrated: No
Motor operator optional: No
Degree of protection (IP): IP40
This is a compact circuit-breaker ComPacT NSXm, 125 A, 36 kA at 415 VAC, for all LV standard applications. It offers new features such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring-type auxiliary devices that are externally visible. ComPacT NSXm is one of the smallest compact circuit breakers available on the market, measuring 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with an integrated thermo-magnetic trip unit. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.
3. Schneider Resi9 R9D41616 1P+N RCD, 16A, B-Char., 30mA, type F, 6kA
The Resi9 R9D41616 RCD/MCB from Schneider is a reliable and safe device that functions both as a residual current device (RCD) and as a miniature circuit breaker (MCB). With a rated current of 16A and a type B characteristic, this switch offers a rated residual current of 30mA, making it ideal for protecting electrical installations. The switch is designed for an operating voltage of 230V AC and a frequency of 50 Hz. It complies with the standards according to EN/IEC 61009-1 and provides a rated short-circuit capacity of 6kA. Installation is straightforward on a DIN rail, facilitating installation in distribution cabinets. The RCD/MCB is equipped with mechanical indicators that are visible in the event of a fault trip, both for circuit protection and residual current protection. This enhances the safety and user-friendliness of the device.
- Integrated residual current and circuit protection
- Mechanical indicators for fault trip
- Thermal-magnetic tripping mechanism
- Tunnel connections for easy wiring
- Suitable for DIN rail mounting.
Residual-current device
−7%
EUR129,– was EUR139,–
Schneider Resi9 R9D41616 1P+N RCD, 16A, B-Char., 30mA, type F, 6kA
4. Schneider C063H4FM
The ComPacT NS630b-1600 from Schneider is a powerful circuit breaker designed for use in demanding electrical applications. With a rated current of 630 A and a maximum short-circuit breaking capacity of 70 kA at 415 VAC, this 4-pole switch offers reliable protection and safety. The circuit breaker is suitable for both AC and DC applications and meets the requirements for protection class IP40, making it ideal for use in industrial environments. The screw mounting allows for easy installation and integration into existing systems. Made in Italy, the ComPacT NS630b-1600 stands for quality and durability.
- Protection class IP40 for reliable operation in industrial environments
- Suitable for AC and DC applications
- Easy installation with screw mounting
- Made in Italy, known for high quality standards.
5. Schneider Motorschutzschalter GV2ME05A 3p 0,63-1A Tasterbetätigung SnapIN
The GV2ME05A motor protection switch from Schneider is a reliable device specifically designed to protect electric motors. With a three-pole configuration and an adjustable range of 0.63 to 1 A, this switch provides an effective solution to prevent overloads and short circuits. The switch is equipped with thermal and magnetic trip mechanisms that ensure precise and rapid response to hazardous operating conditions. Operation is performed via a push button, allowing for easy handling. Additionally, the motor protection switch is sealable and lockable, providing extra safety in industrial applications. The SnapIN connection terminals ensure a quick and maintenance-free electrical connection, while the mechanically linked contacts and mirror contacts are suitable for safety applications. With a rated voltage of 400 V according to AC-3, this motor protection switch is ideal for use in various electrical systems.
- Thermal and magnetic tripping mechanisms for reliable protection
- Sealable and lockable for enhanced safety
- Easy operation via push button
- Quick and maintenance-free electrical connection with SnapIN connection terminals
- Suitable for safety applications due to mechanically linked contacts.
Residual-current device
EUR91,83
Schneider Motorschutzschalter GV2ME05A 3p 0,63-1A Tasterbetätigung SnapIN
6. Schneider R9F23363
Schneider Electric Circuit Breaker R9F23363
Manufacturer: Schneider Electric
Designation: Circuit Breaker 3P, 63A, B
Type: R9F23363
Installation Depth: 44 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 63 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Pollution Degree: 2
Additional Devices Possible: no
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..60 °C
Connectable Conductor Cross-section Multi-stranded: 1..25 mm²
Connectable Conductor Cross-section Solid: 1..35 mm²
Explosion Protected: no
Schneider Electric Circuit Breaker R9F23363: additional details
Resi9 circuit breaker, 3-pole, 63A, characteristic B. Switching capacity of 6kA according to IEC/EN 60898-1. Dual-function terminal for cables and fork busbar at the bottom of the device. Rear-mounted DIN rail mounting element at the bottom of the device. Spring mechanism for low-wear and user-independent switching of contacts. Color shade RAL 9003.
7. Schneider M9U21220
The Schneider M9U21220 is a reliable circuit breaker designed for use in electrical distributions. With a rated current of 5 Amperes and a rated voltage of 277 Volts AC, this miniature circuit breaker provides an effective solution for protecting electrical circuits against overloads and short circuits. The thermal-magnetic tripping unit ensures precise and rapid response to disturbances, while the high breaking capacity of 10 kA, in accordance with relevant standards (CSA, UL, IEC), guarantees safe disconnection. The M9U21220 is part of the C60 product line and is suitable for applications that require high reliability and safety.
- Thermal-magnetic tripping unit for precise response to disturbances
- High breaking capacity of 10 kA according to CSA and UL
- Suitable for three-phase applications with 3 poles
- Designed for use in electrical distributions.
8. Schneider Circuit-breaker NG125L, 4P, 63A, C characteristic 18828
Acti 9 NG125L circuit breaker, 50kA (IEC/EN 60947-2). 4-pole, rated current 63A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 690V AC. Protects the circuit against short-circuit currents and overload currents. The tripping is indicated by the middle position of the switch lever and by a red mechanical indicator on the front of the device. Test button for checking the tripping mechanism. Top or bottom feed. Jump switching for low-wear contact switching. Tripping unit technology: thermomagnetic. Additional snap-on auxiliary modules (optional): indication of switching position, fault tripping, working current tripping, undervoltage tripping, overvoltage tripping. The NG125L circuit breaker complies with the following standards: IEC/EN 60947-2.
9. Schneider Motorschutzschalter GV2ME22A 3p 20-25A Tasterbetätigung SnapIN
The GV2ME22A motor protection switch from Schneider Electric is a reliable device specifically designed for the protection of electric motors. With a rated power of up to 11 kW and an adjustable range of 20 to 25 A, this three-pole switch offers an effective solution for various applications. The switch is equipped with thermal and magnetic trip mechanisms that ensure precise monitoring and protection of the motor. Operation is via a push button, allowing for easy handling. Additionally, the motor protection switch is sealable and lockable, providing extra security. The SnapIN terminal block enables a quick and maintenance-free electrical connection, while the mechanically linked contacts and mirror contacts make it suitable for safety applications.
- Thermal and magnetic trip mechanisms for reliable protection
- Sealable and lockable for enhanced security
- Quick and maintenance-free electrical connection through SnapIN terminal block
- Suitable for safety applications thanks to mechanically linked contacts.
Residual-current device
EUR127,99
Schneider Motorschutzschalter GV2ME22A 3p 20-25A Tasterbetätigung SnapIN

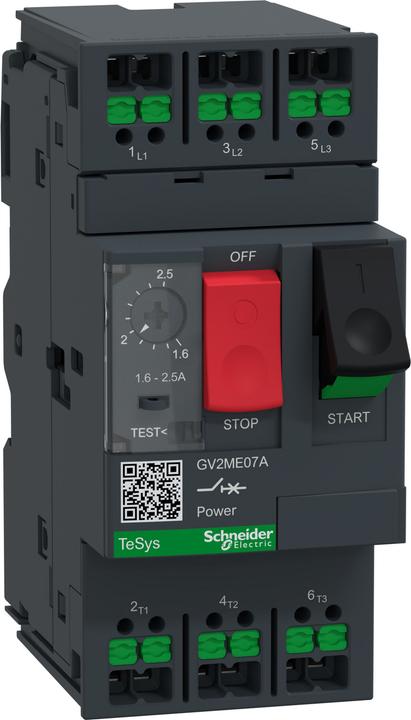

10. Schneider Motorschutzschalter GV2ME07A 3p 1,6-2,5A Tasterbetätigung SnapIN
The GV2ME07A motor protection switch from Schneider is a reliable device designed to protect electric motors in industrial applications. With a rated power of 0.75 kW and an adjustable range of 1.6 to 2.5 A, this 3-pole switch features both thermal and magnetic trip mechanisms to prevent overloads and short circuits. Operation is facilitated by a push button, allowing for easy handling. The switch is sealable and lockable, providing additional security in applications where unauthorized access must be prevented. The rated voltage is 400 V according to AC-3, making it suitable for a variety of applications. Thanks to the SnapIN connection terminals, a quick, secure, and maintenance-free electrical connection is ensured. The GV2ME07A is also suitable for safety applications, as it uses mechanically linked contacts and mirror contacts to ensure reliable functionality.
- Thermal and magnetic trip mechanisms for optimal motor protection
- Sealable and lockable for increased safety
- Easy operation via push button
- Quick and maintenance-free electrical connection through SnapIN connection terminals
- Suitable for safety applications with mechanically linked contacts.
Residual-current device
EUR88,24
Schneider Motorschutzschalter GV2ME07A 3p 1,6-2,5A Tasterbetätigung SnapIN
