Best selling Residual-current devices from Siemens
On this page you'll find a ranking of the best Siemens products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Siemens Miniature circuit breaker 5SL6525-7 1 pc.
Siemens Circuit Breaker 5SL6525-7
Manufacturer: Siemens
Designation: Circuit breaker 230V 6kA 1+N C 25A
Type: 5SL6525-7
Installation depth: 70 mm
Tripping characteristic: C
Number of poles (total): 2
Number of protected poles: 1
Rated current: 25 A
Rated voltage: 230 V
Rated short-circuit capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage type: AC
Rated short-circuit capacity Icn according to EN 60898 at 400 V: 6 kA
Rated short-circuit capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Rated short-circuit capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Frequency: 50 Hz
Energy limiting class: 3
Flush-mounted: no
Switching neutral conductor: yes
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in division units: 2
Protection class (IP): IP20
Ambient temperature during operation: -25..45 °C
Connectable conductor cross-section multi-stranded: 0.75..25 mm²
Connectable conductor cross-section single-stranded: 0.75..25 mm²
Explosion-proof: no
Siemens Circuit Breaker 5SL6525-7: additional details
Circuit breaker 230V 6kA, 1+N-pole, C, 25A.
SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free installation and removal of the device. Easy wiring of the supply through the rear-mounted busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N and 3+N pole versions, along with other special types. The extensive accessories, such as auxiliary switches, allow for versatile function expansion. Simply safe with SENTRON protection devices.
2. Siemens FI circuit breaker type F short time delayed A 30 mA Un
FI residual current circuit breaker, 4-pole, Type F, time-delayed, In: 63 A, 30 mA, Un AC: 400 V. The FI switch is the residual current protective device for touch protection. Siemens' patented residual current protective devices are an essential component of the SENTRON protection systems for electrical installations, as they prevent life-threatening electrical accidents by safely disconnecting dangerous fault currents to ground. Electrically ignited fires can be prevented right from the start. Whether through direct contact with live parts or indirect contact with operating equipment, protection is primarily achieved through rapid disconnection. The Siemens FI circuit breakers 5SV are particularly characterized by: 1. Comprehensive protection for persons and property against electric shock. 2. Whether sinusoidal alternating fault currents or smooth direct fault currents - Siemens offers the right type and special designs for all requirements. 3. Reliability.
3. Siemens Circuit breaker 5SL4616-7 1 pc.
Siemens Digital Industry Circuit Breaker 5SL4616-7
Manufacturer: Siemens Digital Industry
Designation: Circuit breaker 400V, 10kA, 3+N, 16A
Type: 5SL4616-7
Installation depth: 70 mm
Tripping characteristic: C
Number of poles (total): 4
Number of protected poles: 3
Rated current: 16 A
Rated voltage: 400 V
Rated breaking capacity Icn according to EN 60898 at 230 V: 10 kA
Voltage type: AC
Rated breaking capacity Icn according to EN 60898 at 400 V: 10 kA
Rated breaking capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Rated breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50 Hz
Energy limiting class: 3
Flush-mounted: no
Switching neutral conductor: yes
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in division units: 4
Protection class (IP): IP20
Ambient temperature during operation: -25 to 55 °C
Connectable conductor cross-section multi-stranded: 0.75 to 25 mm²
Connectable conductor cross-section single-stranded: 0.75 to 25 mm²
Explosion-proof: no
Siemens Digital Industry Circuit Breaker 5SL4616-7: additional details
Circuit breaker 400V 10kA, 3+N-pole, C, 16A
SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings.
Tool-free installation and removal of the device. Easy wiring of the supply through the rear-mounted busbar.
The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as in 1+N- and 3+N-pole versions, along with various special types.
The extensive accessories, such as auxiliary switches, allow for versatile expansion of functions.
Simply safe with SENTRON protection devices.

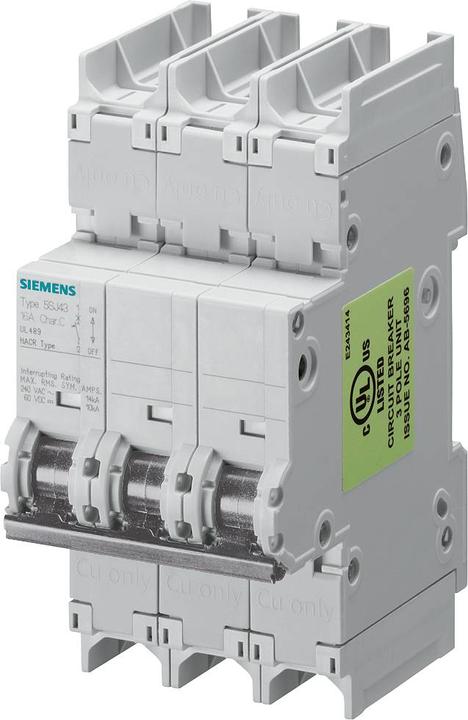

4. Siemens SIEM 5SJ4316-7HG41 Miniature circuit breaker 240V 14kA 3-pole C, 16A, T=70mm according to UL
Circuit breaker 240V 14kA, 3-pole, C, 16A, T=70mm according to UL 489. The circuit breaker serves as the automatic fuse for short circuit protection. Siemens circuit breakers are an essential component of the SENTRON protection devices for electrical installations, providing effective protection for people and systems through safe disconnection in overload and short circuit situations. Convenient mounting and connection technology, uniform additional components, and a consistent design characterize this device family. Whether for infrastructure or industrial requirements, Siemens offers circuit breakers for all applications and every area of use. Siemens circuit breakers are particularly distinguished by: 1. Effective protection for people, investments, and systems against overload and short circuits. 2. Uniform accessories in a wide variety, easy to install and always interchangeable. 3. Reliable safety during installation thanks to standard included gripping and touch protection. 4. Clearly visible switch position indicator. 5. Datamatrix code on the front of the device provides quick and easy access to all information regarding the circuit breaker. 6. Compliance with standards with worldwide approvals.
Residual-current device
EUR229,–
Siemens SIEM 5SJ4316-7HG41 Miniature circuit breaker 240V 14kA 3-pole C, 16A, T=70mm according to UL
5. Siemens Circuit breaker UC C 45A 2p 400V 5SY4245-7
Siemens digital industrial circuit breaker 5SY4245-7
Manufacturer: Siemens Digital Industries
Designation: Circuit breaker 400V 10kA 2p.C 45A
Type: 5SY4245-7
Mounting depth: 70 mm
Tripping characteristic: C
Number of poles (total): 2
Number of fused poles: 2
Rated current: 45 A
Rated voltage: 400 V
Rated insulation voltage Ui: 440 V
Rated impulse withstand voltage Uimp: 4 kV
Rated breaking capacity Icn to EN 60898 at 230 V: 10 kA
Voltage type: AC
Rated breaking capacity Icn to EN 60898 at 400 V: 10 kA
Rated breaking capacity Icu to IEC 60947-2 at 230 V: 15 kA
Rated breaking capacity Icu to IEC 60947-2 at 400 V: 15 kA
Frequency: 50 Hz
Energy limitation class: 3
Flush mounting: No
Neutral conductor to be connected: No
Overvoltage category: 3
Pollution degree: 3
Additional devices possible: Yes
Width in pitch units: 2
Protection class (IP): IP20
Ambient temperature during operation: -40 to 70 °C
Connectable conductor cross-section stranded: 0.75 to 35 mm²
Connectable conductor cross-section solid: 0.75 to 35 mm²
Explosion-proof: No
Siemens digital industrial miniature circuit breaker 5SY4245-7: further details
Miniature circuit breaker 400V 10kA, 2-pole, C, 45A, T=70mm
Miniature circuit breaker SENTRON 5SY for safe short-circuit and overload protection for residential buildings, functional buildings, and special industrial applications. Tool-free mounting and dismounting of the device with the aid of a double slide. Any combination of conductors and busbar due to double chamber terminal. Simple wiring of the feeder due to the busbar located at the rear. 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4- as well as 1+N- and 3+N-pole versions. All accessories can be used uniformly for all 5SY miniature circuit breakers. Simply safe with SENTRON's protective devices. EAN: 4001869309811.
6. Siemens Circuit breaker UC D 25A 4p 400V 5SL4425-8
Siemens Dig.Industr. Circuit Breaker 5SL4425-8
Manufacturer: Siemens Dig.Industr.
Designation: Circuit breaker 400V, 10kA, 4p., D, 25A
Type: 5SL4425-8
Installation depth: 70 mm
Tripping characteristic: D
Total number of poles: 4
Number of protected poles: 4
Rated current: 25 A
Rated voltage: 400 V
Rated short-circuit capacity Icn according to EN 60898 at 230 V: 10 kA
Voltage type: AC
Rated short-circuit capacity Icn according to EN 60898 at 400 V: 10 kA
Rated short-circuit capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Rated short-circuit capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50 Hz
Energy limitation class: 3
Flush-mounted: no
Switching neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in division units: 4
Protection class (IP): IP20
Ambient temperature during operation: -25..55 °C
Connectable conductor cross-section multi-stranded: 0.75..25 mm²
Connectable conductor cross-section single-stranded: 0.75..25 mm²
Explosion-proof: no
Siemens Dig.Industr. Circuit Breaker 5SL4425-8: additional details
Circuit breaker 400V 10kA, 4-pole, D, 25A
The SENTRON 5SL circuit breaker provides safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free mounting and dismounting of the device. Simple wiring of the supply through the rear busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N and 3+N pole versions, along with other special types. The extensive accessories, such as auxiliary switches, allow for versatile expansion of functions. Simply safe with SENTRON protection devices.
7. Siemens Circuit breaker UC C 63A 1p 240V 5SJ4163-7HG41
Circuit breaker 240V 10kA, single-pole, C, 63A, T=70mm according to UL 489. The circuit breaker is the automatic fuse for short circuit protection. Siemens circuit breakers are an important part of the SENTRON protection components for electrical installations and provide effective protection for people and equipment through safe disconnection in case of overload and short circuit. Convenient mounting and connection technology, uniform additional components, and a consistent design are the hallmarks of this device family. Whether for infrastructure or industrial requirements, Siemens offers circuit breakers for all applications and every area of use. Siemens circuit breakers are particularly characterized by: 1. Effective protection for people, investments, and equipment against overload and short circuit. 2. Uniform accessories in a wide variety, easy to install and always interchangeable. 3. Reliable safety during installation thanks to standard grip and touch protection. 4. Clearly visible switching position indicator. 5. Data matrix code on the front of the device provides quick and easy access to all information about the circuit breaker. 6. Compliance with standards with worldwide approvals.

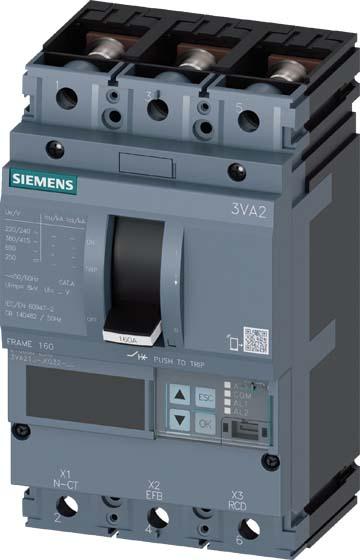

8. Siemens SIEM circuit breaker
Circuit breaker 3VA2 IEC Frame 160 Switching capacity class M Icu=55kA @ 415V 3-pole, system protection ETU860, LSIG, In=100A overload protection Ir=40A...100A short-circuit protection Isd=0.6..10x In, Ii=1.5..12x In N-conductor protection optionally with external current transformer, up to 160% earth fault protection, switchable Ig=0.2...1 x In, tg=0.05-0.8s screw flat connection. Compact circuit breaker SENTRON 3VA2 for effective system protection through safe disconnection in overload and short-circuit situations. The compact circuit breakers 3VA set standards in flexibility and modular variety while requiring minimal space. The compact circuit breakers 3VA2 are available in 3- and 4-pole versions with various rated currents for installation in fixed mount as well as plug-in technology. The modular and easy-to-install accessories with diverse functions are consistent and uniform across all sizes and series of the compact circuit breakers 3VA. SENTRON compact circuit breakers 3VA - a system for all applications.
9. Siemens Circuit-breaker 100A 3p 40-100A/In 3VA6210-6KL31-2AA0
Circuit breaker 3VA6 UL frame 250 switching capacity class H 65kA at 480V, 3-pole, system protection ETU820, LI, In=100A overload protection, 100% rated Ir=40A...100A short-circuit protection Ii=1.5...12 x In without connection. Compact circuit breaker 3VA6 with 8-type ETU for system protection, 100% rated breaker, UL approval. The Siemens 3VA UL compact circuit breakers are an essential component of the SENTRON protection devices for industrial applications as well as for infrastructure applications. They provide effective system and starter protection through safe disconnection in case of overload and short circuit. The 3VA UL sets standards in flexibility and modular accessory variety. The 100% rated versions of the 3VA6 compact circuit breaker can be operated continuously at 100% of the specified rated current and are specifically tested and certified for this purpose. Additionally, the 3VA UL compact circuit breaker offers the best conditions for machines and switchgear manufacturers exporting worldwide. Besides the IEC standard, the two series 3VA5 and 3VA6 also meet the UL standard. All functionalities can thus be used globally for systems. This variant of the 3VA compact circuit breaker is characterized mainly by: 1. Compact design. 2. Available as a variant for system protection. 3. 100% rated breaker. 4. Available in 3- and 4-pole versions. 5. Four switching capacity classes from 55 kA to 150 kA at 480 V. 6. Depending on the frame size: rated current 40 A to 400 A. 7. Installation in fixed installation, plug-in technology, and slide-in technology possible. 8. The series features an electronic overload relay. 9. Equipped with an integrated display for measurement value indication. 10. Integrated measurement function and optional communication connection via Modbus TCP, Modbus RTU, PROFINET, and PROFIBUS. 11. Modular and easy-to-install internal accessories with various functions.

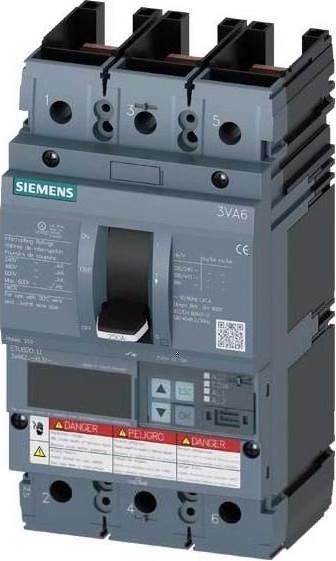

10. Siemens Circuit-breaker 250A 3p 100-250A/In 3VA6325-5JP31-2AA0
Circuit breaker 3VA6 UL Frame 400, switching capacity class M, 35 kA at 480 V, 3-pole, system protection ETU550, LSI, In=250 A overload protection, 100 % rated Ir=100 A...250 A, short-circuit protection Isd=0.6..10x In, Ii=1.5..12x In, N conductor protection optional with external current transformer, up to 160 % without connection. Compact circuit breaker 3VA6 with 5-er ETU for system protection, 100 % rated breaker, UL approval. The 3VA UL compact circuit breakers from Siemens are an essential part of the SENTRON protection components for industrial applications as well as for infrastructure applications. They provide effective system and starter protection through safe disconnection in overload and short-circuit situations. The 3VA UL sets standards in flexibility and modular accessory variety. The 100 % rated versions of the 3VA6 compact circuit breaker can be operated continuously at 100 % of the specified rated current and are specifically tested and certified for this purpose. Additionally, the 3VA UL compact circuit breaker offers the best conditions for globally exporting machines and switchgear manufacturers. Besides the IEC standard, the two series 3VA5 and 3VA6 also meet the UL standard. All functionalities can thus be used worldwide for systems. This variant of the 3VA compact circuit breaker is characterized mainly by: 1. Compact design. 2. Available as a variant for system protection. 3. 100 % rated breaker. 4. Available in 3- and 4-pole versions. 5. Four switching capacity classes from 35 kA to 150 kA at 480 V. 6. Depending on the frame size: rated current 40 A to 400 A. 7. Mounting in fixed installation, plug-in technology, and slide-in technology possible. 8. The series features an electronic overload relay. 9. Equipped with an integrated display for measurement value indication. 10. Optional communication interface via Modbus TCP, Modbus RTU, PROFINET, and PROFIBUS. 11. Modular and easy-to-install internal accessories with diverse functions.
