Best selling Surge protection from Phoenix Contact
This page always stays fresh and updates automatically.
1. Phoenix Contact FLT-SEC-ZP2-3S-255/1
The Phoenix Contact FLT-SEC-ZP2-3S-255/1 combined lightning arrester is a reliable solution for lightning protection in 3-phase power supply networks. With a compact width of just 27 mm, it fits universally into any meter cabinet and allows for tool-free installation thanks to a universal locking mechanism for 5 mm and 10 mm rail thicknesses. This combined lightning arrester meets the requirements of the application rule VDE-AR-N 4100 and is suitable for use in the pre-meter area. It offers lightning current protection of up to 12.5 kA and is designed for lightning protection potential equalization according to lightning protection classes III and IV. Integration into building management systems is possible through an optional communication module, enhancing the device's flexibility and functionality.
- Universal application due to narrow width of 27 mm
- Tool-free installation through universal locking mechanism
- Lightning current protection up to 12.5 kA
- Suitable for use in the pre-meter area according to VDE-AR-N 4100.

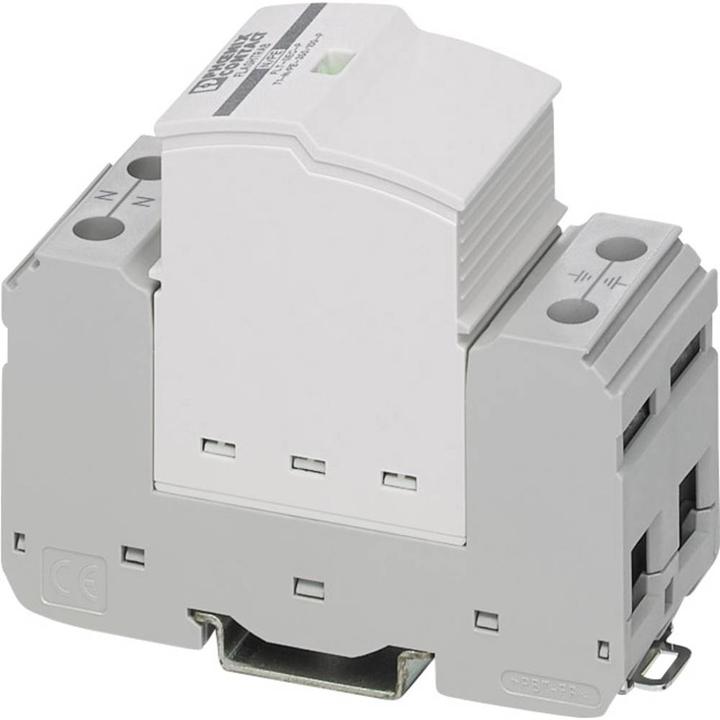

2. Phoenix Contact Surge arrester Ü
Pluggable lightning current arrester, according to Type 1/Class I, for use in power supply networks between N and PE. This pluggable lightning current arrester functions as an N/PE spark gap, featuring an ignition mechanism for triggering the response voltage. It provides protection against incorrect plugs through mechanical coding of the base element and plug. There is an option for labeling protective plugs and connection terminals on the base element. It includes two biconnect terminals each for N and PE, allowing for the connection of round conductors and wiring bridges.
3. Phoenix Contact Overvoltage Protection Type 10st
The Type 10ST surge protection device from Phoenix Contact is a high-quality surge arrester specifically designed to protect electrical systems and devices. This replacement plug belongs to the testing class Type 3 and offers a rated voltage of 24 V. With a robust construction made of polyamide, it ensures reliable performance and durability. The surge arrester is suitable for use in various applications and protects against surges caused by lightning strikes or other electrical disturbances. With a lightning impulse current of up to 4000 Amperes, it provides effective protection for your electrical systems. Its compact design allows for easy integration into existing systems, while the IP20 protection rating is intended for use in dry indoor environments.
- Testing class Type 3 for reliable surge protection
- Lightning impulse current of 4000 Amperes for high protection
- Polyamide construction for durability
- Suitable for applications with a rated voltage of 24 V.
4. Phoenix Contact Phoenix surge device protection SFP 110/120AC
The Phoenix surge protection device SFP 110/120AC is a reliable surge arrester specifically designed for use in single-phase power supply networks. With its Type 3 / Class III certification, it provides effective protection against surges and high-frequency interference voltages. The integrated network disturbance filter minimizes disruptions, enhancing the lifespan and reliability of connected devices. The surge protection is designed for systems with a separate neutral conductor (N) and protective conductor (PE) and features a remote signaling contact for easy monitoring. Made in Germany, this product combines high quality and functionality.
- Type 3 / Class III surge protection for single-phase systems
- Integrated network disturbance filter to reduce high-frequency interference
- Remote signaling contact for easy monitoring
- Protection class IP20, suitable for indoor use.
5. Phoenix Contact TTC-6-TVSD-C-24DC-PT-I
Suppressor type: Overload protection device
Operating voltage max: 30 V DC
Mounting type: DIN rail
Series: TTC
Length: 69.5 mm
Depth: 6.2 mm
Height: 92 mm
Dimensions: 69.5 x 6.2 x 92 mm
Operating temperature min: -40°C
Operating temperature max: +85°C
Phoenix Contact overvoltage protection. Professional overload protection devices from Phoenix. These overload protection devices come with a mix of fine, medium, and coarse overvoltage protection. They also offer a choice of integrated status indicators with floating signal circuit and grounded reference potential. All products are highly reliable and of excellent quality. Features and benefits: - 6 mm overall width - Plug-in connection method - Integrated status indication without auxiliary power and optional remote signaling.
6. Phoenix Contact PHOE double-deck clamp
The PHOE double-decker terminal block from Phoenix Contact is a high-quality solution for the secure connection of electrical wires. With a rated voltage of 800 V and a rated current of 22 A, it offers reliable performance for various applications. The terminal block features a push-in connection that allows for easy and quick installation. It is arranged in two tiers, ensuring space-saving mounting and efficient use of available space. The rated cross-section of 2.5 mm² and the flexibility in cross-section from 0.14 mm² to 4 mm² make this terminal block versatile. It can be mounted on NS 35/7.5 or NS 35/15 rails, facilitating integration into existing systems. The gray color and robust plastic material provide an appealing look and durability.
- Rated voltage of 800 V for high safety
- Push-in connection for easy installation
- Two tiers for space-saving mounting
- Flexible cross-section from 0.14 mm² to 4 mm².
7. Phoenix Contact TTC-6-MOV-C-60DC-PT-I
Suppressor type: Overload protection device
Operating voltage max: 75 V dc
Mounting type: DIN rail
Peak current max: 2 kA (Discharge)
Series: TTC
Length: 39.5 mm
Depth: 6.2 mm
Height: 92 mm
Dimensions: 39.5 x 6.2 x 92 mm
Operating temperature min: -40°C
Operating temperature max: +85°C
Phoenix Contact overvoltage protection. Professional overload protection devices from Phoenix. These overload protection devices come with a mix of fine, medium, and coarse overvoltage protection. They also offer a choice of integrated status indicators with floating signal circuit and grounded reference potential. All products are highly reliable and of excellent quality. Features and benefits: - 6 mm overall width - Plug-in connection method - Integrated status indication without auxiliary power and optional remote signaling.
8. Phoenix Contact PHOE Traverse
Traverse with mast holder from Lambrecht Meteo GmbH, length: 750 mm, made of anodized aluminum and stainless steel components. Suitable for mounting weather sensors from the SOL-ES series.

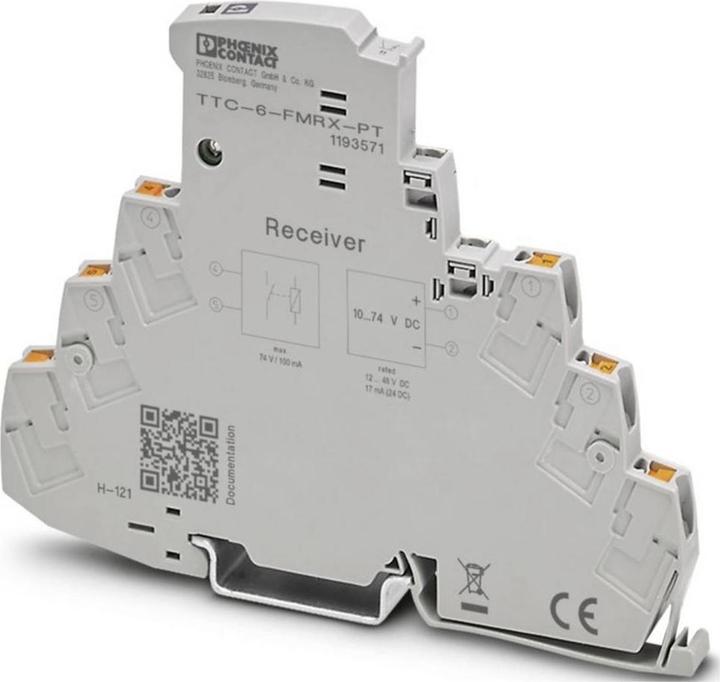

9. Phoenix Contact PHOE remote signalling module receiver
The PHOE telecommunications module receiver from Phoenix Contact is a reliable surge protector specifically designed for the protection of telecommunications modules. With a rated voltage of 24 volts, this device offers effective protection against surges caused by lightning strikes or other electrical disturbances. It is easy and secure to mount on a DIN rail, facilitating installation in various applications. The receiver features a snap-on attachment that ensures a stable and durable connection. With a compact height of 105.8 mm and a length of 83.5 mm, it fits into most installation environments. Additionally, the receiver meets the IP20 protection class, which protects it from solid foreign objects, making it suitable for indoor use.
- Effective surge protection for telecommunications modules
- Easy mounting on DIN rail
- Rated voltage of 24 volts for versatile applications
- IP20 protection class for indoor use.
10. Phoenix Contact Distribution cabinet overvoltage protection Übe
Pluggable lightning current arrester, according to Type 1 / Class I, for use in power supply networks between N and PE. This pluggable lightning current arrester (Type 1/Class I arrester) serves as an N/PE spark gap, featuring an ignition mechanism for triggering the response voltage. It includes protection against incorrect plugging with incorrect plugs through mechanical coding of the base element and plug. There is a labeling option for protective plugs and connection terminals on the base element. It has two biconnect terminals each for N and PE, designed for connecting round conductors and wiring bridges.
