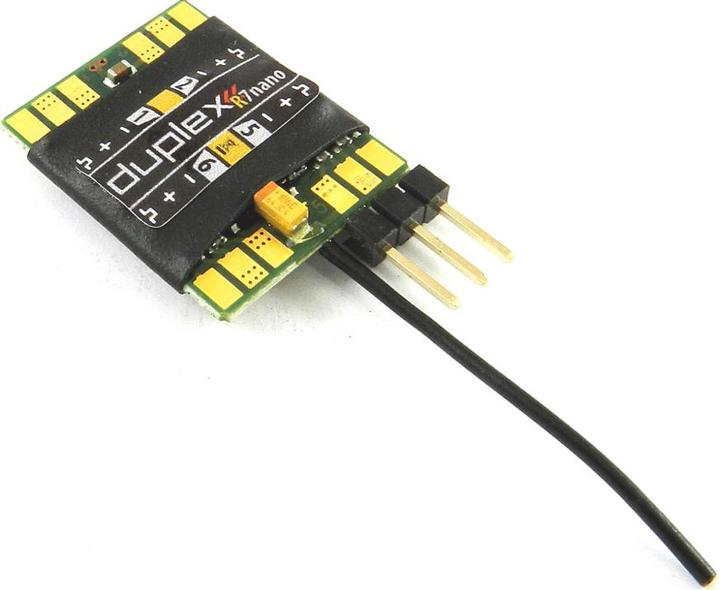

The Duplex R7 nano EX receiver combines many servo outputs with extremely small dimensions. The R7 nano EX is perfect for use in small and very lightweight models and is equipped with a 32 mm antenna. The R7 nano EX is the lightest receiver in the Duplex system, weighing just 1 gram (2 g with heat shrink). No connectors for the servos are provided; all servo cables can be soldered directly onto the circuit board. This saves weight and eliminates unnecessary connectors when extreme lightweight construction is a priority.

Features:

• Telemetry: Yes
• Operating temperature [°C]: -10 to 85
• Compatible protocols: Duplex 2.4 GHz EX, EX Bus
• Antenna length [mm]: 1 x 32
• Supply voltage [V]: 3.2 to 8.4
• Average current [mA]: 30
• Satellite receiver support: No
• Output power [dBm]: 6
• Sensitivity [dBm]: -98
• Possible serial output: PPM pos./neg., EX Bus, UDI, JETI Box.
