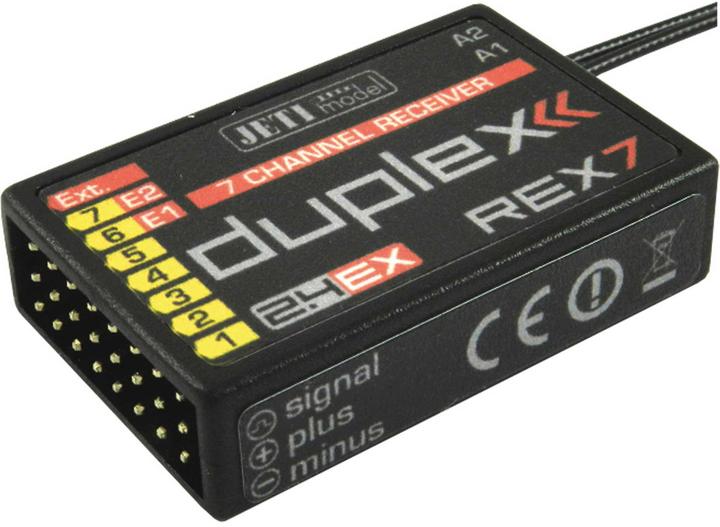

Duplex 2.4EX Receiver REX 7 A40 with 400 mm long antennas!

Features:

• The new generation of receivers
• Integrated expander for up to 3 sensors
• Supported protocols: PPM, EXBUS, EX, UDI
• Programmable functions for the slots
• Support for direct inputs
• Compact dimensions
• 32-bit processor
• Full range
• Programmable via the JETIBOX and wirelessly through the Duplex DC/DS transmitters
• Internal memory for data logging and control signals (evaluation in preparation)
• Ideal also in combination with external "servo switches" when connected via Jeti Ex Bus and additional sensors

Additional technical data:

• Telemetry: Yes
• Temperature range [°C]: -10 ... 85
• Compatible protocols: DUPLEX 2.4GHz EX, EX Bus, UDI
• Antenna length [mm]: 2 x 400
• Voltage range [V]: 3.2 - 8.4
• Current consumption [mA]: 30
• Satellite receiver connection: Yes
• Output power [dBm]: 15
• Reception sensitivity [dBm]: -106.
