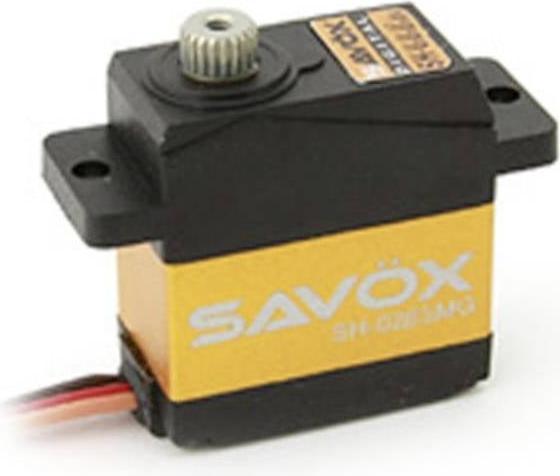

The SH-0264+ is a fast mini-sized servo that is well-suited for use at the tail of small helicopters. Of course, it can also be used in other areas.

The SH-0264+ is ideal when reliability and torque are essential in a compact size. The robust metal gear can handle even tougher loads.

The new + version of the well-known SH-0264+ servo differs only minimally in appearance and technology from its predecessor. A soft start feature, which slowly moves the servo to the starting position when powered on, and the Sanwa SSR Mode are distinguishing features of the + version.

Features:

• Response time S1/60° (sec): 0.06
• Torque S1 (kg*cm): 1.2

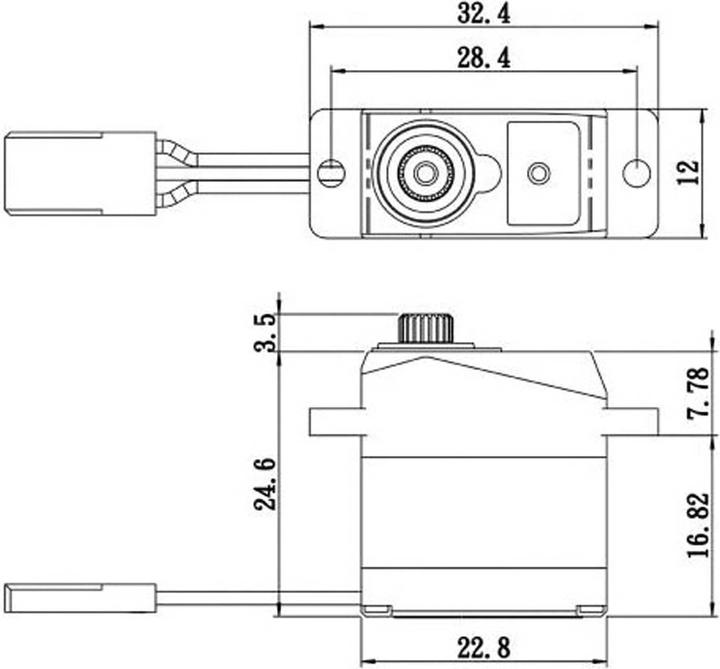

• Width (mm): 12
• Weight (g): 15
• Length (mm): 22.8
• Height (mm): 25.4
• Voltage range: 4.8V-6V
• Control frequency: Up to 333Hz, 1520us center pulse (recommended up to max. 200Hz to avoid unnecessarily shortening lifespan)
• High voltage capable up to 8.4V: No
• Motor type: Brushed motor
• Recommended applications: Helicopter, airplane, car, boat
• Ball bearings (number): 2
• Output gear teeth (number): 21
• Voltage 1 (Volt): 6.0
• Gear type: Metal
• Housing type: Partial metal
• Classification: Mini.
