1. R&G 1902230 Charcoal fabric 0.5 m²
- Fiber: TORAYCA® T300B 67 tex (1k)
- Style 469 Aero
- Thread count (threads/cm): 7 x 7
- Weave type: Plain weave
- Width: 100 cm
Application area: High-strength, thin laminates. Due to the yarn fineness and high thread count, a dense weave pattern is achieved. Very well suited for model making, e.g., propellers.
Material according to aerospace standards
Calculated data for hand laminates with 35 vol. % fibers: Resin consumption: 112 g/m², laminate thickness: 0.15 mm, laminate weight: 205 g/m²
Labeling elements 1/2020: Regulation (EC) No. 1272/2008
Hazardous components for labeling: Reaction product: Bisphenol-A-epichlorohydrin; epoxy resin (average molecular weight = 700). May cause allergic reactions.
Labeling note: Not classified as hazardous according to the Hazardous Substances Ordinance/EC directives.
Other hazards: Exempt quantity:.
2. R&G carbon layer st 80 g/m² (ud) 50 cm, roll/ 5 m
Features: All filaments are perfectly parallel, not twisted to the right or left, allowing the properties of each individual fiber to be fully utilized, resulting in a composite with excellent physical-mechanical properties. The thickness is consistent across the entire width of the fabric. All physical parameters have very strict tolerances. Filaments are held by very thin polyester bonding thread grids. The surface of the fibers is smooth, simplifying processing.
Application area: Coatings and laminates in model making, sandwich components, technical parts that are primarily subjected to bending.
Advantages of the material: Nearly 100% utilization of fiber properties, especially significantly higher compressive strength than fabrics; higher fiber content possible, any cuts without fraying. Back side with release film for peeling off.
Calculated data for hand laminates with 45 vol. % fibers: Resin consumption: 63 g/m², laminate thickness: 0.10 mm, laminate weight: 143 g/m².
Technical data: Tensile strength: 4137 MPa, tensile modulus: 242 GPa, elongation at break: 1.5%, density: 1.81 g/cm³, filament diameter: 7.2 µm.
Classification of the substance or mixture 1/2020: Regulation (EC) No. 1272/2008. Hazard statements: May cause allergic skin reactions. Labeling elements: Regulation (EC) No. 1272/2008. Hazardous components for labeling: Reaction product: Bisphenol-A-epichlorohydrin; epoxy resin (average molecular weight = 700). May cause allergic reactions. Note on labeling: Not classified as hazardous according to the Hazardous Substances Ordinance/EC directives. Other hazards: Exempt quantity.
3. R&G carbon fibre tape 250 g, 6k, ud (50 mm) roll/ 10 m
Fibres:
Warp: Tenax HTA40 400 tex (6k)/E-Glass 34 tex
Weft: E-Glass 22 tex 2-ply
Canvas unidirectional
Application:
Spars, wound components; all applications where strength and stiffness in a preferred direction are required.
Labelling elements:
Regulation (EC) No 1272/2008
Danger-determining components of labelling:
Reaction product: bisphenol A epichlorohydrin; epoxy resin (number average molecular weight = 700).... May cause allergic reactions.
Note on labelling:
Not classified as dangerous according to the GefStoffV/EC Directives.
Other hazards:
Exempt quantity: 2001595.
4. R&G Charcoal fabric 204 g/m² Aero 0.5 m² 100 cm twill roll 0.5 meters
- Fibre: Torayca T 300 J or equivalent in 200 tex (3k) - Style 452 - Weave: Twill - Width: 100 cm Field of application: load-bearing parts in aircraft construction, motor sports, ship and model construction, sports equipment construction, carbon visible parts Material according to aviation standard Calculated data for hand laminates with 35 vol % fibres: Resin consumption: 234 g/m², laminate thickness: 0.327 mm, laminate weight: 438 g/m².
Modelling: tools + accessories
EUR51,90
R&G Charcoal fabric 204 g/m² Aero 0.5 m² 100 cm twill roll 0.5 meters
5. R&G Carbon fabric 160 g/m² (Aero, Canvas) 100 cm, roll/ 1 m
The R&G carbon fabric with a weight of 160 g/m² is a high-quality reinforcement fabric specifically designed for use in model making, aircraft construction, motorsport, as well as in shipbuilding and sports equipment manufacturing. Made from Tenax® HTA 40 / 200 tex (3k) fibers, this fabric offers an excellent combination of strength and lightness. The plain weave ensures an even distribution of fibers, enhancing the structural integrity of the final product. With a width of 100 cm and a length of 1 meter, this carbon fabric is ideal for various applications that demand high material performance. It meets aerospace standards, providing a reliable solution for demanding projects. The specific calculation data for hand laminates allows for precise planning and implementation of laminate structures, making it a valuable resource for professionals and hobbyists alike.
- Fiber: Tenax® HTA 40 / 200 tex (3k) for high strength
- Suitable for applications in aircraft construction and motorsport
- Meets aerospace standards for reliable performance
- Calculation data for hand laminates supports precise planning.

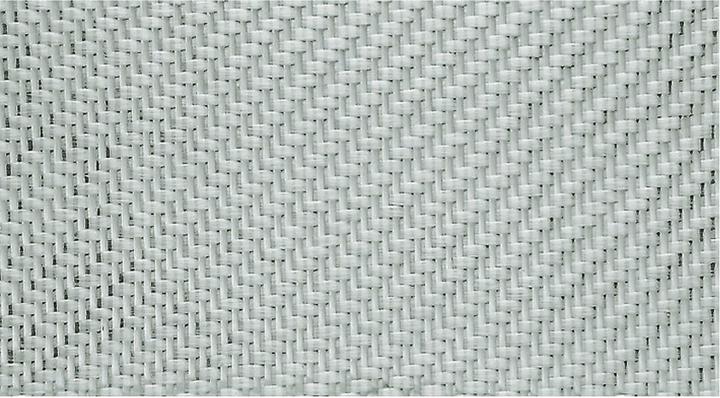

6. R&G glass fabric 163 g/m² (aero, twill) 100 cm, pack/ 2 m
The R&G glass fabric with a weight of 163 g/m² is a versatile and commonly used material in model making and sports equipment construction. It is excellent for coating prototypes, repairs, and reinforcements. The fabric is characterized by its flexibility and easy wetting properties, allowing for straightforward processing. Additionally, it offers good transparency, which is advantageous for various applications. With a width of 100 cm and a length of 2 m in the package, this glass fabric is a practical choice for numerous projects. The use of fiberglass ensures high strength and durability, making it an ideal material for demanding applications.
- Versatile use in model making and sports equipment construction
- Easy wetting for simple processing
- Good transparency for various applications
- Made from high-quality fiberglass for high strength.

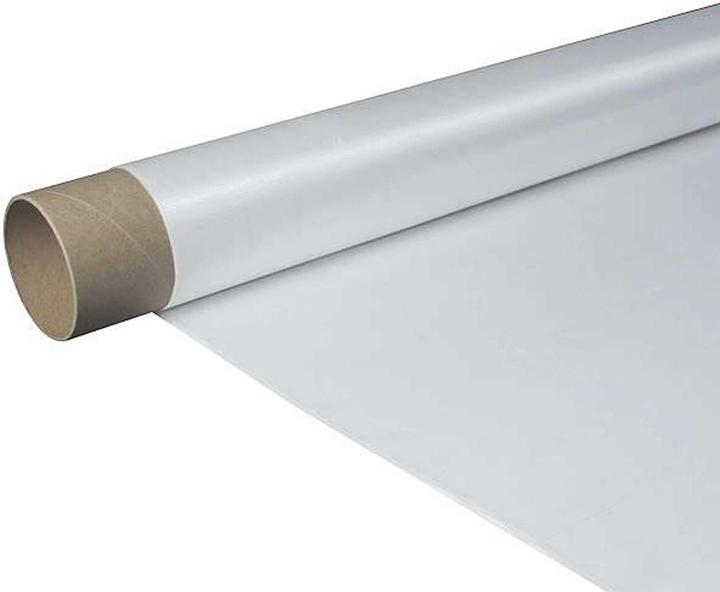

7. R&G Glass fabric 25 g/m² 5.50 m² Canvas
The R&G glass fabric with a weight of 25 g/m² is a high-quality accessory for model building, ideal for various applications. With a width of 110 cm and a length of 5 meters, this glass fabric provides a generous area for coating wood and veneer surfaces as well as for the production of honeycomb sandwich components. The special weave in a canvas structure ensures high strength and flexibility, making it an excellent choice for wing coatings and circuit boards. The material is transparent, allowing for seamless integration into different projects. The use of 35 vol. % fibers results in an optimal resin consumption of 20 g/m², which facilitates processing and improves the quality of the final product.
- Suitable for wood and veneer coatings as well as honeycomb sandwich components
- High strength and flexibility due to canvas weave
- Optimized resin consumption of 20 g/m² for hand laminates
- Transparent material for seamless integration into projects.
8. R&G Carbon fibre tape 300 g/m², 6k, UD (45 mm) roll/ 5 m
Fibres:
Warp: 7 fd./cm Tairyfil® TC33 400 tex (6k)
Weft: 3-3,5 fd./cm PES 78 dtex 2-ply
Canvas
Application:
Spars, wound components; all applications where strength and stiffness in a preferred direction are required.
.1. Classification of the substance or mixture 1/2020:
Regulation (EC) No 1272/2008
Hazard statements:
May cause an allergic skin reaction.
2.2. labelling elements
Regulation (EC) No. 1272/2008
Hazard-determining components of labelling
Reaction product: bisphenol A epichlorohydrin; epoxy resin (number average molecular weight /= 700). May cause allergic reaction
Note on labelling
Not classified as dangerous according to the GefStoffV/EC Directives.
2.3. other hazards
Exempted quantity:
2001754.

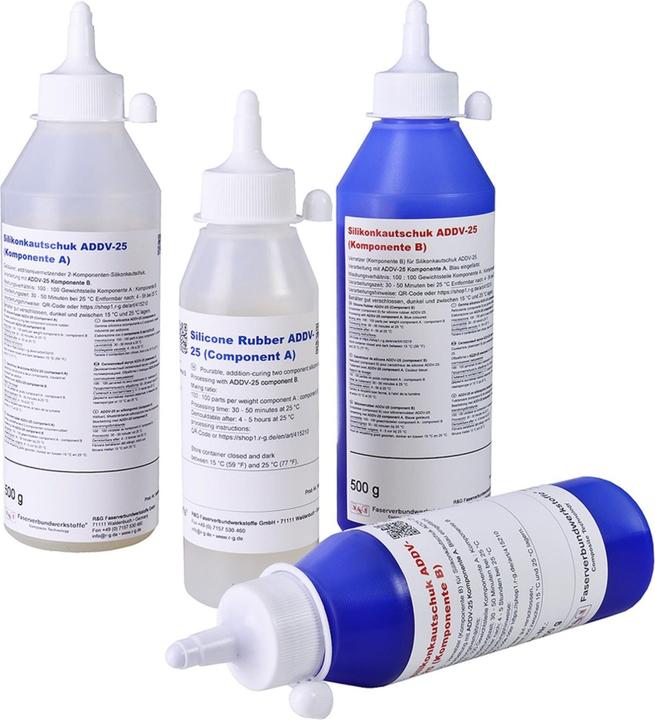

9. R&G Silikonkautschuk ADDV-25 BLAU (A+B / 1:1) PKG/ 500 g
10. R&G vacuum connection va 1 (resistant up to 100 °c)
Outstanding properties in terms of tightness, user-friendliness, and durability. Suitable for vacuum films of all kinds and compatible with the R&G pump hose 6 mm, making it ideal for the entire vacuum equipment from R&G.
