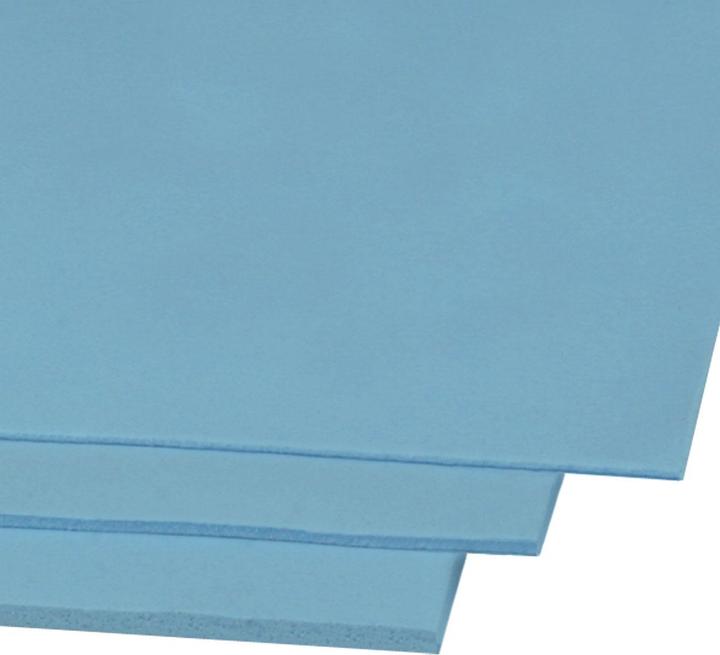

Arctic thermal pad with high thermal conductivity. Perfectly suited to bridge gaps and spaces. The application is particularly simple, and the pad can be easily cut to the desired size if needed.

Features of the Arctic thermal pad 120 x 20 x 0.5 mm at a glance:

• Set of two pads
• Thermal conductivity of 6.0 W/mK
• Perfect bridging for gaps and spaces
• Protection for sensitive components and chips
• Very easy to use
• Can be easily cut to the desired size
• Electrically non-conductive
• Non-capacitive
• Usable on all materials

Features of the Arctic thermal pad 120 x 20 x 0.5 mm in detail: The thermal pad offers good thermal conductivity of 6.0 W/mK. It serves as the perfect bridge for gaps and spaces while also providing protection for sensitive components and chips. The Arctic thermal pad is electrically non-conductive and non-capacitive, making the application extremely simple and straightforward. If necessary, the pad can be easily cut to the desired size with scissors or a knife. The Arctic thermal pad can be used on all materials, such as aluminum or copper.

Technical details:

• Quantity: 2 pieces
• Dimensions: approx. 120 x 20 x 0.5 mm
• Color: Blue
• Thermal conductivity: 6.0 W/mK
• Hardness: 25 Shore 00
• Specific weight: 3.2 g/cm³
• Volume resistivity: 1 x 10 Ohm-cm
• Breakdown voltage: 12 kV/mm
• Elongation: 45%
• Dielectric constant:

14.1816 at 60 Hz
13.0264 at 1 kHz
13.0264 at 1 MHz

• Operating temperature: -40 - 200 °C
• Flammability classification: UL 94 V-0.
