Name: USB C – USB-C
Brand: Delock
SKU: 6086103
Price: 67.72 EUR
Availability: InStock
Rating: 4.63 (296 reviews)

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Delock

This Thunderbolt 3 cable from Delock is universally applicable and combines all the advantages of the Thunderbolt 3 interface. It allows the connection of various devices, such as external enclosures, monitors, card readers, and docking stations, via a Thunderbolt 3 port on a PC or laptop. The cable enables data transfer rates of up to 20 Gb/s and supports the transmission of USB, DisplayPort, PCI Express, and Ethernet data. For example, it allows the connection of a 5K or 4K DisplayPort monitor, as well as USB 3.1 Gen 1 devices. It also provides power to connected devices with a power output of up to 60 W.

Note: The maximum achievable data transfer rate of 40 Gb/s with Thunderbolt 3 can only be realized with a 0.5 m long cable.

• Connectors:
  1 x Thunderbolt 3 USB Type-C 24 Pin plug
  1 x Thunderbolt 3 USB Type-C 24 Pin plug
• Chipset: Cypress E-Marker
• Wire gauge:
  32 + 34 AWG data line
  24 + 34 AWG power line
• Cable diameter: approx. 4.6 mm
• Conductors: 8 x coaxial for SuperSpeed USB, 1 x Twisted Pair for USB 2.0
• Contacts with gold plating
• Triple-shielded cable
• Data transfer rates:
  Thunderbolt 3 up to 20 Gb/s
  DisplayPort 1.2a up to 21.6 Gb/s
  SuperSpeed USB up to 5 Gb/s
  Thunderbolt Networking up to 10 Gb/s (Peer-To-Peer)
• Monitor resolution up to:
  1 x 5120 x 2880 30 Bit @ 60 Hz or
  1 x 4096 x 2160 30 Bit @ 60 Hz
  (depending on the system and connected hardware)
• Supports data and video over a single cable
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.2a protocol (8 lanes, HBR2, and MST)
• Cascadable up to 6 Thunderbolt devices (Daisy Chain)
• Dual channel, bi-directional data transmission
• Power supply via USB Power Delivery up to 60 W (20 V / 3 A)
• Power supply for Thunderbolt 3 devices with bus power (max. 15 W).

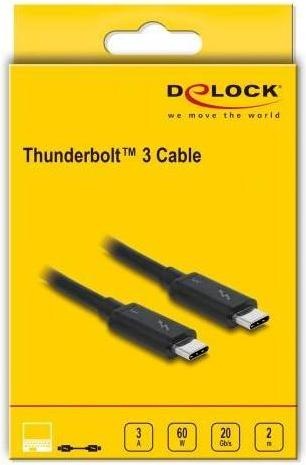

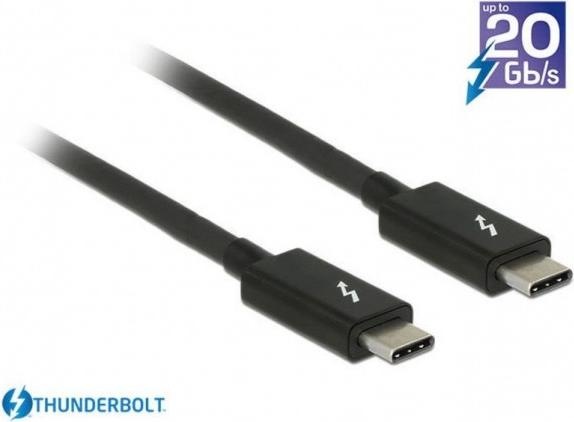

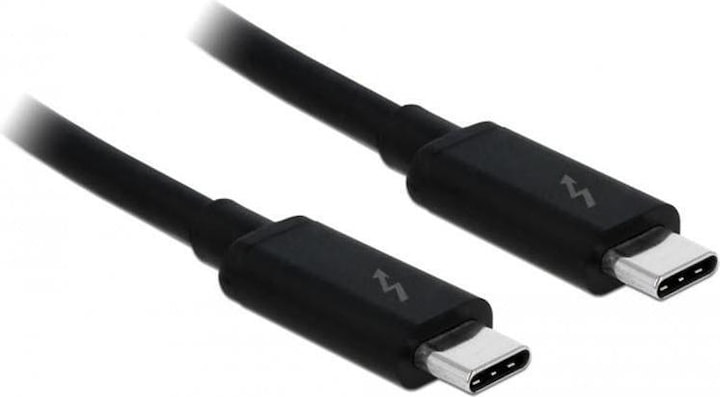

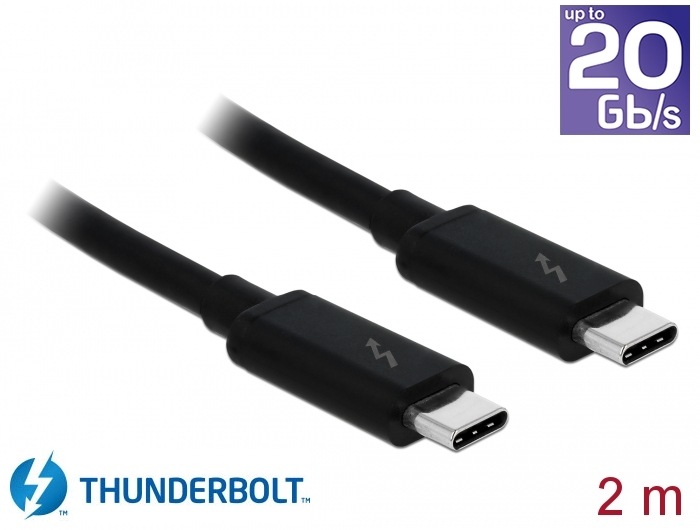

Actual product image Delock USB C – USB-C (2 m, USB 3.1)

Key specifications

USB version

This is the "generation" of the USB cable. The higher the number, the newer the generation. With each new generation, the maximum transmission speed and maximum power supply increases. Backward compatibility is ensured, i.e. older standards can also be used for new connections without any problems.
