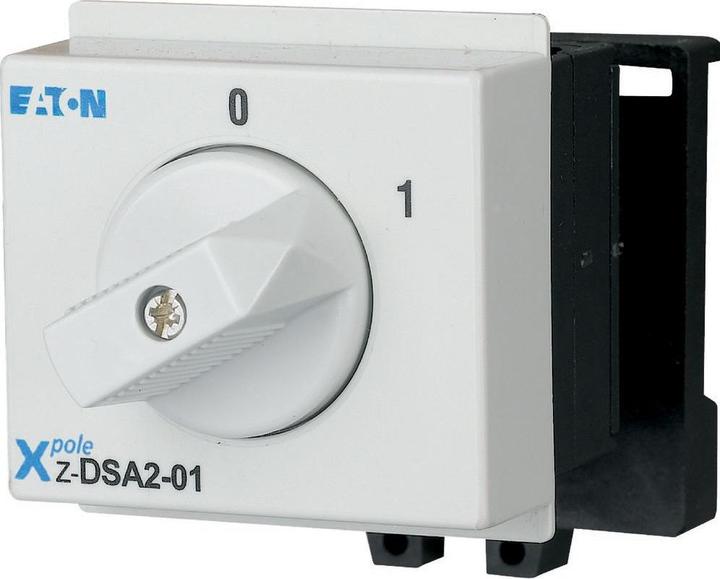

Eaton Rotary Switch Z-DSA2-01

Manufacturer: Eaton
Designation: Rotary switch 2p, OFF, 0 - 1
Type: Z-DSA2-01
Switching function: Disconnect switch
Number of contacts as make contacts: 2
Number of poles: 2
Rated current: 20 A
Rated voltage: 690 V
Min. rated voltage: 440 V
Rated breaking capacity: 0 kA
Short-circuit strength (Icw): 10 kA
Type of voltage: AC
With signal lamp: no
Color of the dome: other
Light source: other
Lamp base: other
Max. lamp power: 0 W
Width in pitch units: 3
Installation depth: 60 mm
Degree of protection (IP): IP20
Printing/marking: other
Forced disconnection (according to DIN VDE 0113): no

The rotary switches of the Z-DS series are designed in a modular fashion: The switch itself consists of the latching mechanism and the switching package. The switching cams (also called cam switches) are driven by a stable, torsion-resistant aluminum shaft. The switching package consists of one or more switching cells with one or two independent, double-breaking contacts. The connection of adjacent switch terminals, as required for the voltmeter switch Z-DSV, is integrated into the switch housing. This allows for unobstructed connection of the terminal wires.

Application: Suitable for practically any desired application, e.g., motor switches: garage doors, fans, electrically operated roller shutters, heating controls, lighting fixtures, instrument switches, various control purposes, etc. Design according to IEC 60947-3, IEC 60947-5-1, VDE 0660, EN 60947-3, SEV. EAN: 4015082488727.
