Phanteks PH-F120D30
120 mm, 1 xMore than 10 pieces in stock at supplier
Product details

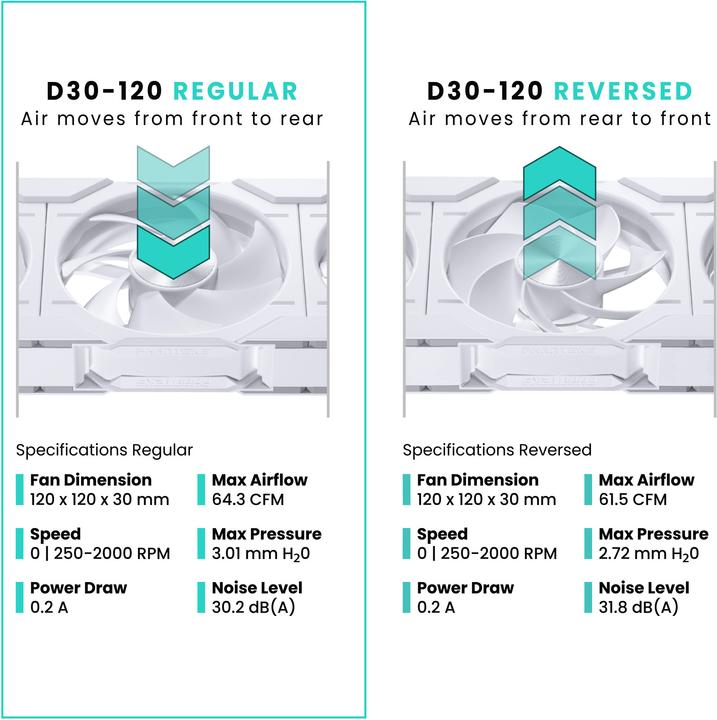

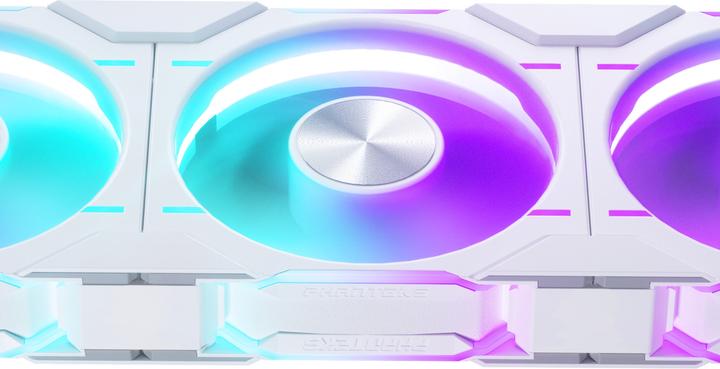

The Phanteks D30-120 is equipped with integrated D-RGB lighting throughout the frame and on the fins on all sides. Multiple D30-120 fan frames can be connected into one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds. The D30-120 combines premium D-RGB illumination with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, making it a true premium D-RGB fan for modern systems. The D30-120 is available in two airflow direction models: normal and reverse. This unique option enables the ultimate fan configuration for any system.
Fan dimension | 120 mm |
Items per sales unit | 1 x |
power connector | 3-pin, 4-pin PWM |
input voltage | 12 V |
Airflow | 109.24 m³/h |
Max. noise level | 31.80 dB |
LED colour | RGB |
Item number | 24924475 |
Manufacturer | Phanteks |
Category | PC fans |
Manufacturer no. | PH-F120D30_DRGB_PWM_WT01 |
Release date | 28/3/2023 |
Colour | White |
Exact colour description | White |
Fan dimension | 120 mm |
PC fan type | PWM fan, RGB Fan |
Fan type | Standard |
Max. Speed | 2 RPM |
Max. noise level | 31.80 dB |
Airflow | 109.24 m³/h |
Static pressure | 3.01 mmH20 |
LED colour | RGB |
Fan bearing type | Fluid Dynamic bearing |
power connector | 3-pin, 4-pin PWM |
Power consumption (active) | 1.80 W |
input voltage | 12 V |
Cable length | 0.70 m |
Electric current | 0.45 A |
Items per sales unit | 1 x |
Scope of delivery | 1x 4-pin and 3-pin extension cable, 1x connecting bridge, 1x connection clip, 1x corner connection cable, 1x D30-120 fan, 2x screw cover for the connecting bridge, 3x corner clip |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 30 mm |
Width | 120 mm |
Height | 120 mm |
Weight | 300 g |
Length | 20.50 cm |
Width | 12.90 cm |
Height | 3.50 cm |
Weight | 375 g |
Product Safety |
