Switching sequence: Pushbutton
Contact arrangement: Single pole double throw switch (SPDT)
Mounting type: Front panel mounting
Panel cutout size: 16 (Dia.) mm
Panel cutout diameter: 16 mm
Contact rated current: 3A @ 250V AC
Contact AC rated voltage: 250V
Rated voltage: 250V AC
Illuminated: Yes
LED color: Green
Operating temperature range: -20 to +55°C

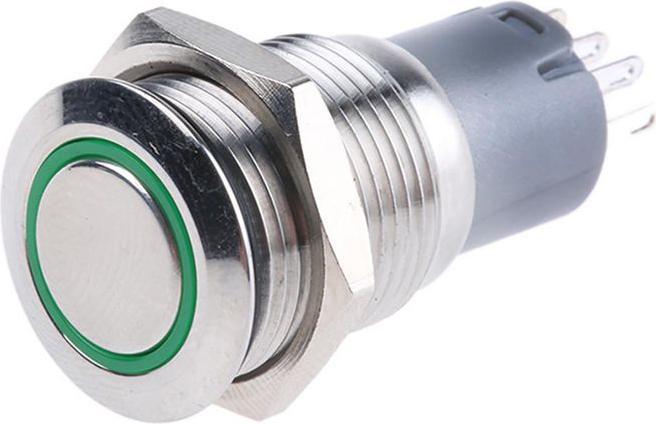

Vandal resistant pressure switches, 16 mm. Resistant to physical attack and suitable for all applications requiring resistance to water and dust ingress, such as public kiosks, outdoor blackboards, or open dashboards. Stainless steel construction with ring lighting in a choice of five colors. LED options with 12 or 24 V protection, IP67 above the panel.
