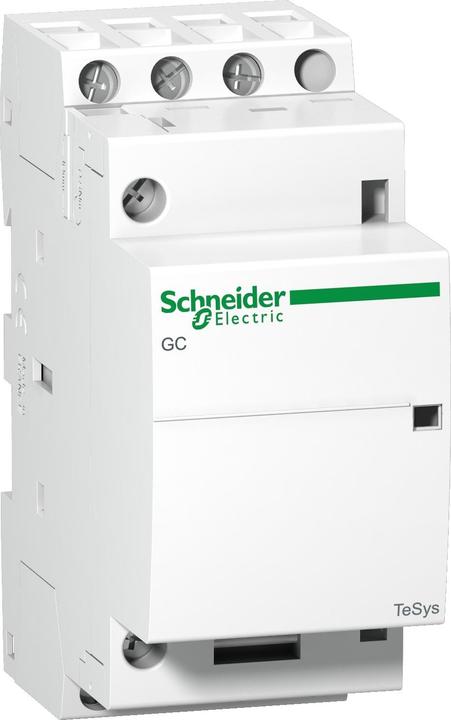

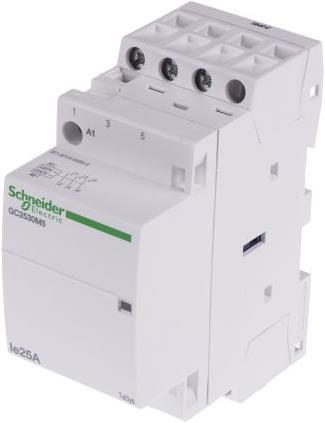

Schneider Electric Installation contactor 230V 25A
Price in EUR including VAT
free shipping
Area: TeSys GC
Series: GC25
Number of poles: 3
Coil voltage: 240 Vac
Rated contact current: 25 A
Rated contact voltage: 415 Vac
Contact configuration: 3 normally open
Number of auxiliary contacts: 1
Connection type: Wire connection
Width: 35 mm
Maximum operating temperature: +50 °C
Modular contactors from Schneider Electric TeSys GC. The modular contactors TeSys GC from Schneider Electric can switch single-phase, three-phase, or four-phase loads. The TeSys GC series contactors are safe, easy to use, and simple to install. These devices, with their compact dimensions, are suitable for a wide range of applications.
Features and benefits:
What do the utilization categories AC1 and AC3 mean for TeSys contactors?
Contactor utilization categories define the power generation and disconnection values based on the type of load being controlled and the operating cycle conditions.
Are the contactors in the TeSys GC series contactors with double pole separation?
Yes, the TeSys GC series uses a linear translational movement that results in double pole separation.
input voltage | 250 V |
Scope of delivery | 240V50, Installation contactor 3p 25A 3S 220 |
Output voltage | 220 V |
Output current type | AC |
Electric current output | 25 A |
Relay type | Installation contactor |
Item number | 9723095 |
Manufacturer | Schneider Electric |
Category | Relays |
Manufacturer no. | GC2530M5 |
Release date | 24/9/2018 |
Relay type | Installation contactor |
input voltage | 250 V |
Output voltage | 220 V |
Electric current output | 25 A |
Output current type | AC |
Switching function | Normally open |
Number of closers | 3 x |
Number of poles | 3 x |
Max. Switching capacity | 2.80 kW |
Manufacturer Type | GC2530M5 |
Smart Home | Compatible |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 240V50, Installation contactor 3p 25A 3S 220 |
Width | 62.50 mm |
Product Safety |
