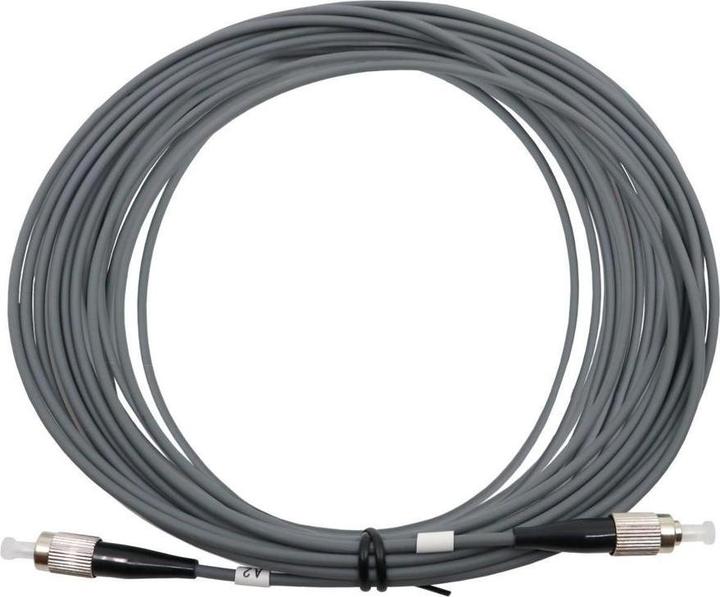

Pre-terminated single-mode (SM) fiber optic patch cable with FC/UPC connectors for connecting units in an optical satellite IF installation. Equipped with a shielded stainless steel tube around the fiber, as well as an aramid braid strain relief and a UV-resistant LSFH jacket. Ideal for outdoor use and underground installation, as it is specifically designed to withstand harsh weather conditions. Delivered in individual packaging.

Highlights

• Low attenuation
• Aramid fiber protection and flexible stainless steel tube
• Excellent durability: The flexible stainless steel shielding provides outstanding mechanical resistance and protects the fiber against all types of physical stress: impacts, pulling, stepping...
• Fiber type G.657A2
• LSFH cover with UV protection, gray
• FC/UPC connectors
• Available in various lengths

Specifications

• Fiber types: Singlemode (ITU-T-G.657A2)
• OS1
• Fiber core diameter μm: 9
• Fiber cladding diameter μm: 125
• Coating diameter at fiber μm: 250
• Cable structure: Solid core
• Fiber structure diameter mm: 0.8
• Outer jacket diameter mm: 3
• Outer jacket material: LSFH
• Gel for protection: No
• Attenuation 1310nm dB/km: < 0.4
• Attenuation 1490nm dB/km: < 0.4
• Attenuation 1550nm dB/km: < 0.3
• Insertion loss connector 1 dB: < 0.3
• Insertion loss connector 2 dB: < 0.3
• Return loss connector 1 dB: > 50
• Return loss connector 2 dB: > 50
• Optical connector 1 type: FC
• Polishing type (Optical connector 1): UPC
• Optical connector 2 type: FC
• Polishing type (Optical connector 2): UPC
• Short tensile strength N: 440
• Strength enhancement element: Aramid fibers and flexible stainless steel tube
• Short break (@100mm) N: 1000
• Minimum propagation speed mm: 30
• Operating temperature °C: -20 ... 70
• Package: 1 piece
• Bucket: 50 pieces

Physical data

• Net weight: 267 g
• Gross weight: 267 g
• Width: 9 mm
• Height: 20.114 mm.
