Best selling Antennas + Satellite cables from Televes

On this page you’ll find a ranking of the best Antennas + Satellite cables from Televes. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Televes FUP0729 Coaxial plug F-type

Professional F compression connector. Can be used universally for cables with an outer diameter of 4.3 mm to 4.9 mm. This flexibility is particularly important when temperature fluctuations affect the outer diameter. Excellent shielding properties. Universal: suitable for a wide range of cable types. Excellent shielding against interference. Ensures a firm and stable connection. Main features: Connection type F-type, connection 1 F, connection 2 F.

Televes FUP0729 Coaxial plug F-type (Plugs and connectors)
Antenna + Satellite cables
−82%
only 3 of 3 remaining on sale
EUR0,91 was EUR5,–

Televes FUP0729 Coaxial plug F-type

Plugs and connectors

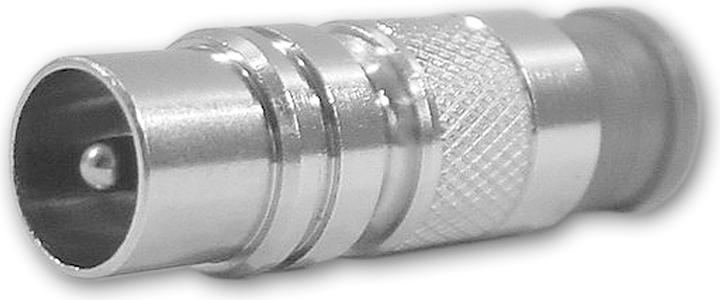

2. Televes Preisner IPS2000 IEC silver cable interface/adapter

Professional IEC compression connector with a very high shielding rating. Plastic box with 25 connectors.

Highlights
- Excellent shielding against interference
- Ensures a firm and stable connection

Features
- Straight design
- Installation with compression pliers.

Televes Preisner IPS2000 IEC silver cable interface/adapter (Antenna cable)
Antenna + Satellite cables
Quantity discount
EUR8,72 per piece for 2 units

Televes Preisner IPS2000 IEC silver cable interface/adapter

Antenna cable

3. Televes IEC right angle plug screwed cast KSW2000N

Professional IEC molded angle connectors with a very high shielding level (Class A+). Compatible with cable types: SK2000plus, SK2003plus, SK110plus, SK100plus, SK6Fplus, and CXT1 SK0837plus, SK0837/2plus.

Highlights
- Excellent shielding: Class A+
- Compatible with many cable types
- Easy installation on the cable: reusable
- Simple yet reliable and secure installation

Features
- Angled design
- Installation without additional tools

Good to know

Professional EasyF connectors

The PRO EasyF connectors guarantee A+ shielding and simplify installation thanks to a single clamping screw that ensures significantly better pressure on the inner conductor than the connection provided by crimp connectors. The molded housing offers exceptional durability, proven by countless installations where PRO connectors from previous generations were used.

The contribution of the coaxial cable's properties to the installation largely depends on the quality of the connector and its installation. Using a highly shielded cable alone is not sufficient if the connector does not maintain at least the same quality. EasyF connectors are an effective and efficient alternative to compression connectors. One of the main advantages of the EasyF connector is the quick installation. Additionally, no special tools are required to achieve shielding comparable to that of compression connectors.

Advantages at a glance

Easy and quick installation:
- Only one fastening screw
- Always visible connection
- No more poor connections
- No removable parts

Secure connection:
- Short installation time and low costs
- Ensures a reliable connection without additional rework.

Televes IEC right angle plug screwed cast KSW2000N (105 dB)
Antenna + Satellite cables
Quantity discount
EUR8,06 per piece for 2 units

Televes IEC right angle plug screwed cast KSW2000N

105 dB

4. Televes T0X housing

The T0X enclosure from Televes is a robust and functional solution for housing power supplies and up to four UGH4 modules. Made from high-quality plastic, this enclosure features a lockable design that ensures security and protection for the installed components. The integrated temperature-controlled fan unit provides optimal ventilation, extending the lifespan of the devices. The enclosure is designed for wall mounting, allowing for easy installation. With an IP20 protection rating, it is ideal for indoor use. The thoughtful design and ability to accommodate multiple modules make the T0X enclosure a practical choice for professional applications in antenna technology.

- Lockable enclosure with integrated fan unit
- Suitable for mounting up to 4 UGH4 modules
- Wall mounting with screw-back for easy installation
- Made from durable plastic
- IP20 protection rating for indoor use.

5. Televes CXT1IC

The CXT1IC antenna cable from Televes is a high-quality coaxial cable specifically designed for use with antennas. With a length of 100 meters, it provides ample flexibility for various installations. The cable features a copper inner conductor that ensures optimal signal transmission. The double shielding made of aluminum and a special screening film guarantees high protection against interference, enhancing signal quality. The outer PVC jacket protects the cable from environmental influences and ensures a long lifespan. This cable meets Class A requirements, making it a reliable choice for demanding applications.

- Double shielding for high interference protection
- Copper inner conductor for optimal signal transmission
- Robust PVC outer jacket for durability.

6. Televes Pigtail end Fibre optics SC/APC 1 m Indoor 232603

Single-mode (SM) fiber optic pigtail patch cable. One end is pre-terminated with an SC/APC connector, while the other end is without a connector. This allows for easy connection of the pigtail to a fiber optic cable. The 900 μm jacket is of the LSFH type and is recommended for indoor use. The cable features a short sleeve at one end, which facilitates installation in flush-mounted connection boxes and prevents increased attenuation due to unwanted bending. Additionally, the short sleeve makes it easier to insert the patch cable into conduits, reduces the space required for the connection, and results in a smaller bending radius.

Highlights

- Fiber type ITU-T G.657.A2
- LSFH jacket, white
- SC/APC connectors
- 1 m long

Technical Specifications

Fiber types
- Single-mode (ITU-T G.657A2)
- OS1
Fiber core diameter
- 9 μm
Fiber cladding diameter
- 125 μm
Cable structure
- Solid core
Outer jacket diameter
- 900 μm
Outer jacket material
- LSFH
Attenuation at 1310 nm Max
- 0.5 dB/km
Attenuation at 1490 nm Max
- 0.5 dB/km
Attenuation at 1550 nm Max
- 0.5 dB/km
Max. insertion loss
- 0.5 dB
Minimum return loss
- 60 dB
Optical connector type
- SC
Polish type (Optical connector)
- APC
Operating temperature
- -20 to 70 °C.

7. Televes Splitter 4-fold 12-15dB AZ415F

The Televes AZ415F 4-way splitter is a high-quality solution for distributing CATV signals. It is specifically designed for indoor installation and offers excellent shielding to minimize interference. With its isolated outputs, this splitter ensures stable signal transmission. The frequency range of 5 to 1220 MHz makes it compatible with DOCSIS 3.1, making it an ideal choice for modern cable networks. The F-connectors allow for easy integration into existing systems. The splitter is made of robust metal and features a grounding screw for added safety. With a pass-through attenuation of 3.5 dB and a participant attenuation of 12.5 to 15.5 dB, it ensures efficient signal distribution.

- Isolated outputs for stable signal transmission
- Excellent shielding to minimize interference
- Grounding screw for added safety
- Compatible with DOCSIS 3.1 for modern cable networks
- Frequency range of 5 to 1220 MHz.

8. Televes SAV 815FZ Distributor

8-way splitter with F connectors for SMATV installations. Due to the smaller electronic components, it has low insertion losses, which improves its electrical performance. Additionally, its Zamak housing provides good shielding. It is designed for indoor installation, suitable for wall, mounting plates, or standard DIN rail mounting.

Highlights
- Flexibility in installation: can be screwed to the wall, mounted on plates with nuts at the connections, or installed on a standard DIN rail (with adapter No. 519901)
- Convenient cable connection thanks to a 10º angle of the F connectors towards the installation wall
- Space optimization in enclosures and cabinets: inputs and outputs are always on the same side
- Better organization of the installation: allows cable routing through the back
- Elements of the F series can be connected with the grounding screw, requiring only a single grounding cable
- Signal level is maintained at the sockets even with long cables, thanks to improved response characteristics of the flatness
- Excellent reliability: robotic manufacturing with next-generation microcomponents
- 100% European design, quality, and manufacturing

Features
- Low insertion losses
- Good shielding (Class A), made of Zamak
- F connectors with longer threads to facilitate and secure installation on a mounting plate
- Indoor installation
- Includes grounding screw
- DC pass from outputs to input

Technical Data
Frequency range
- MHz 5 ... 2400
Number of outputs
- 8
Insertion loss TERR
- dB 15
Isolation TERR
- dB > 20
Insertion loss SAT
- dB 14
Isolation SAT
- dB > 20
Connector type
- F socket
Max. voltage
- V 24
Max. current consumption
- mA 350
DC pass
- Out.→In.

9. Televes Easy-F-Tap 8f. 16dB 5-2400Mhz EFA816

Simple and time-saving assembly, improved technical features and size of components, reduced dimensions W x H x D 81 x 55.4 x 12.5 EFA816.

10. Televes Optische Box

The Televes Optical Box OB4BLC30MINI is a high-quality solution for the distribution of optical signals. It features four outputs and is equipped with a 30-meter long cable that ensures a reliable connection. The box includes a splice holder that facilitates installation and maintenance. It is compatible with various splice protection types and offers a compact design that can be easily integrated into different environments. The use of fiber optic as the inner conductor material ensures high signal quality and durability. This Optical Box is ideal for applications where efficient and stable signal distribution is required.

- Four outputs for flexible signal distribution
- Includes a 30-meter long cable for extended range
- Suitable for various splice protection types
- Compact dimensions for easy integration.
