Best selling PoE injectors from MicroConnect
This page always stays fresh and updates automatically.
1. MicroConnect 60W 802.3af/at PoE Injector
The POEINJ-60W is a Gigabit PoE (Power over Ethernet) device with a single port that includes two RJ45 ports: one for Ethernet data transmission and another for integrated data and power output. Since the power supply does not include a switch function for data, it must be used in conjunction with a network switch. This device combines data from the network switch with power and transmits both over the network cable to the remote powered terminal. It resolves layout constraints caused by the installation of power lines. The device can provide PoE power for Ethernet devices that comply with the international standard IEEE 802.3af/at PoE++, including routers, switches, wireless access points, VoIP phones, industrial network terminals, and network cameras. It offers efficient engineering solutions for locations where there is no power supply at the remote end or where the use of Ethernet cable power increases system reliability and simplifies device installation.

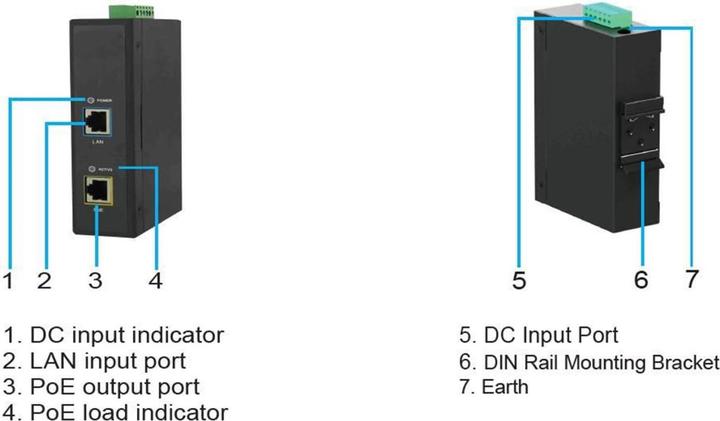

2. MicroConnect 30W 802.3af/at PoE Injector (TP-DCDC-1248GD-HP)
POEINJ-30W-IND is a single industrial boost PoE injector. It delivers 55 Vdc, 0.55 A of power for remote-operated devices over 2 pairs of output with 6 kV (10/700 µs) surge protection. It supports data rates of 10/100/1000 and works with 30 W PoE-powered devices such as wireless access points, network cameras, VoIP phones, and other high-performance Ethernet terminals. It fully complies with the IEEE802.3at standard and remains compatible with all IEEE802.3af compliant devices.
POEINJ-30W-IND is designed for indoor use. It operates with an input voltage of 12-48 Vdc and functions at temperatures ranging from -40 °C to 65 °C. It features a detection chip that identifies and classifies powered devices before supplying power. It only delivers power when a compliant powered device is detected. The effective range is 100 m over Cat5e/Cat6 cables. This model comes with a standard DIN rail mounting bracket that easily fits into the rail.
PoE injector
EUR129,53
MicroConnect 30W 802.3af/at PoE Injector (TP-DCDC-1248GD-HP)
802.3af (PoE), 802.3at (PoE+), 30 W

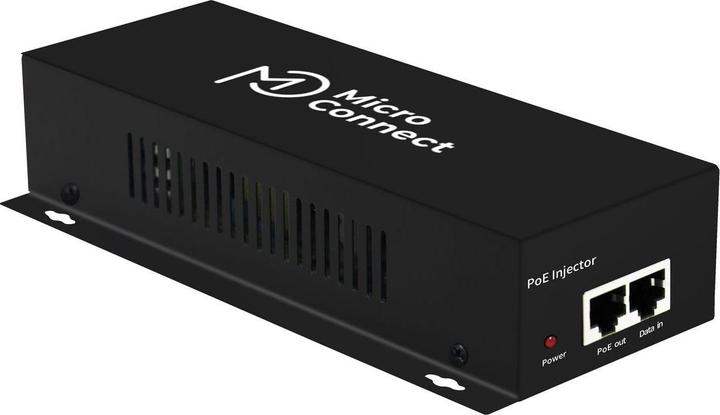

3. MicroConnect POEINJ-95W-UK PoE Adapter Fast Ethernet
The POEINJ-95W is a Gigabit PoE (Power over Ethernet) device with a single port and two RJ45 connectors: one for Ethernet data transmission and another for integrated data and power output. Since the power supply does not have data switching functionality, it must work in conjunction with a network switch. It combines the data from the network switch with the power supply and transmits both over the network cable to the remote powered terminal. This can counteract layout constraints caused by engineering power lines. The device can provide PoE power for Ethernet devices that comply with the IEEE802.3af/at PoE++ standard, such as routers, switches, wireless access points, VoIP phones, industrial network phones, and network cameras. It offers efficient engineering solutions for locations where no power supply is available at the remote end or where the use of Ethernet cable power increases system reliability and simplifies device installation.

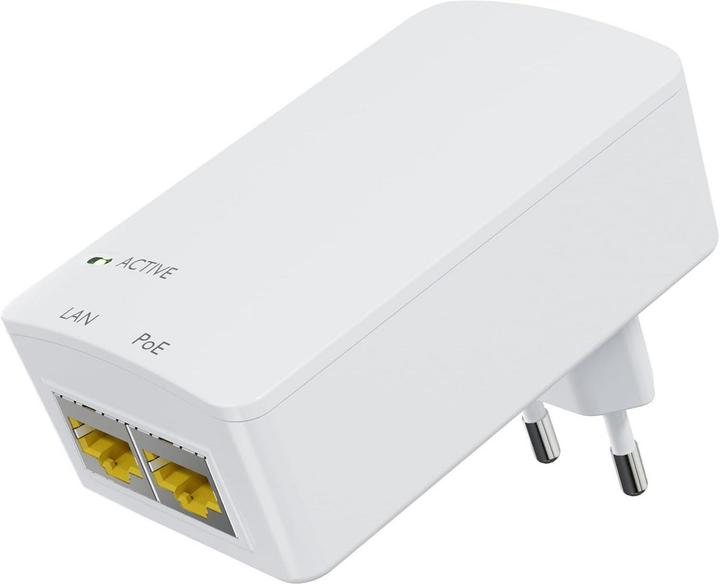

4. MicroConnect PoE Injector 48V 15.4W EU Plug
The MC-POEINJ-EU is a single-port Power over Ethernet (PoE) injector designed for European electrical standards. It delivers reliable 48V DC power over Ethernet cables to compatible powered devices (PDs) such as wireless access points, IP cameras, and VoIP phones. Supporting both 10/100 Base-T and Gigabit networks, this injector provides an efficient and cost-effective power solution that meets the IEEE 802.3af PoE standard. Engineered for plug-and-play indoor use, the MC-POEINJ-EU features a compact design, integrated PD detection, and automatic classification to ensure safe operation. With an input range of 100–240V AC and a maximum transmission distance of 100 meters, it’s ideal for extending network power where outlets are limited.
5. MicroConnect POEINJ-30W-UK PoE Adapter 10 Gigabit Ethernet,100 Gigabit Ethernet 48 V
100-220V, 50-60Hz, 52V DC, Maximum speed rate: 1000Mbps, Transmission distance: 100m. The POEINJ-30W is a single-port Gigabit PoE (Power over Ethernet) device with two RJ45 ports, one port for the Ethernet data input and another port for the integrated data and power supply output. Since the power supply itself does not have the data switch function, it needs to work together with a network switch. It mixes the data of the network switch with the power supply and transmits the data and the power supply to the remote powered terminal through the network cable. This can solve the layout restrictions due to the engineering power line. The device can provide PoE power supply to those Ethernet devices conforming to the IEEE802.3af/at international standard, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras. It provides efficient engineering solutions for locations where power is not available at the remote end or where the use of Ethernet cable power increases system reliability and simplifies equipment installation.
PoE injector
EUR27,90
MicroConnect POEINJ-30W-UK PoE Adapter 10 Gigabit Ethernet,100 Gigabit Ethernet 48 V
802.3af (PoE), 30 W
6. MicroConnect 30W 802.3af/at PoE Injector
100-220V, 50-60Hz, 52V DC, maximum speed: 1000Mbps, transmission distance: 100m. The POEINJ-30W is a Gigabit PoE (Power over Ethernet) device with a single port and two RJ45 ports. One port is used for Ethernet data input, while the other port is used for integrated data and power output. Since the power supply itself does not have data switching functionality, it must work in conjunction with a network switch. It combines the data from the network switch with the power supply and transmits both data and power over the network cable to the remote powered device. This can resolve layout constraints due to electrical supply lines. The device can provide PoE power for Ethernet devices that comply with the international standard IEEE802.3af/at, such as routers, switches, wireless APs, VoIP phones, industrial network terminals, and network cameras. It offers efficient engineering solutions for locations where no power supply is available at the remote end or where the use of Ethernet cable power increases system reliability and simplifies device installation.
7. MicroConnect 15.4W 802.3af PoE Injector
100-220V, 50-60Hz, 48V DC, maximum speed: 1000Mbps, transmission distance: 100m. The POEINJ-15W is a single Gigabit PoE (Power over Ethernet) device with two RJ45 ports, one port for Ethernet data input and another port for integrated data and power output. Since the power supply itself does not have data switching functionality, it must work in conjunction with a network switch. It combines the data from the network switch with the power supply and transmits both data and power over the network cable to the remote powered terminal. This can resolve layout constraints due to technical power lines. The device can provide PoE power for Ethernet devices that comply with the international standard IEEE802.3af, such as routers, switches, wireless APs, VoIP phones, industrial network phones, and network cameras. It offers efficient technical solutions for locations where no power supply is available at the remote end or where using Ethernet cable power increases system reliability and simplifies device installation.
8. MicroConnect 60W PoE adapter IEEE802.3AF
The MC-POEADAPTER-60W-USB-C is a power adapter designed according to the IEEE802.3at standard. The output features a standard Type-C interface and provides power supply options of 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/3A, along with internet data transmission at 100Mbps.
This adapter is compact and housed in a white plastic casing, making it practical for desk use or for a fixed installation that can be opened when needed. The input and output voltage range of the device does not exceed the safe voltage of 57V, eliminating the need for electrical protection. The product has passed EU-CE certification.
The device is intended for use in a wired network environment that supports IEEE802.3bt and allows for plug-and-play functionality without configuration. It supports the PD3.0 fast charging protocol, providing continuous power supply and a stable network connection for energy-efficient mobile devices such as smartphones, gaming consoles, and tablet computers.
9. MicroConnect 60W 802.3af/at PoE Injector UK
The POEINJ-60W is a Gigabit PoE (Power over Ethernet) device with a single port and two RJ45 connectors: one for Ethernet data transmission and another for integrated data and power output. Since the power supply does not include a switch function for data, it must be used in conjunction with a network switch. This device combines data from the network switch with power and transmits both over the network cable to the remote powered terminal. It resolves layout constraints caused by electrical engineering wiring. The device can provide PoE power for Ethernet devices that comply with the international standard IEEE 802.3af/at PoE++, including routers, switches, wireless access points, VoIP phones, industrial network participants, and network cameras. It offers efficient technical solutions for locations where no power supply is available at the remote end or where the use of Ethernet cable power increases system reliability and simplifies device installation.
10. MicroConnect 15.4W 802.3af PoE Injector UK
100-220V, 50-60Hz, 48V DC, Maximum speed rate: 1000Mbps, Transmission distance: 100m. The POEINJ-15W is a single-port Gigabit PoE (Power over Ethernet) device with two RJ45 ports: one port for Ethernet data input and another port for integrated data and power supply output. Since the power supply itself does not have data switch functionality, it needs to work together with a network switch. It combines the data from the network switch with the power supply and transmits both to the remote powered terminal through the network cable. This solution addresses layout restrictions due to engineering power lines. The device can provide PoE power supply to Ethernet devices conforming to the IEEE802.3af international standard, such as routers, switches, wireless access points, VoIP phones, industrial network terminals, and network cameras. It offers efficient engineering solutions for locations where power is not available at the remote end or where the use of Ethernet cable power increases system reliability and simplifies equipment installation.
