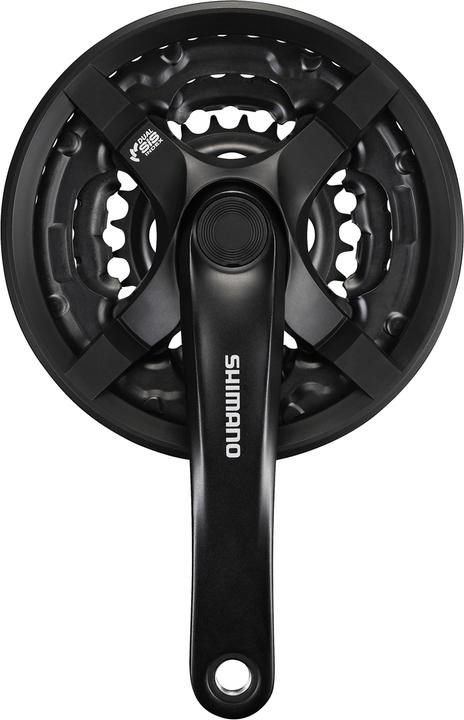

Shimano FC-TY501 crank set 6/7/8-speed 42-34-24 T. with chain guard ring

175 mm
Price in EUR including VAT
1Ratings
Delivered between Sat, 5/7 and Wed, 9/7
More than 10 items in stock at supplier
Free shipping starting at 30,–

Product details

This extremely affordable crank from the Shimano Tourney series is ideally suited for MTB and trekking use due to its gearing and robustness. It features three chainrings for 6-/7-/8-speed chains and a solid square taper interface (bottom bracket sold separately). The crank is also compatible with a chain guard.

Intended use: City

Details:

  • Steel chainrings
  • Housing width: 68/73 mm

Scope of delivery:

  • FC-TY501 crank with chainrings, without bottom bracket

Chainrings:

  • Number of chainrings: 3
  • Gearing: 42-34-24 teeth

Crank:

  • Rear shifting compatibility: 8-speed
  • Design: 4-arm
  • Axle interface: square taper
  • Bolt circle diameter: 104/64 mm
  • Bolt circle type: standard
  • Chainline: 47.5 mm

Chain guard:

  • Compatible with chain guard
  • Chain guard ring.

Key specifications

Number of chainrings
3 x
Item number
6854814

General information

Manufacturer
Shimano
Category
Bike cranks
Manufacturer no.
EFCTY501E244CLB
Release date
18/10/2017

Colour

Colour
Black
Exact colour description
Black

Material

Material group
Metal
Material
Niitatut, Steel, Teräs

Crank properties

Bike area of use
Mountain bike
Number of chainrings
3 x
Number of teeth
42 + 34 + 24
Chainring mount
4-arm
Crank model
FC-TY501
Additional properties
Trouser protector

Compatibility

Cassette compatibility
8-speed
Type of bottom bracket
Square-taper
Bolt circle
64 mm
Bolt circle type
Standard
Chainline
47.50 mm
Box width
68 mm, 73 mm

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
FC-TY501 crank with chainrings, Without bottom bracket

Product dimensions

Length
175 mm

Package dimensions

Length
30.60 cm
Width
27.80 cm
Height
5.40 cm
Weight
1.32 kg
