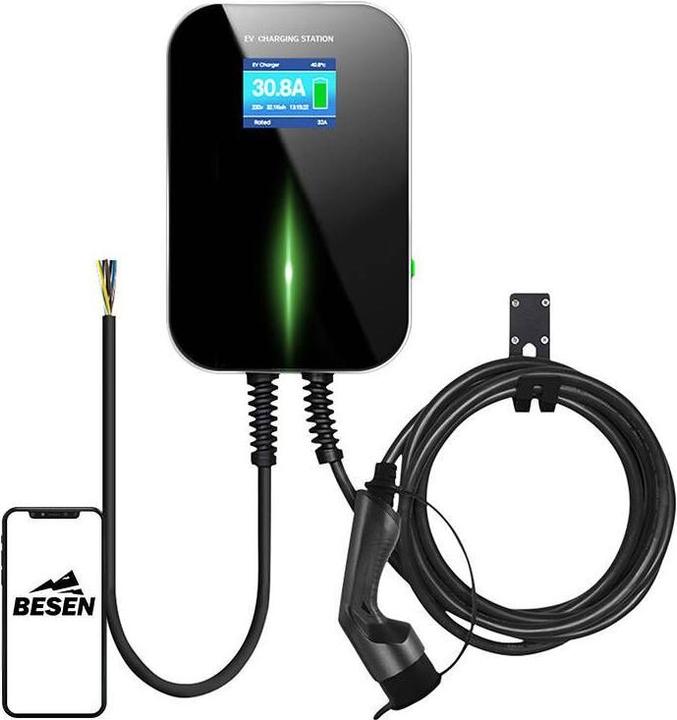

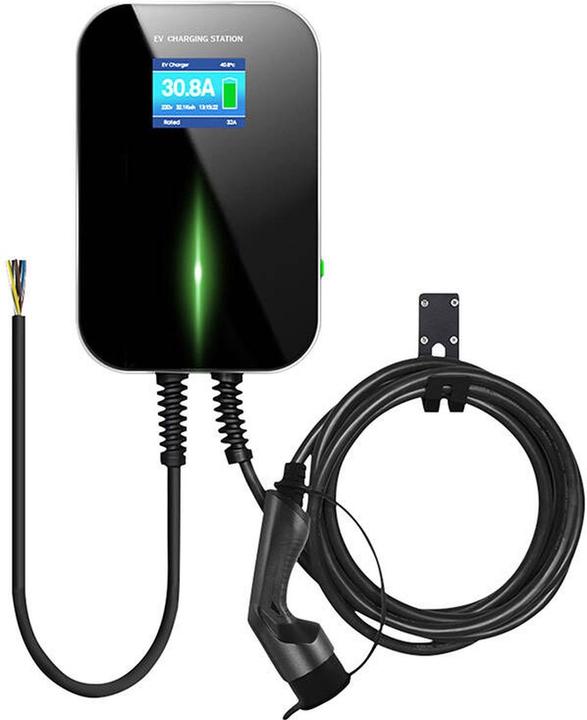

Besen BS20 22kW Wall Charger for Electric Vehicles

The Besen BS20 is an advanced charger for electric vehicles designed for a wide range of applications, from private garages to expansive commercial parking lots. With an output power of up to 7.2 kW in single-phase mode and 22 kW in three-phase mode, the charger enables fast and efficient charging of various vehicle types, including private cars, electric school buses, and ambulances. Thanks to its various safety features and thoughtful design, it can be used conveniently and safely. Additionally, you can manage the operation of the BS20 through a dedicated app.

Technical Specifications

Manufacturer: Besen

Model: BS20

Input Voltage / Output Voltage: AC 230 V / 400 V

Input Frequency: 47 ~ 63 Hz

Output Power: 7.2 kW (single-phase) / 22 kW (three-phase)

Max. Output Current: 32A

Connector Type: SAE J1772, IEC 62196-2, GB/T

Protection Rating: IP66

Impact Protection: IK10

Safety Features: Under-voltage protection, over-voltage protection, short-circuit protection, overheating protection, lightning protection

Residual Current Device: Type A, Type A+6mA DC

Ambient Temperature: -25°C to 55°C

Humidity: 0-95% (non-condensing)

Maximum Altitude: <2000 m

Standby Power Consumption: <8 W

Certifications: CE, FCC, CSA, RoHS, ETL

Current Adjustment: Yes

Ethernet/WLAN/4G/Bluetooth: Optional

LED Display: Yes

LCD Display: 3.5-inch color display

Mounting Method: Wall-mounted, floor-mounted

Dimensions: 295 x 195 x 65 mm

Weight: 6-8 kg

Application: EVSEMaster.
