Busch-Jaeger Central Plate aws 2562-214

Manufacturer: Busch-Jaeger
Description: Central plate aws for information light
Type: 2562-214
Composition: Central plate
Socket: none
With light source: no
Light source: other
With flashing light: no
With fixed symbol/print: no
With interchangeable symbol: yes
Used as a button: no
Mounting type: flush-mounted
Mounting method: snap-in
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Color: alpine white
RAL number (similar): 9010
Transparent: no
Color of light source: other
Suitable for protection class (IP): IP20
Max. lamp power: 5 W

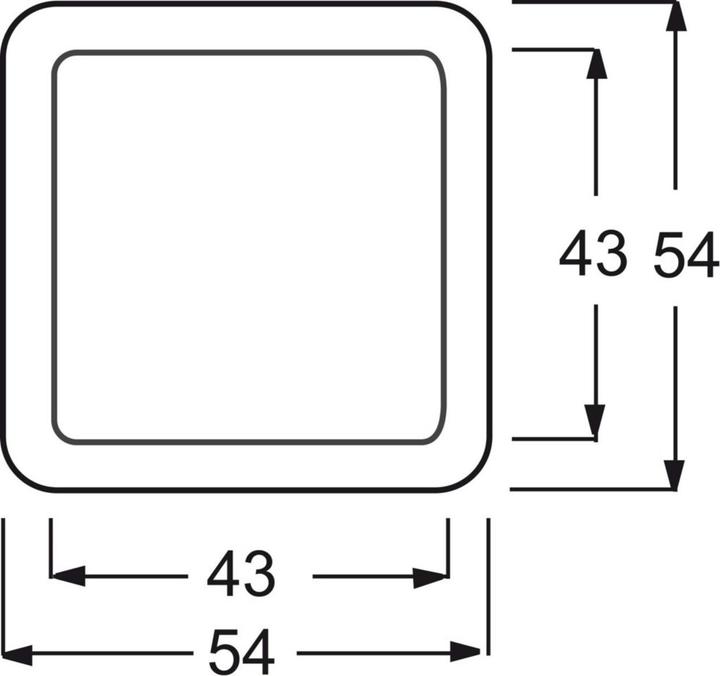

Device width: 54 mm
Device height: 54 mm
Device depth: 10 mm
Min. depth of device box: 40 mm

Busch-Jaeger Central Plate aws 2562-214: additional details
As a cover for flush-mounted information light. For use with 2062 U and Reflex SI/SI Linear. Size of the info field 43 x 43 mm. The cover includes 46 different inscriptions and symbols.
EAN: 4011395067499.
