Busch-Jaeger Cover frame
More than 10 pieces in stock at supplier
Colour
- TitaniumEUR22,14
- Black RAL 9005EUR51,11

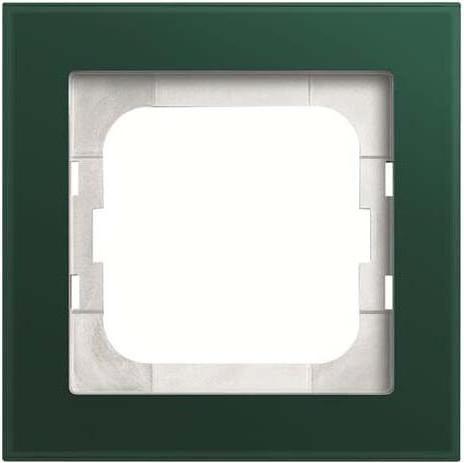

- GreenEUR60,84
- GreyEUR36,03
- Matt blackEUR20,91

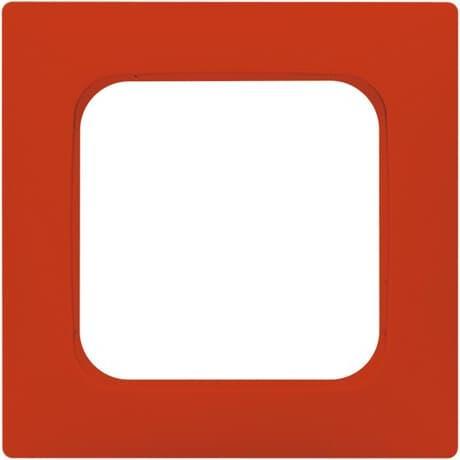

- RAL3020EUR12,60
Number of inlets
Product details
Busch-Jaeger Cover Frame 1721-276
Manufacturer: Busch-Jaeger
Description: Titanium cover frame
Type: 1721-276
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized
Surface finish: matte
Color: Titanium
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 91 mm
Height: 91 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Drilling diameter (opening): 71 mm
Busch-Jaeger Cover Frame 1721-276: additional details
Cover frame with real metal surface. Recommendation: Protect sensitive real materials from increased mechanical stress!
EAN: 4011395261132.
Colour | Silver |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 91 mm |
Item number | 20344739 |
Manufacturer | Busch-Jaeger |
Category | Accessories switch programme |
Manufacturer no. | 2CKA001754A4693 |
Release date | 29/3/2022 |
Colour | Silver |
Exact colour description | Titanium |
Material group | Metal |
Material | Aluminium |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Adhesive |
Mounting direction | Horizontal, Vertical |
Additional properties | Antibacterial, Halogen-free, Impact resistance |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 11 mm |
Width | 91 mm |
Height | 91 mm |
Diameter | 71 mm |
Weight | 31.50 g |
Length | 14 cm |
Width | 10 cm |
Height | 2 cm |
Weight | 53 g |
