Busch-Jaeger Frame
More than 10 pieces in stock at supplier
Product details

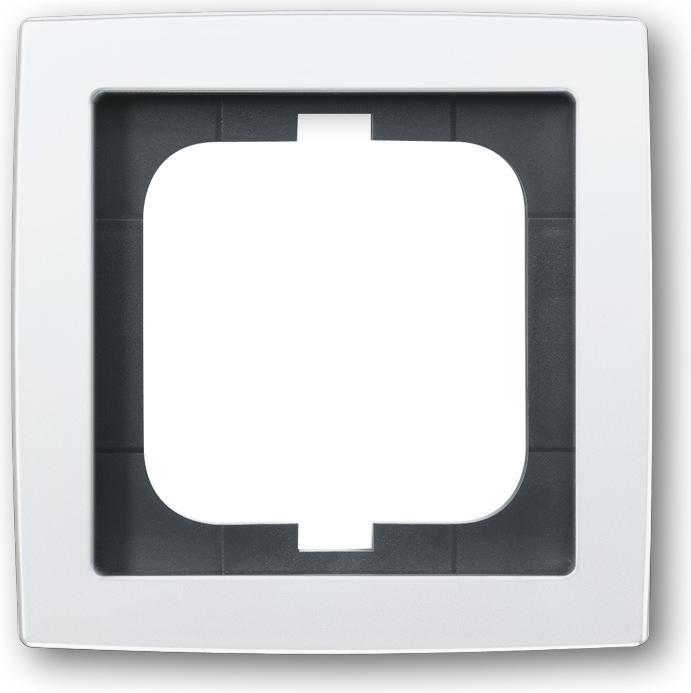

Busch-Jaeger Frame Single 1721-84
Manufacturer: Busch-Jaeger
Description: Single frame in studio white, solo
Type: 1721-84
Number of units: 1
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 1
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: studio white
RAL number (similar): 9016
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: Clamp mounting

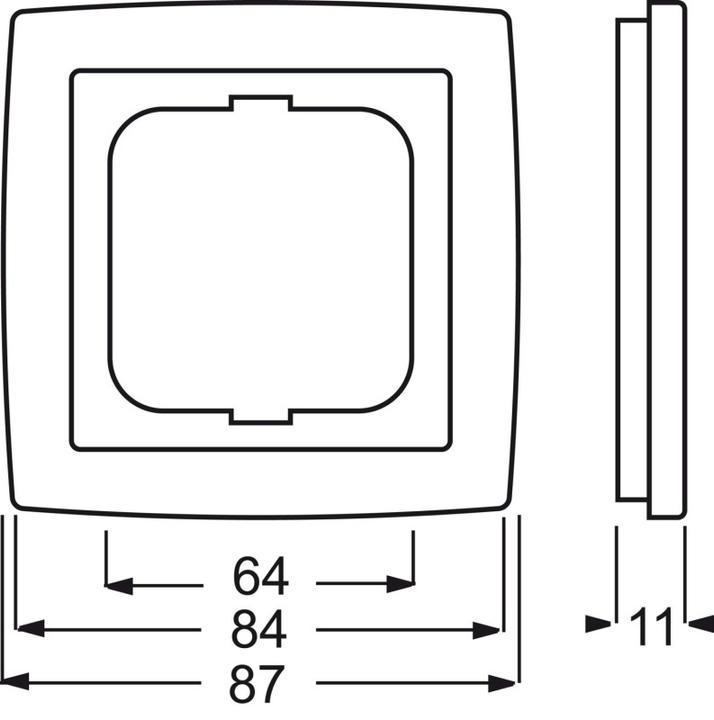

Width: 87 mm
Height: 87 mm
Depth: 11 mm
Installation width: 63 mm
Installation height: 63 mm
Diameter of hole (opening): 71 mm
Busch-Jaeger Frame Single 1721-84: additional details
For covering switches, push buttons, and sockets. Suitable for channel installations with 80 mm channel coverage.
Colour | White |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 87 mm |
Item number | 17821256 |
Manufacturer | Busch-Jaeger |
Category | Accessories switch programme |
Manufacturer no. | 2CKA001754A4109 |
Release date | 10/12/2021 |
External links |
Colour | White |
Exact colour description | studioweiss |
Material group | Plastic |
Material | Plastic |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Adhesive |
Mounting direction | Horizontal |
Series | Standard Due |
Additional properties | Antibacterial |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 11 mm |
Width | 87 mm |
Height | 87 mm |
Diameter | 71 mm |
Weight | 1000 g |
